On-Board System Readiness Tests Access Procedure

1. Perform the necessary vehicle preparation and visual inspection. Hook-up the WDS or equivalent Tester to the vehicle.

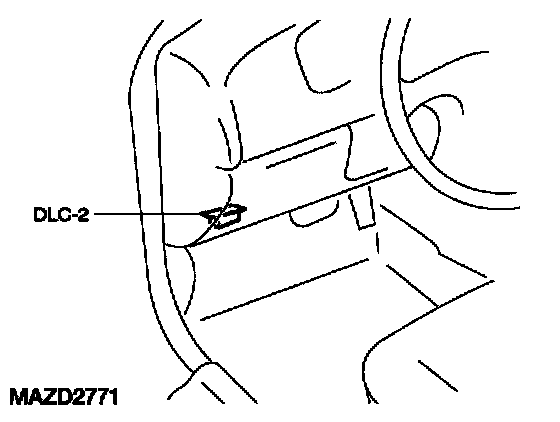

2. Connect the WDS or equivalent to the vehicle DLC-2 16-pin connector located on the left side of the center console.
3. Monitor the OBD II Systems operating status by WDS or equivalent.
