Manual Transmission/Transaxle

Manual Transaxle

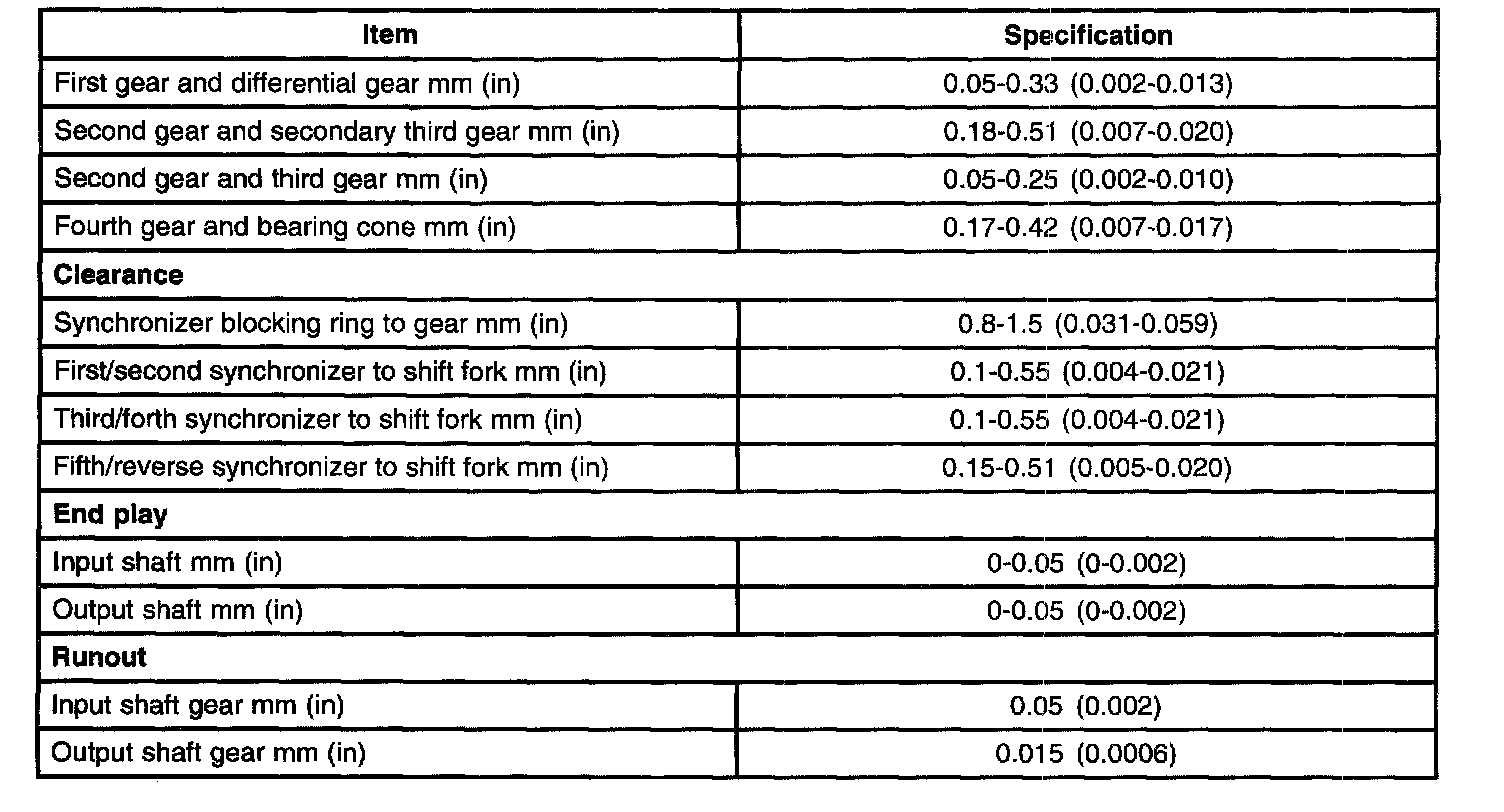

First gear and differential gear 0.05 - 0.33 mm (0.002 - 0.013 in)
Second gear and secondary third gear 0.18 - 0.51 mm (0.007 - 0.020 in)
Second gear and third gear 0.05 - 0.25 mm (0.002 - 0.010 in)
Fourth gear and bearing cone 0.17 - 0.42 mm (0.007 - 0.017 in)
Synchronizer blocking ring to gear 0.8 - 1.5 mm (0.031 - 0.059 in)
First/second synchronizer to shift fork 0.1 - 0.55 mm (0,004 - 0.021 in)
Third/forth synchronizer to shift fork mm (in) 0.1 - 0.55 (0.004-0.021)
Fifth/reverse synchronizer to shift fork mm (in) 0.15 - 0.51 (0.005-0.020)
End play
Input shaft 0 - 0.05 mm (0 - 0.002 in)
Output shaft 0 - 0.05 mm (0 - 0.002 in)
Input shaft gear 0.05 mm (0.002 in)
Output shaft gear 0.015 mm (0.0006 in)
Backlash
Side gears and pinions 0.025 - 0.1 mm (0.001 - 0.004 in)
