Specifications
>>
Automatic Transaxle
>>
Reference: Pressure Chart No. 401
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Reference: Pressure Chart No. 401

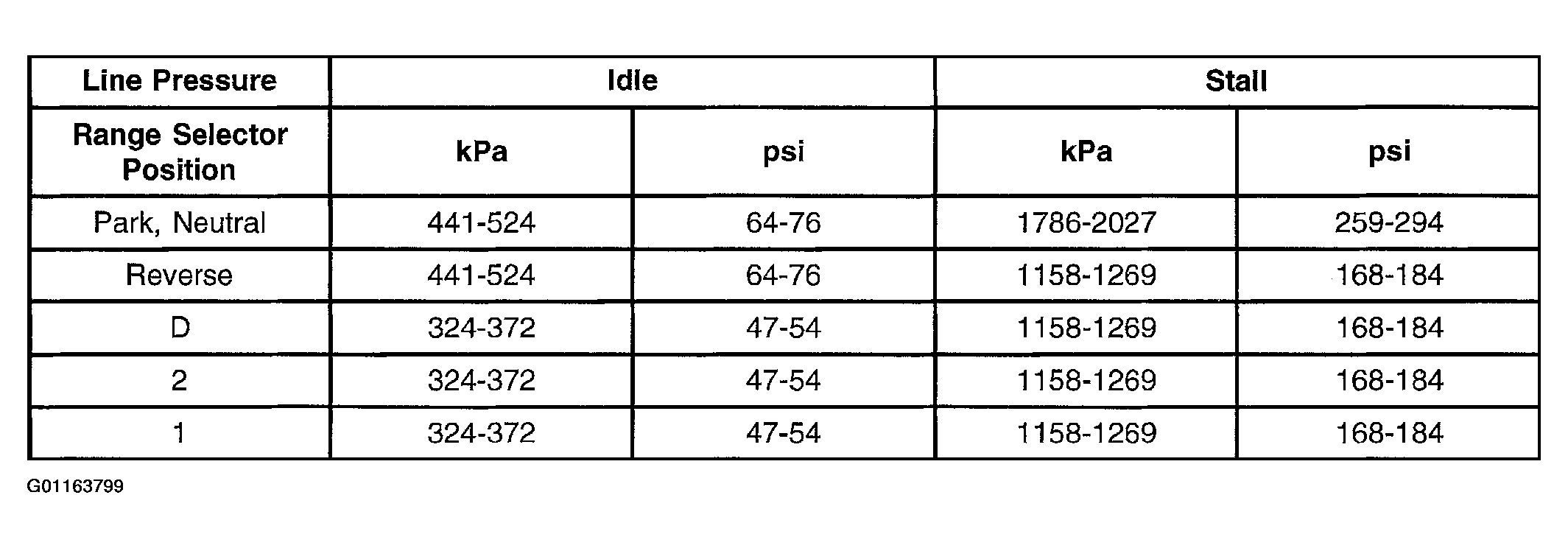

Fig 1: Reference: Pressure Chart No. 401
Courtesy of MAZDA MOTORS CORP.
