PID Values

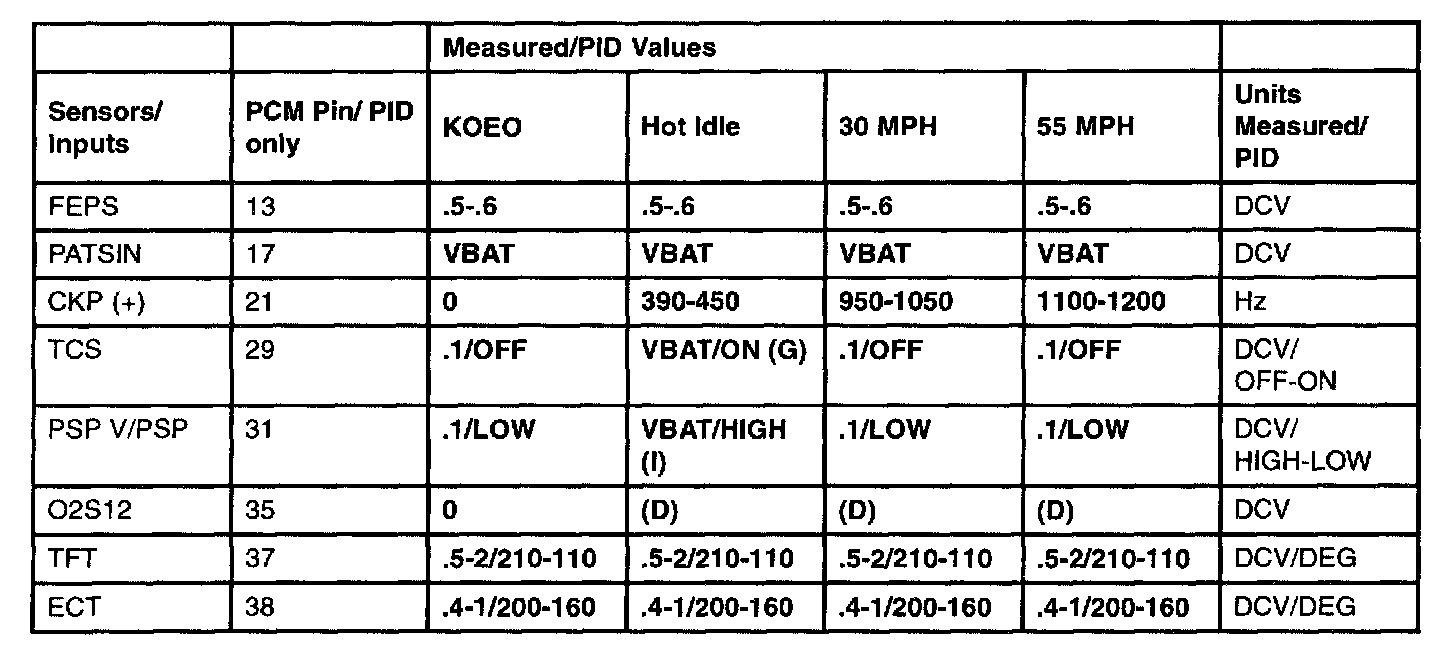

PID/DATA MONITOR REFERENCE VALUE (A/T)(Part 1):

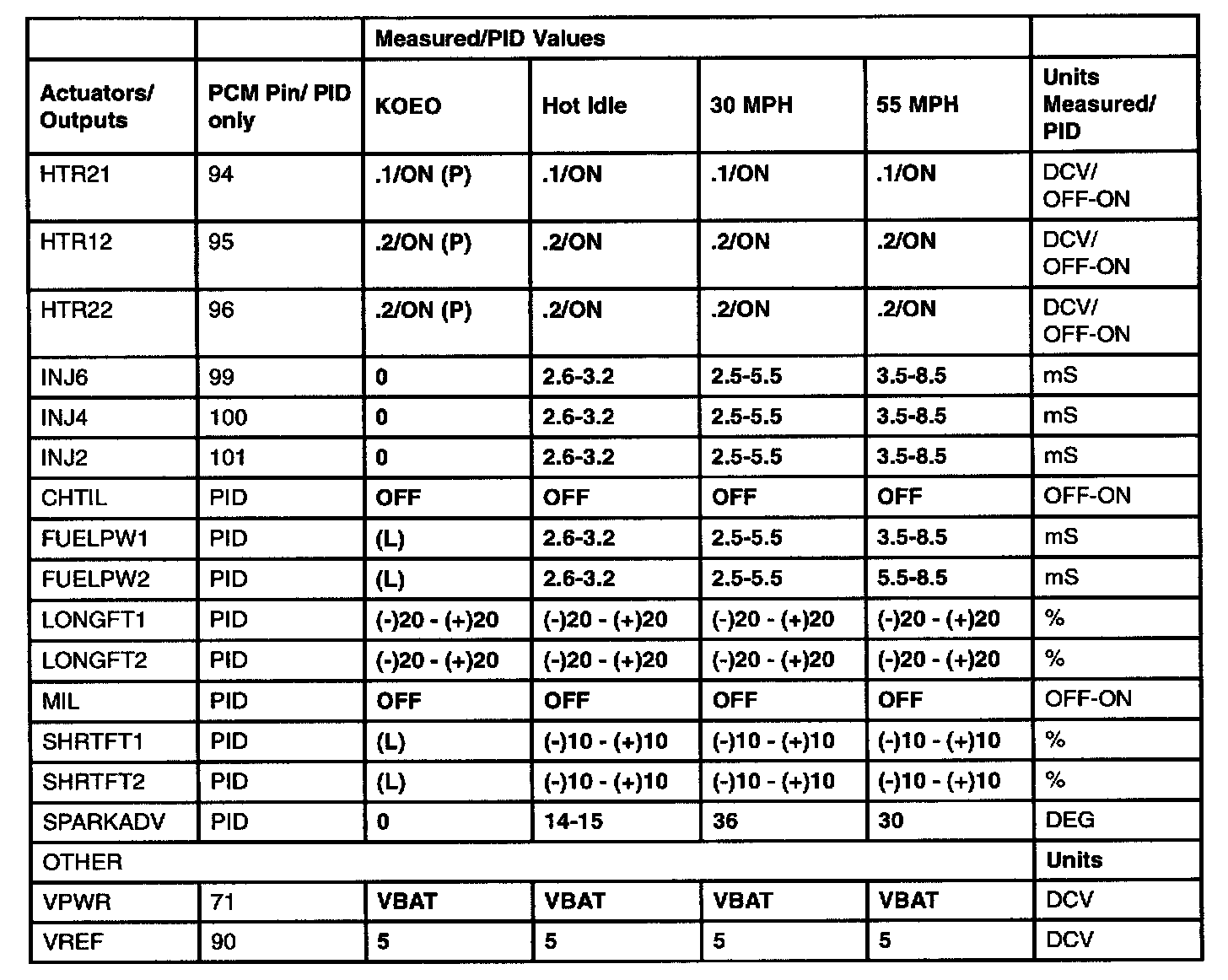

PID/DATA MONITOR REFERENCE VALUE (A/T) (Part 2):

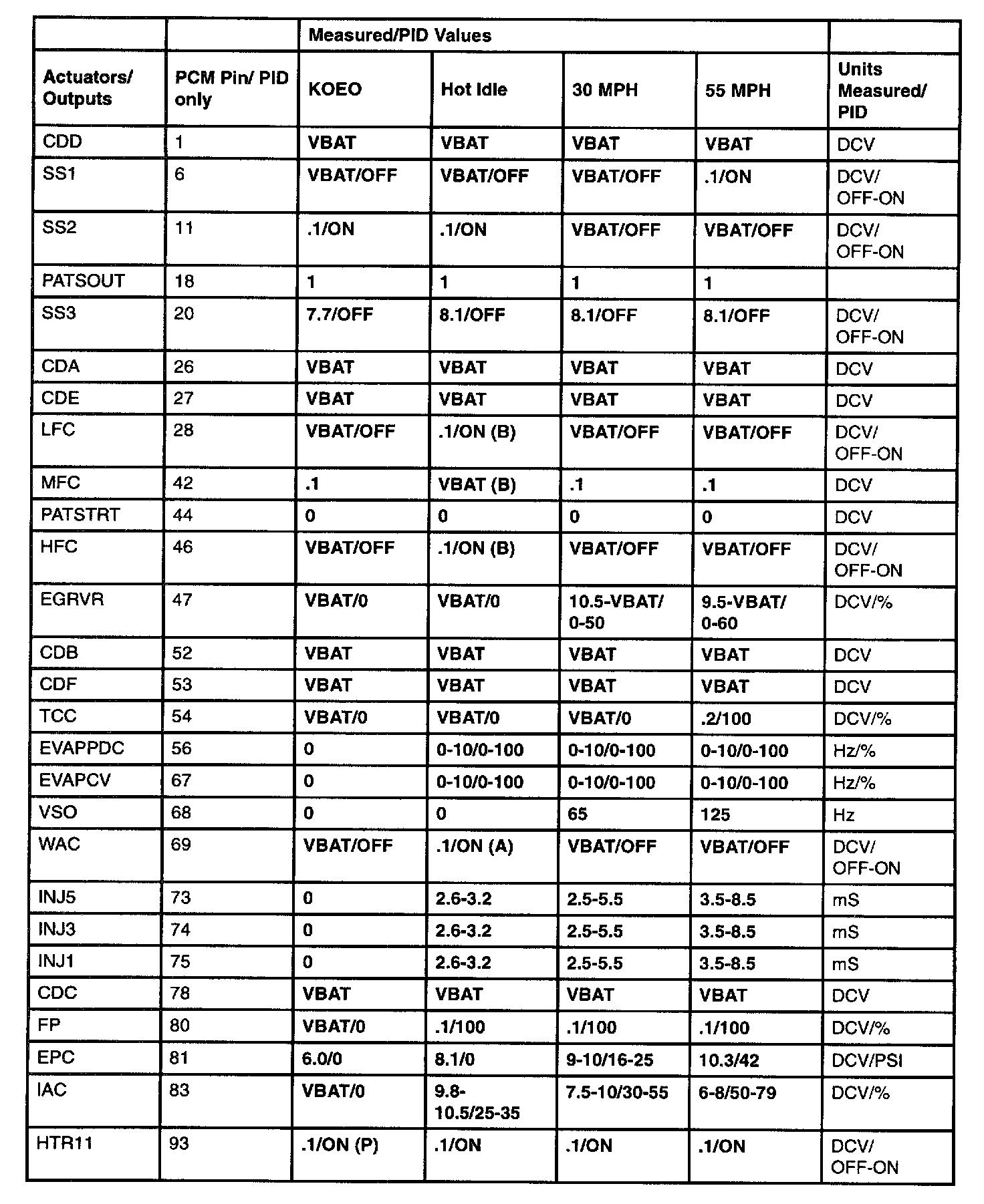

Typical Diagnostic Reference Values (Part 1):

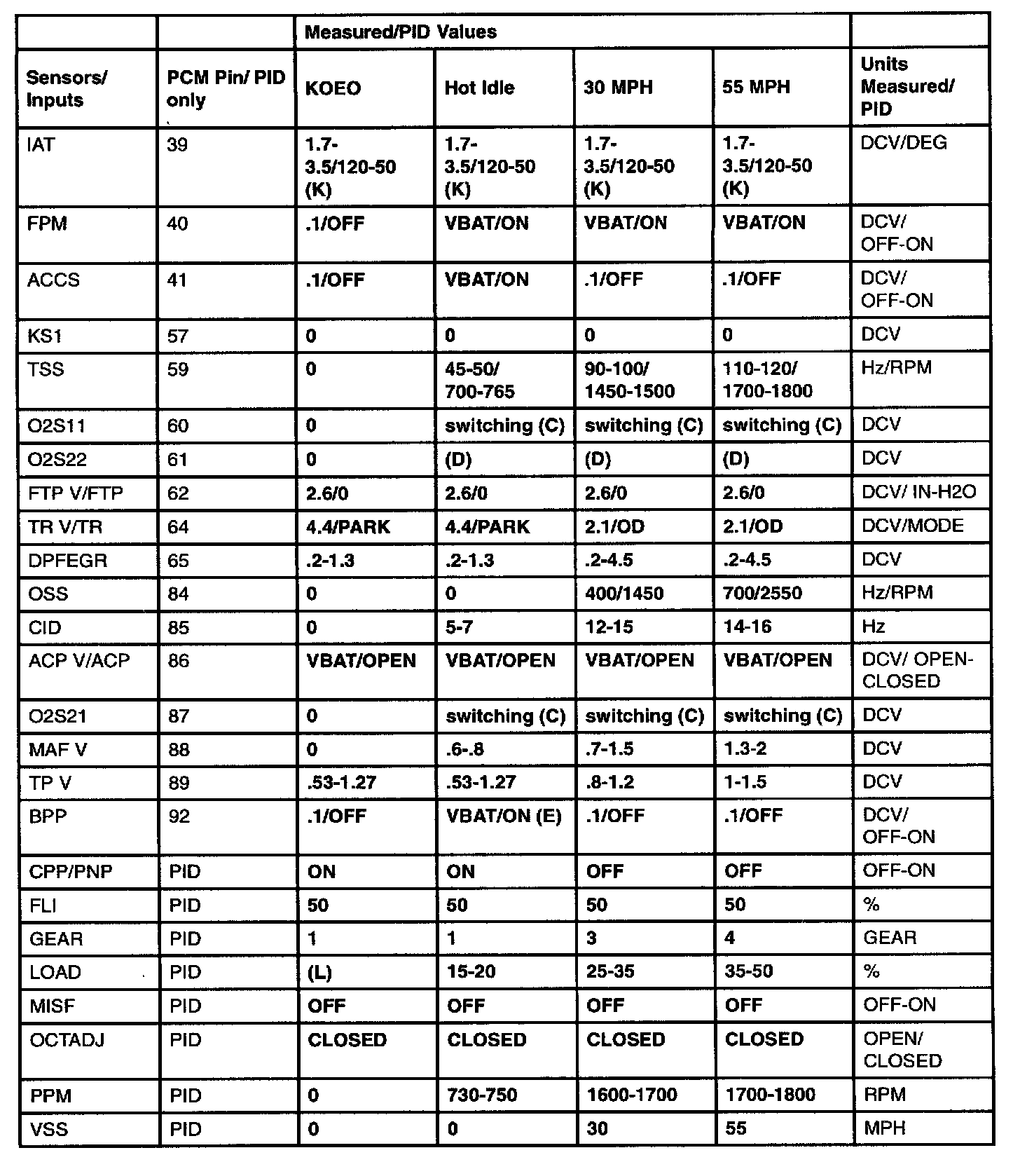

Typical Diagnostic Reference Values (Part 2):



GENERIC OBD II PID VALUES:
