Check Code 22

WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: While inspecting with check code 22, the measured value is displayed in both odometer and tripmeter segments of the odometer/tripmeter. Verify both readings.

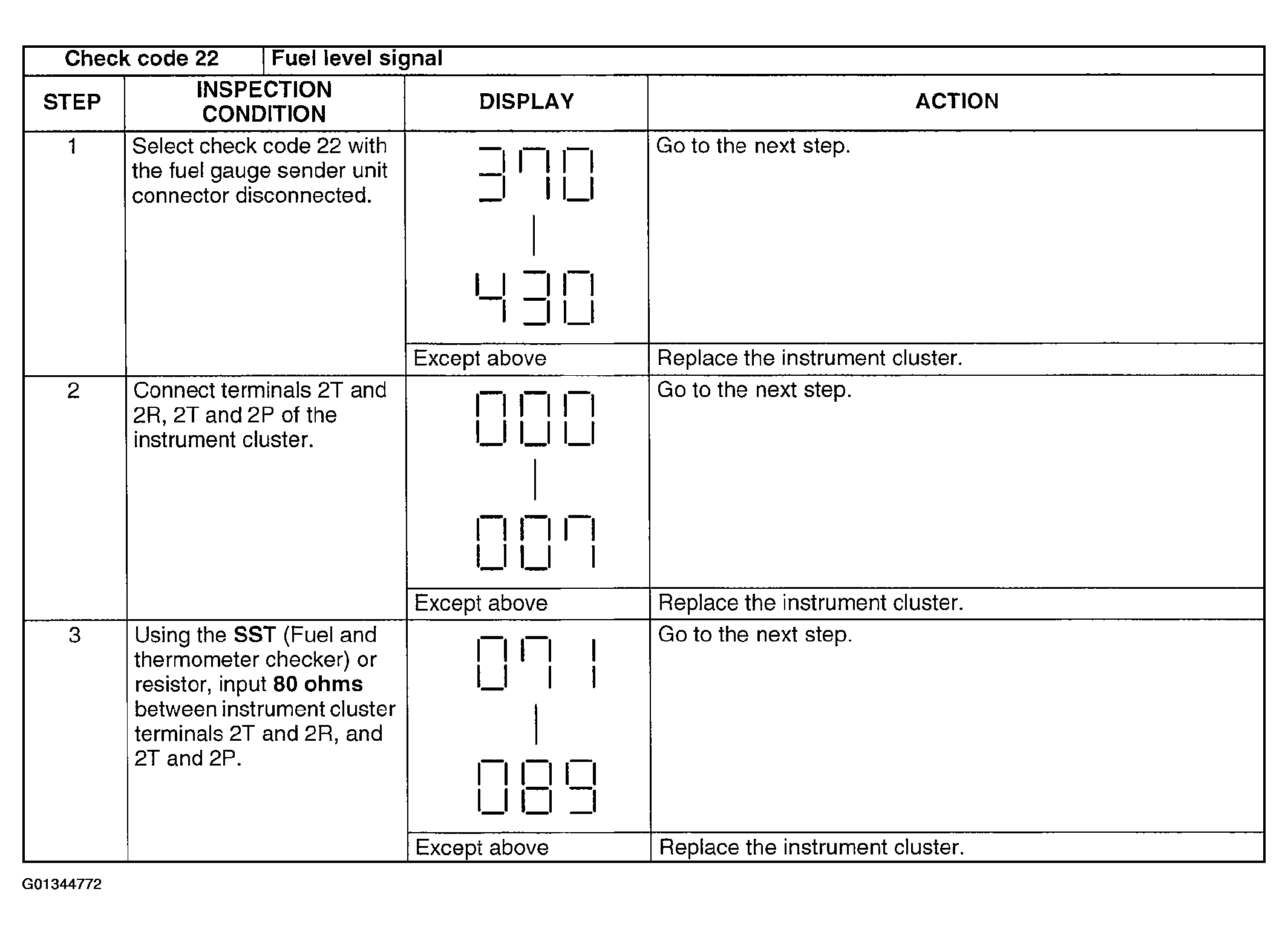

Fig 1: Check Code Inspection - Check Code 22 (1 Of 2)

Courtesy of MAZDA MOTORS CORP.

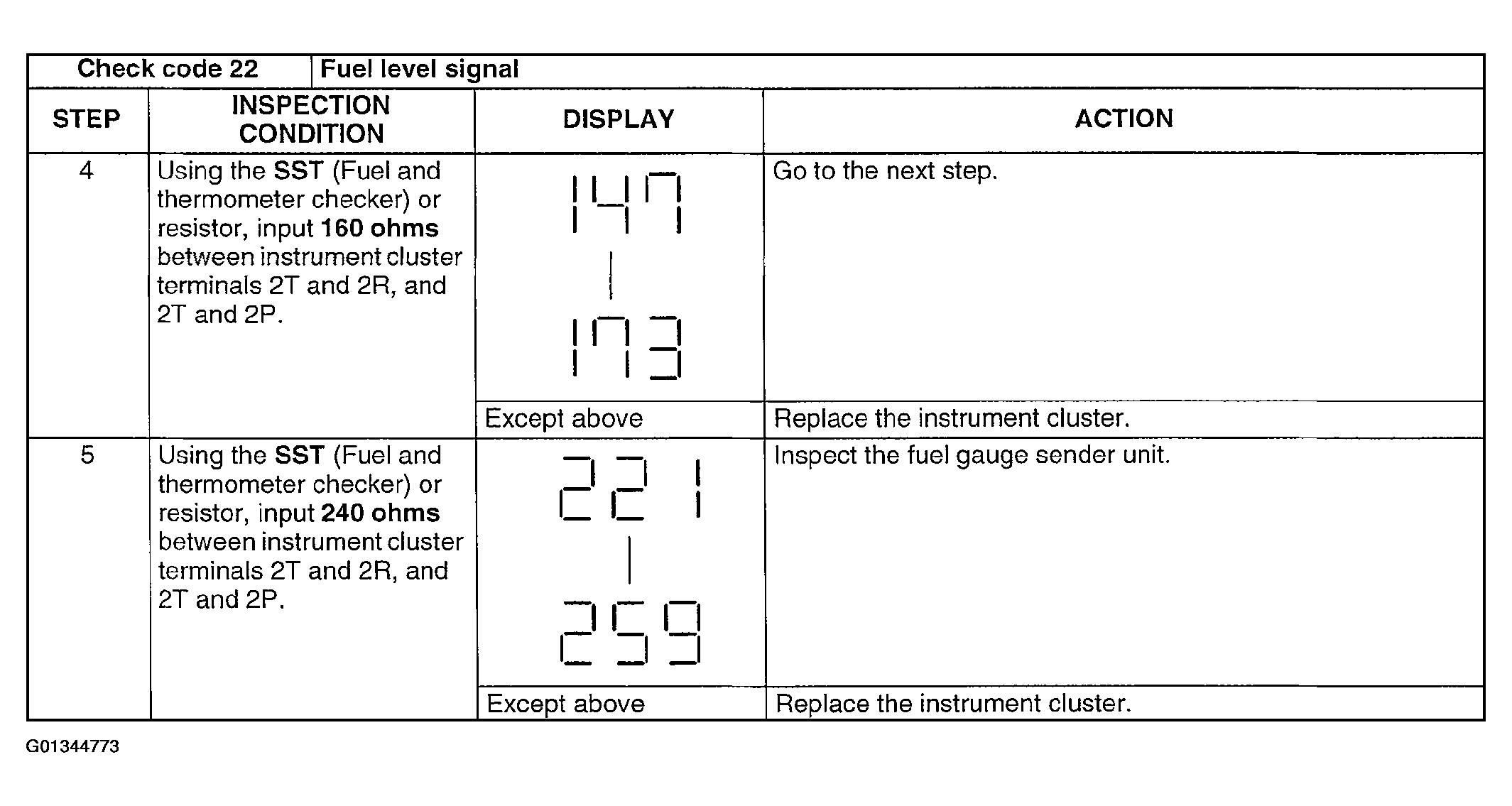

Fig 2: Check Code Inspection - Check Code 22 (2 Of 2)

Courtesy of MAZDA MOTORS CORP.
