Pinpoint Test 3: A Single Mirror Does Not Function With Switch Logic

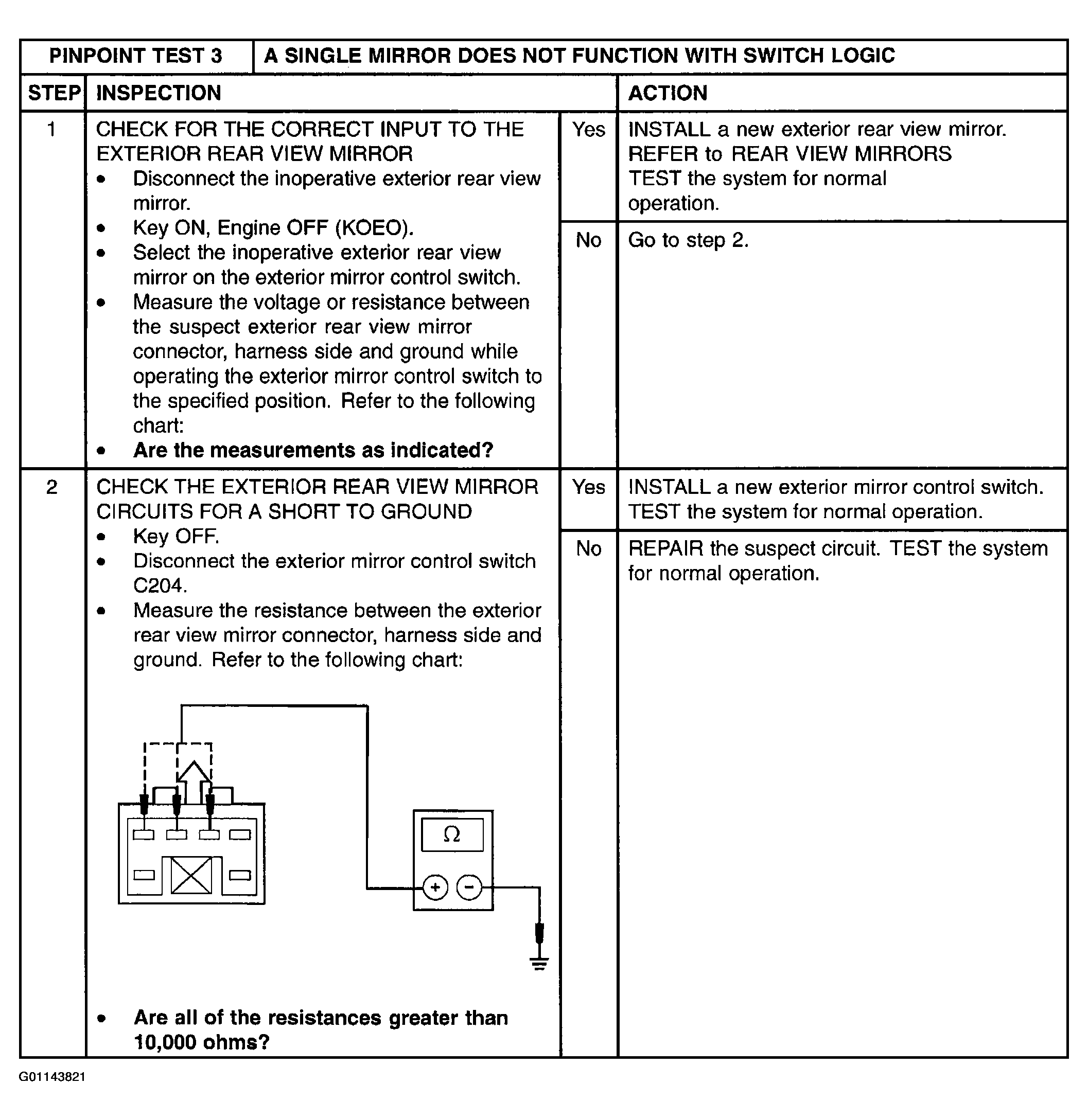

Fig 1: Pinpoint Test 3: A Single Mirror Does Not Function With Switch Logic

Courtesy of MAZDA MOTORS CORP.

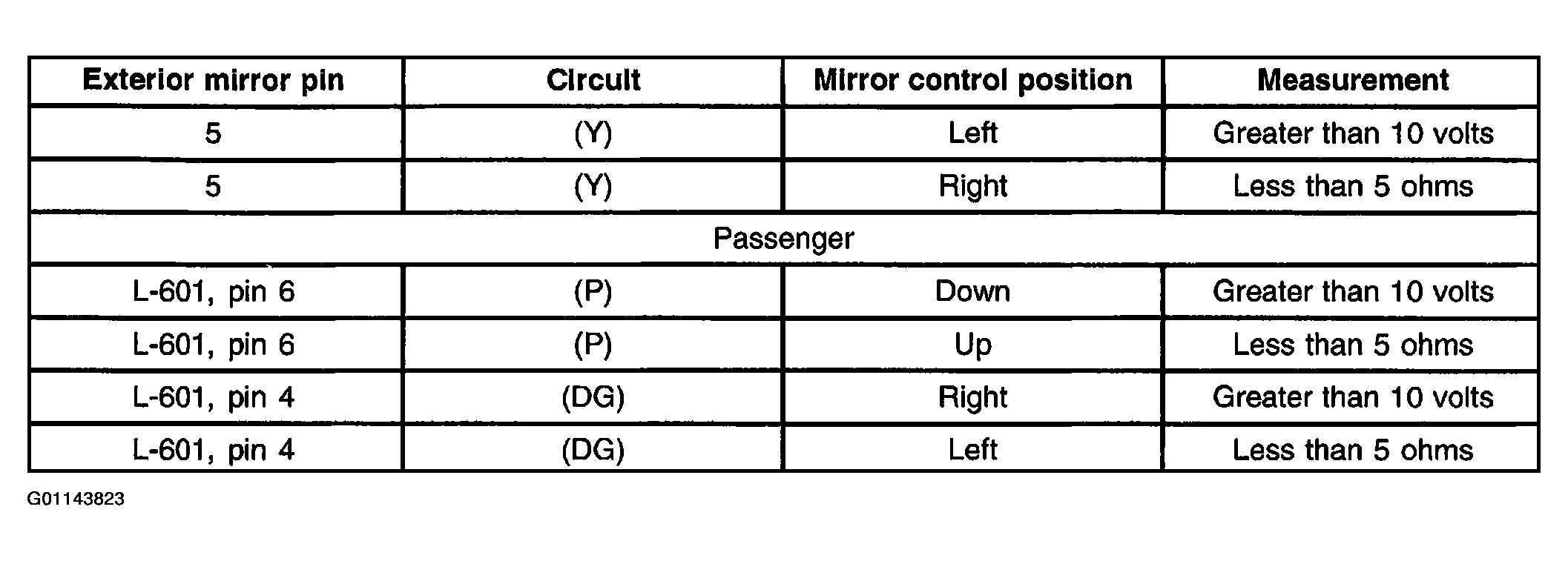

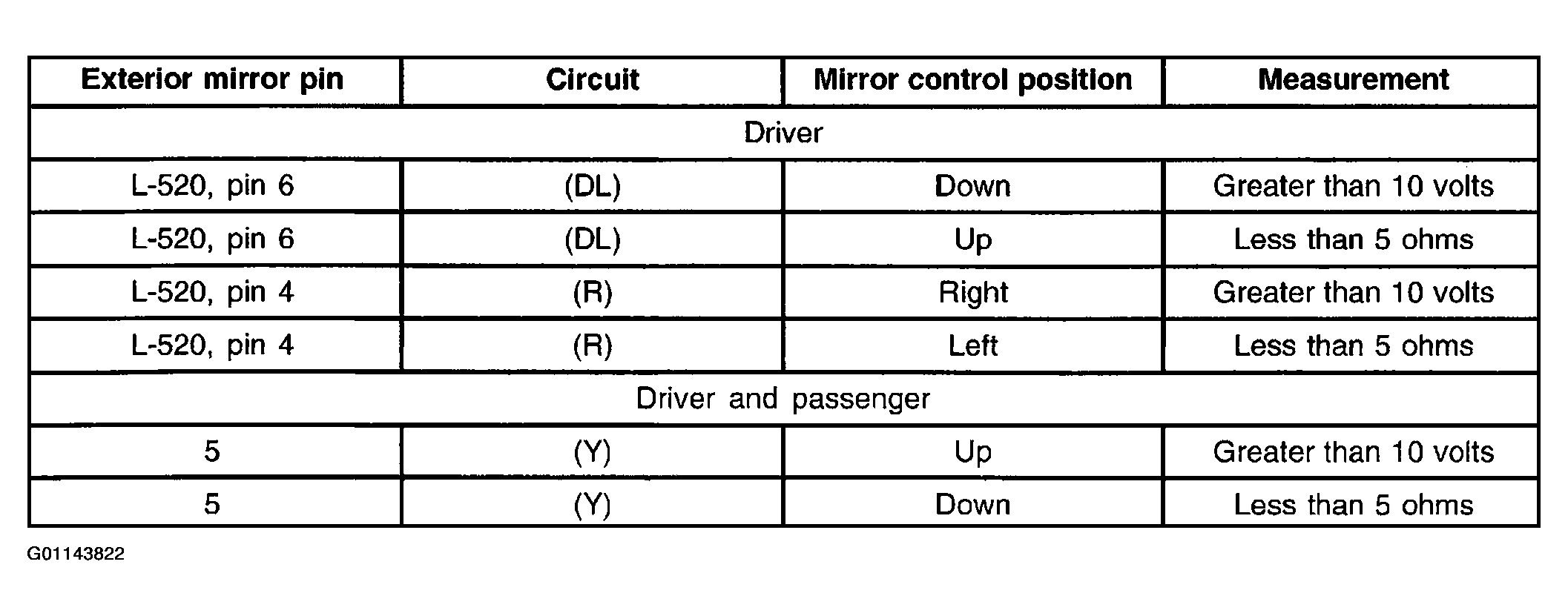

Fig 2: Pinpoint Test 3: A Single Mirror Does Not Function With Switch Logic (Circuit Test No. 1)

Courtesy of MAZDA MOTORS CORP.

Fig 3: Pinpoint Test 3: A Single Mirror Does Not Function With Switch Logic (Circuit Test No. 2)

Courtesy of MAZDA MOTORS CORP.

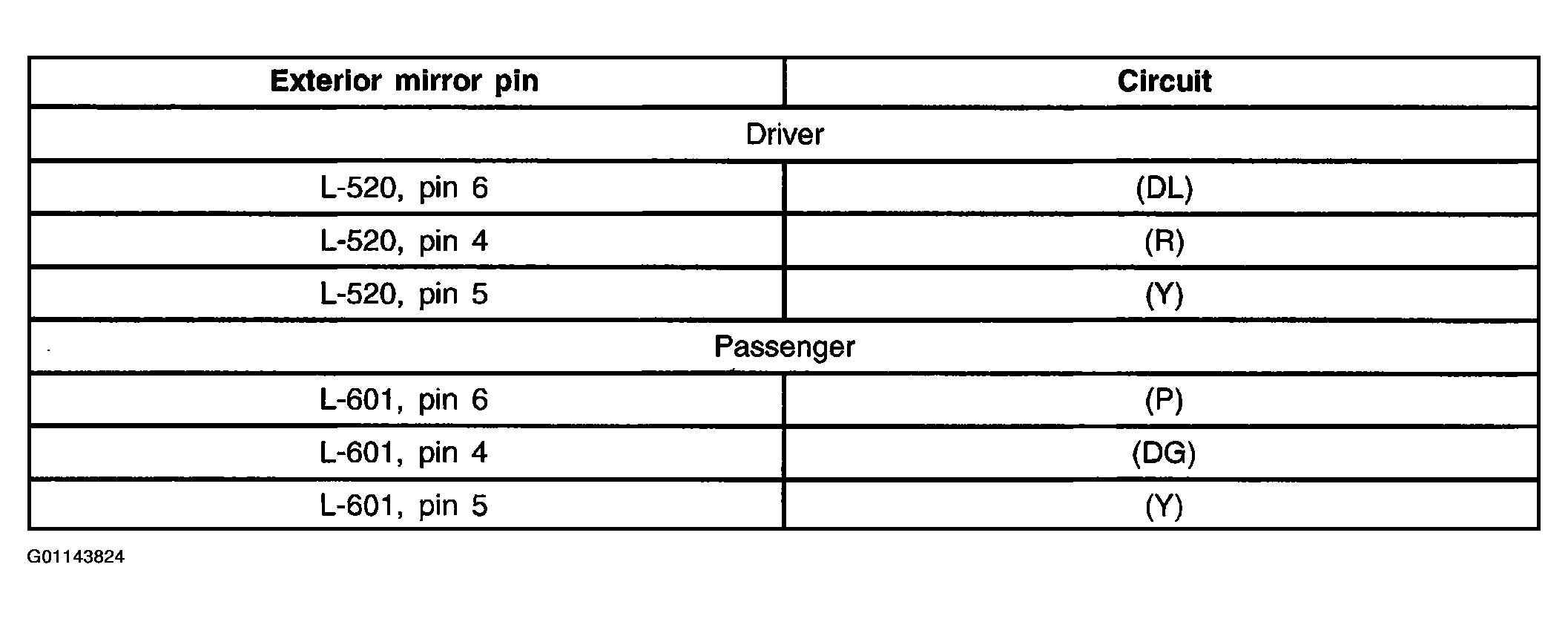

Fig 4: Pinpoint Test 3: A Single Mirror Does Not Function With Switch Logic (Connector Pin Location)

Courtesy of MAZDA MOTORS CORP.
