Removal and Installation

Remove the air bag sliding contact. Refer to DISABLING & ACTIVATING AIR BAG SYSTEM AIR BAG SLIDING CONTACT.
Remove the multifunction switch. Refer to STEERING COLUMN MULTIFUNCTION SWITCH .
Remove the ignition switch. Refer to IGNITION SWITCH .

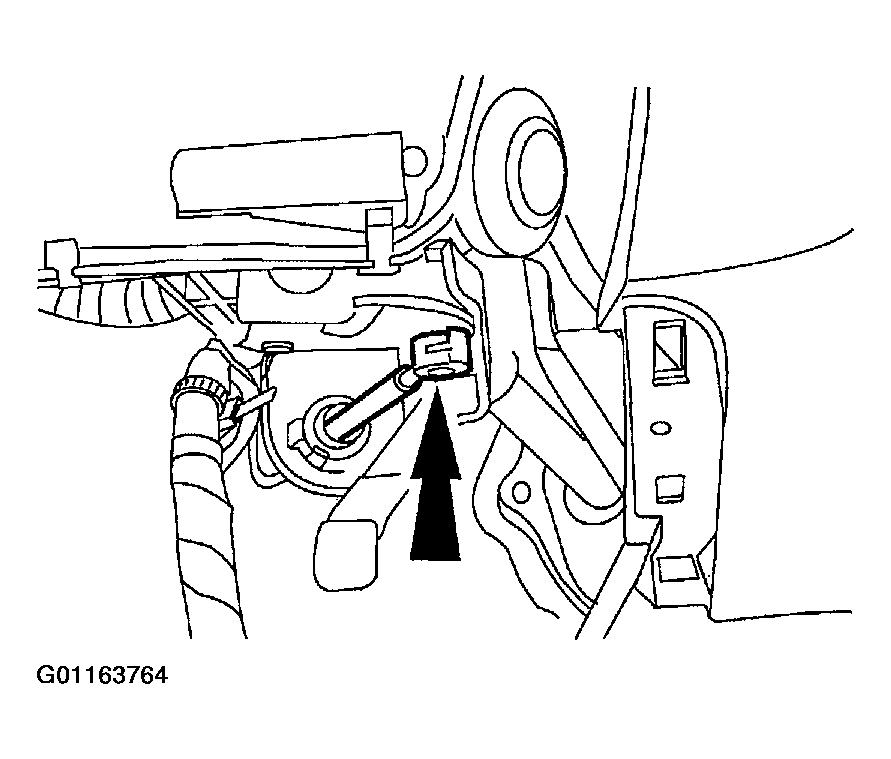

Fig 1: Disconnecting Gearshift Cable
Courtesy of MAZDA MOTORS CORP.
Disconnect the gearshift cable.

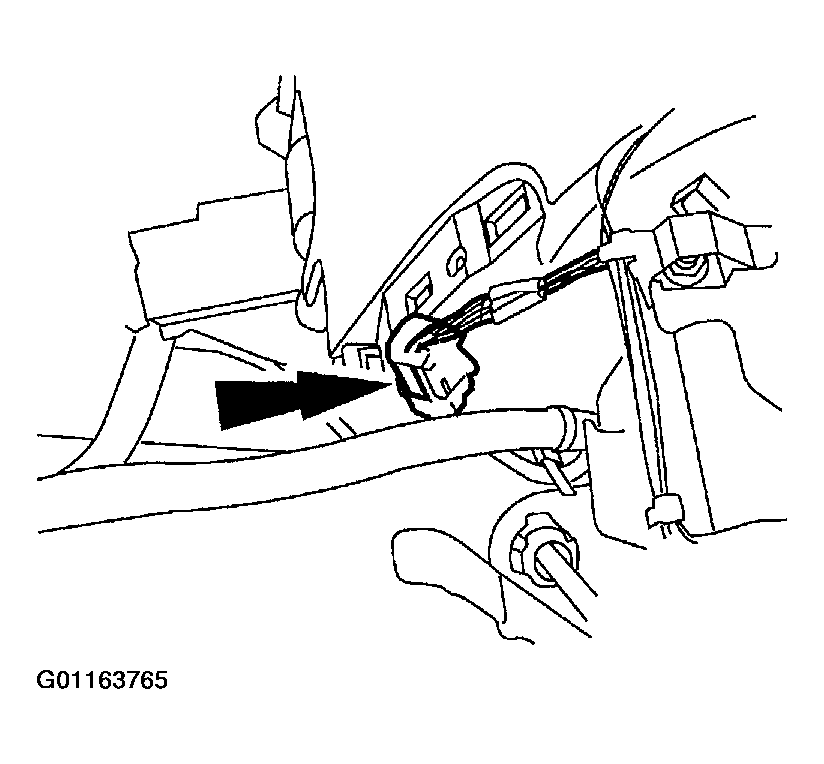

Fig 2: Disconnecting Electrical Connector
Courtesy of MAZDA MOTORS CORP.
Disconnect the electrical connector.

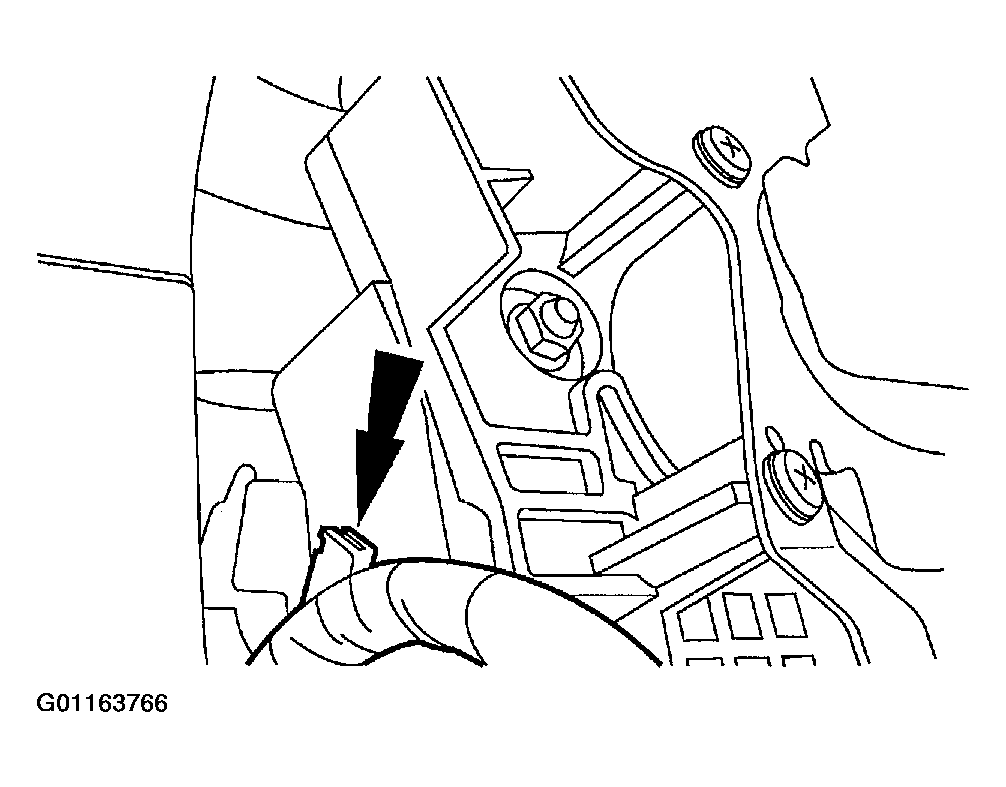

Fig 3: Disconnecting Wiring Harness From The Gear Shifter Assembly
Courtesy of MAZDA MOTORS CORP.
Disconnect the wiring harness from the gear shifter assembly.

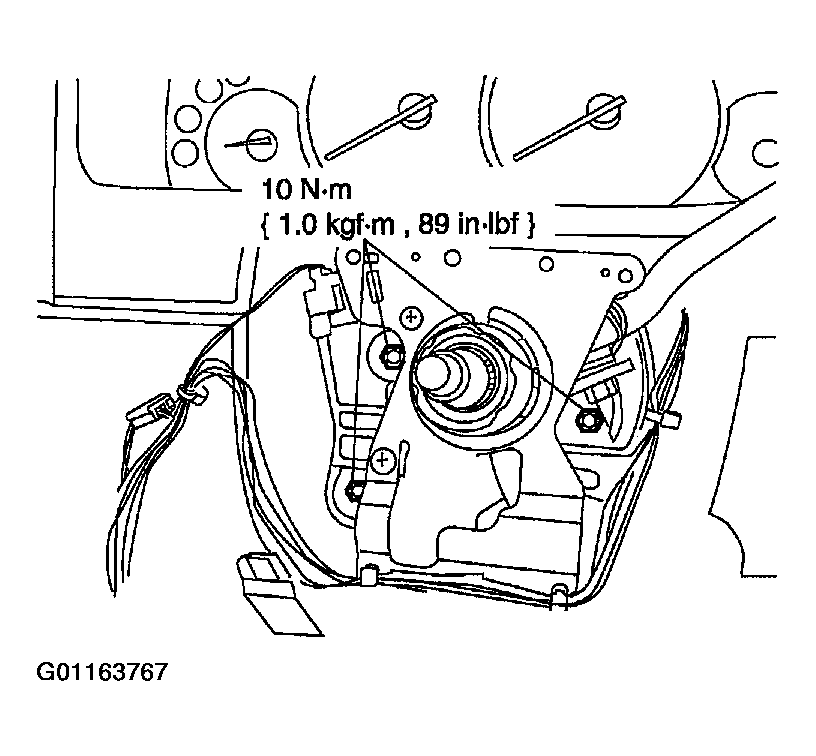

Fig 4: Removing Bolts And The Gearshift Lever Assembly
Courtesy of MAZDA MOTORS CORP.
Remove the bolts and the gearshift lever assembly.
To install, reverse the removal procedure.
