Pinpoint Test 1: The Shift Interlock System Does Not Release/Lock Correctly

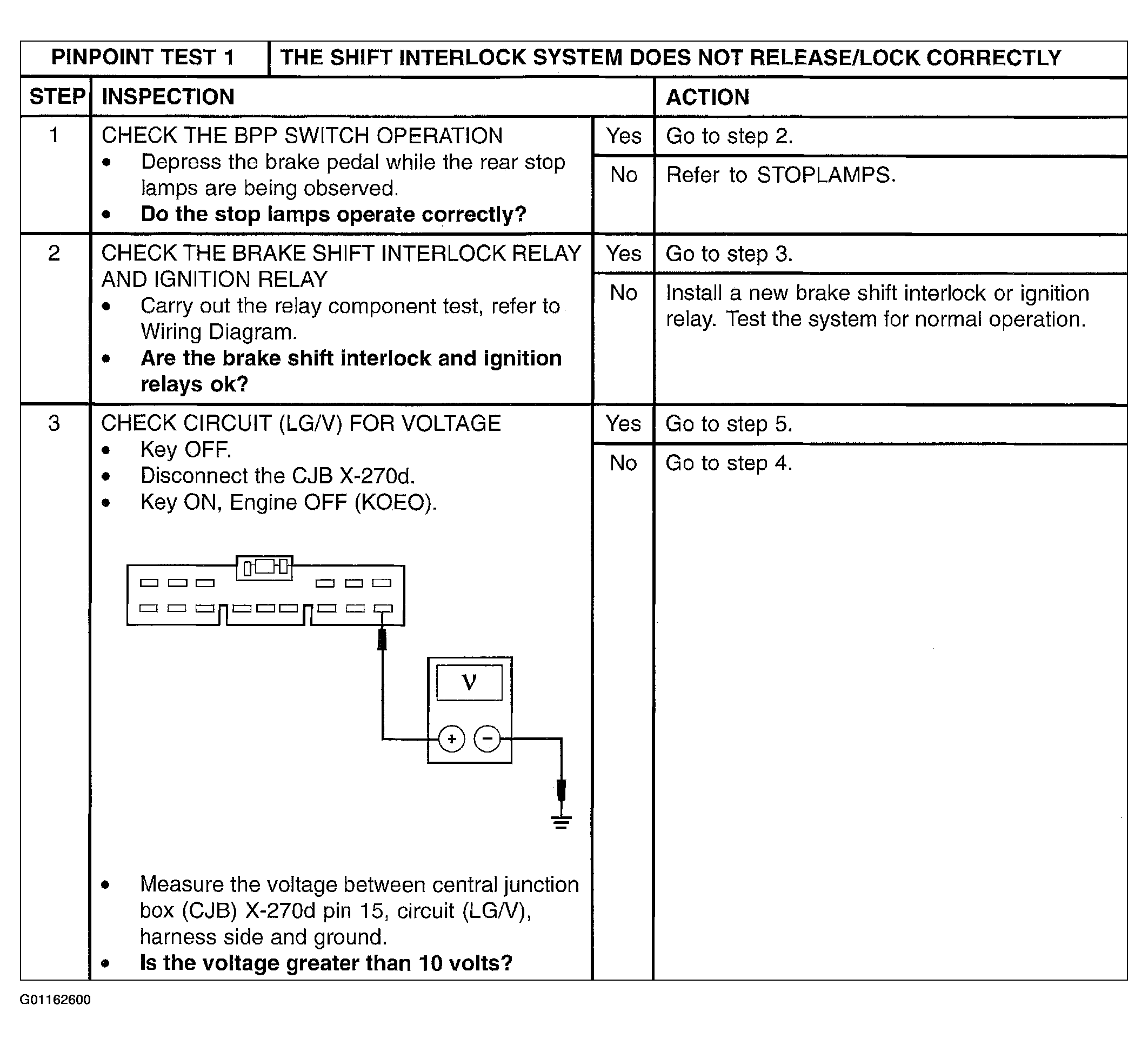

Fig 1: Pinpoint Test 1: The Shift Interlock System Does Not Release/Lock Correctly (Steps 1-3)

Courtesy of MAZDA MOTORS CORP.

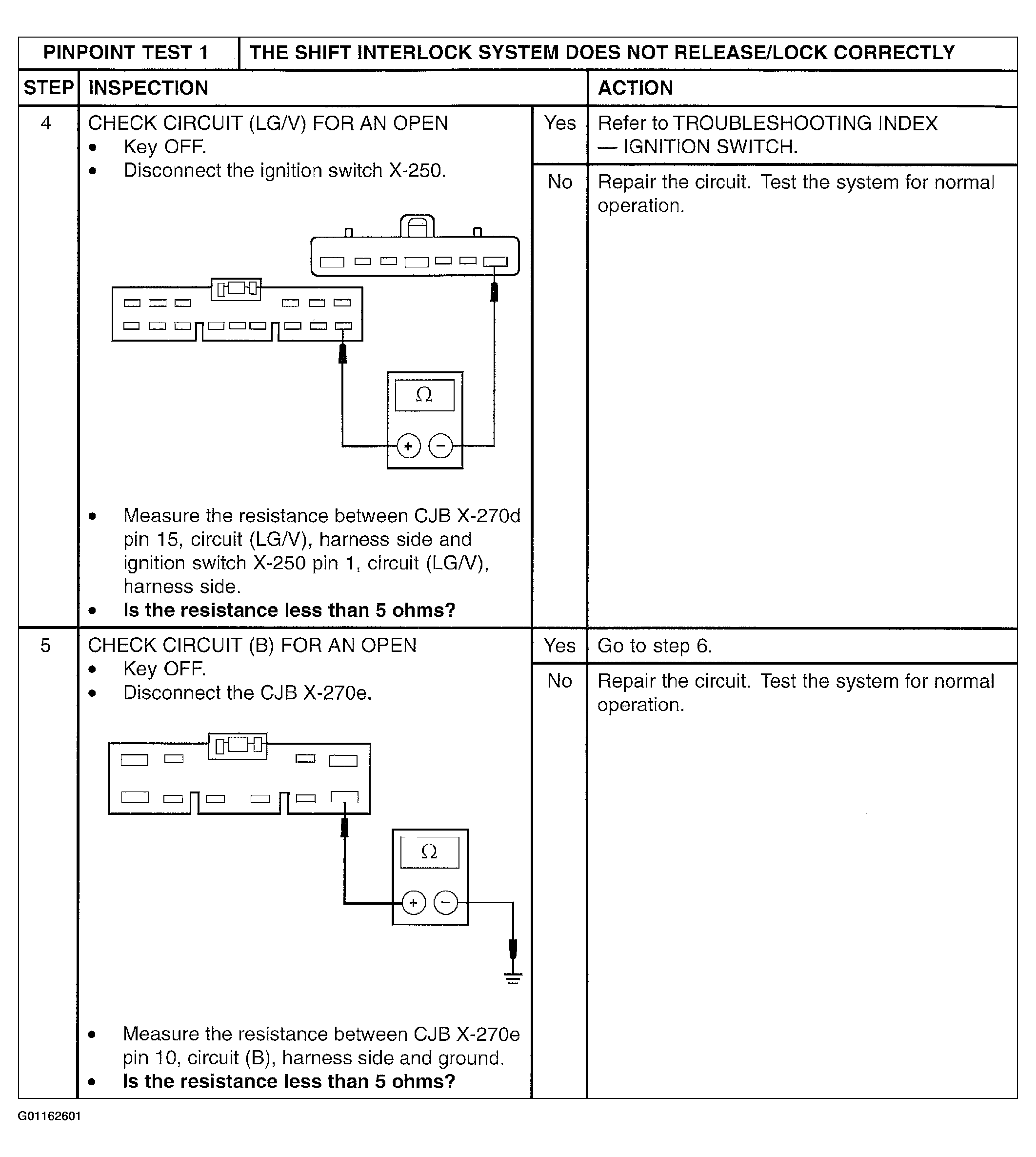

Fig 2: Pinpoint Test 1: The Shift Interlock System Does Not Release/Lock Correctly (Steps 4-5)

Courtesy of MAZDA MOTORS CORP.

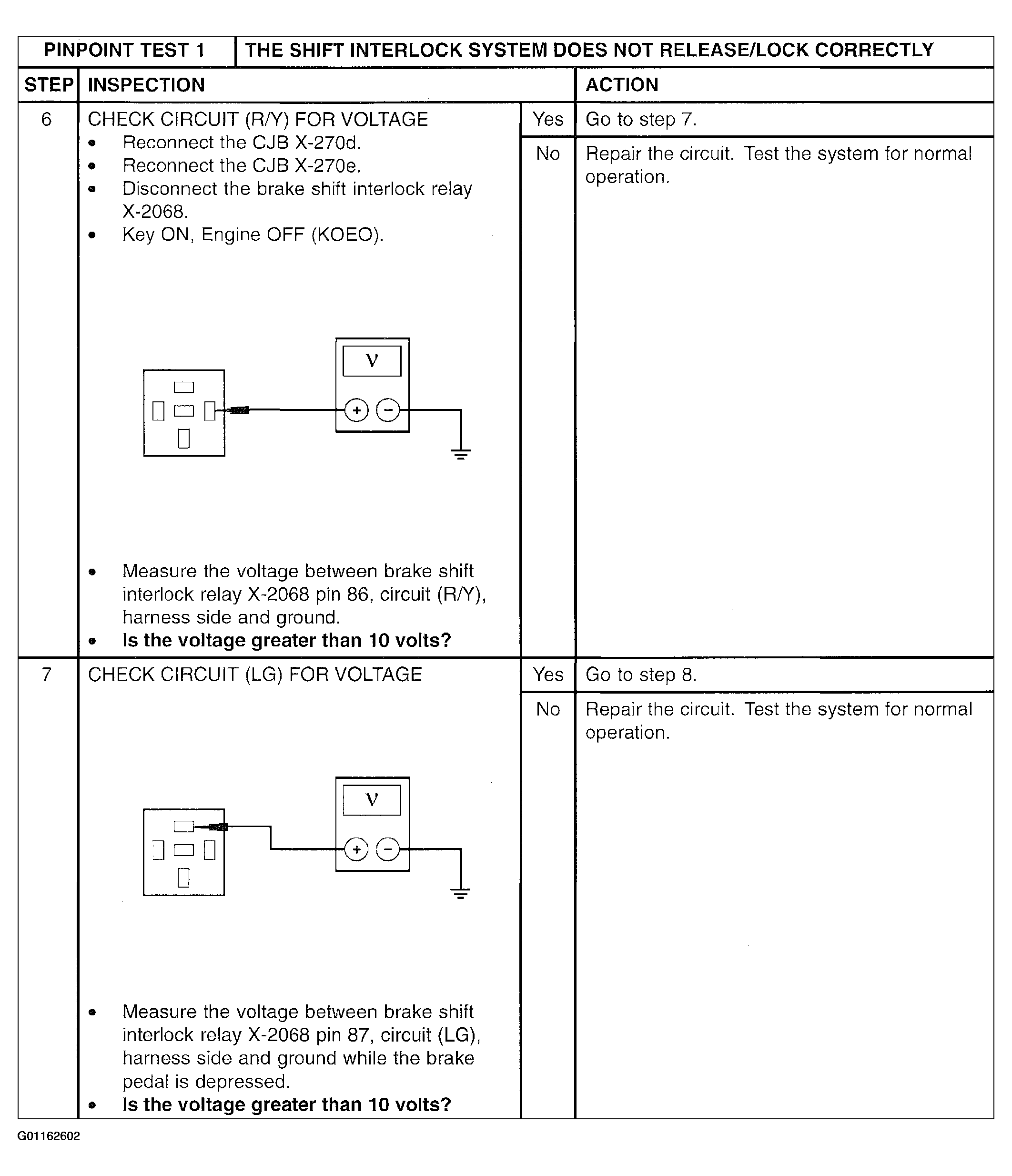

Fig 3: Pinpoint Test 1: The Shift Interlock System Does Not Release/Lock Correctly (Steps 6-7)

Courtesy of MAZDA MOTORS CORP.

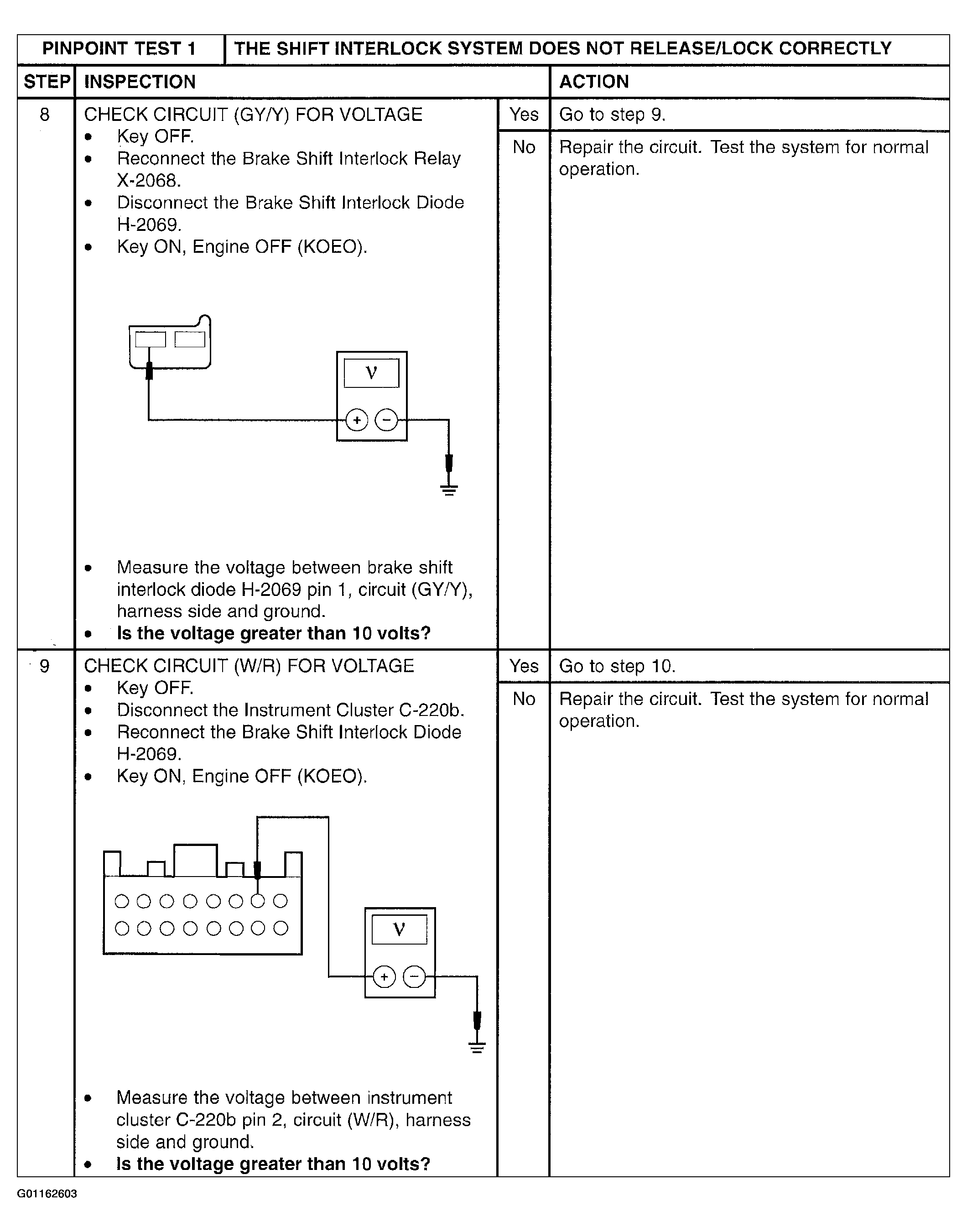

Fig 4: Pinpoint Test 1: The Shift Interlock System Does Not Release/Lock Correctly (Steps 8-9)

Courtesy of MAZDA MOTORS CORP.

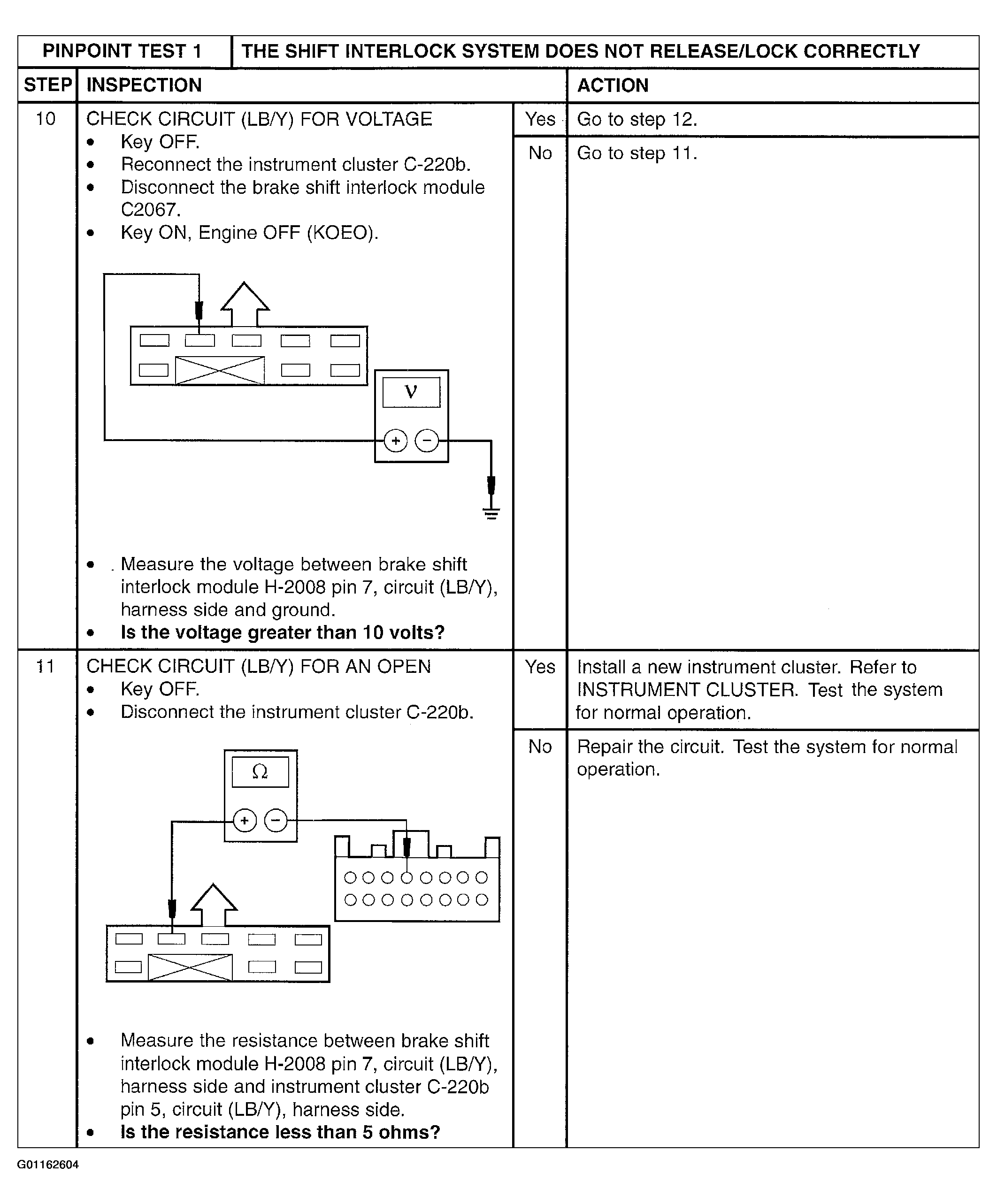

Fig 5: Pinpoint Test 1: The Shift Interlock System Does Not Release/Lock Correctly (Steps 10-11)

Courtesy of MAZDA MOTORS CORP.

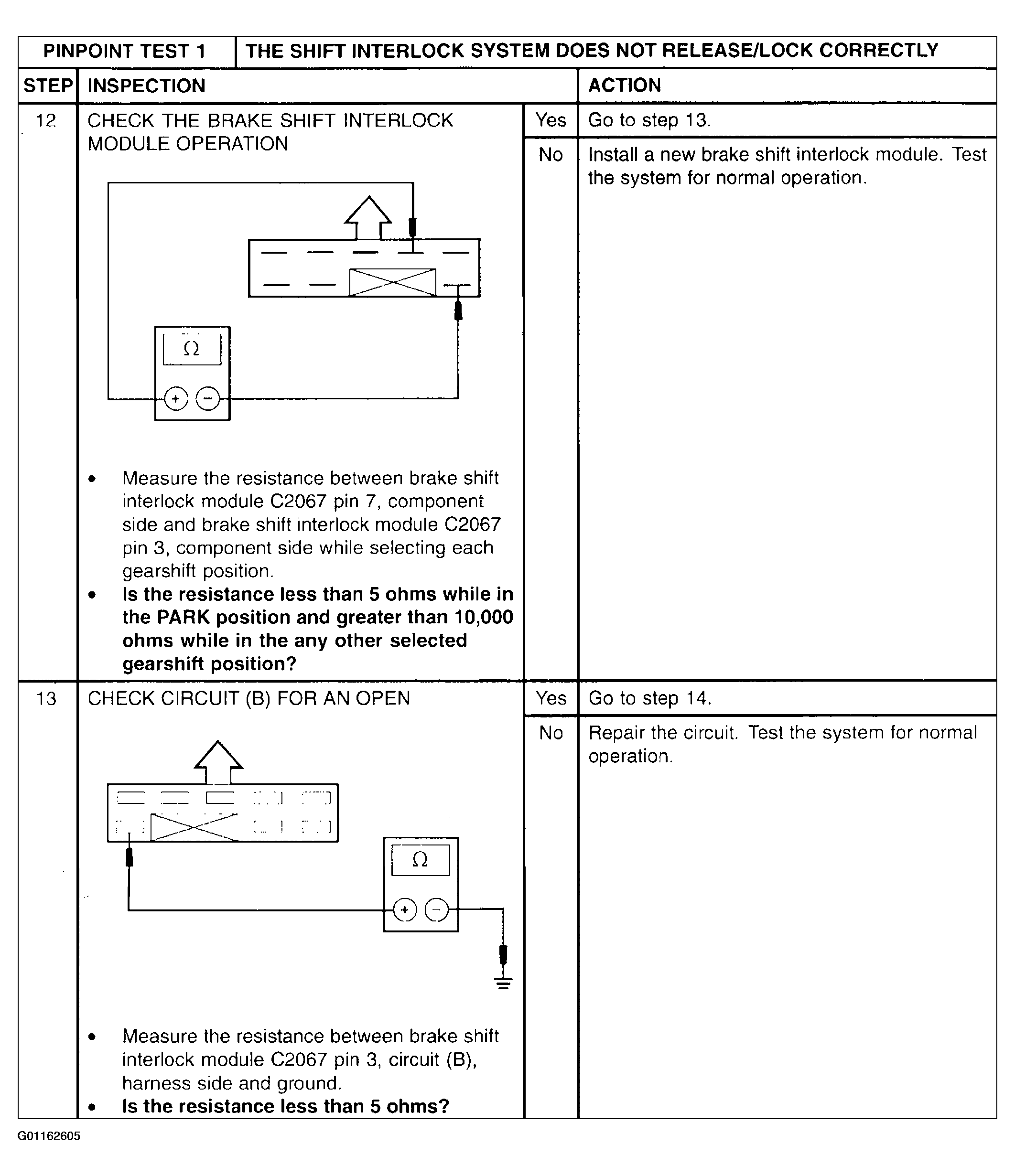

Fig 6: Pinpoint Test 1: The Shift Interlock System Does Not Release/Lock Correctly (Steps 12-13)

Courtesy of MAZDA MOTORS CORP.

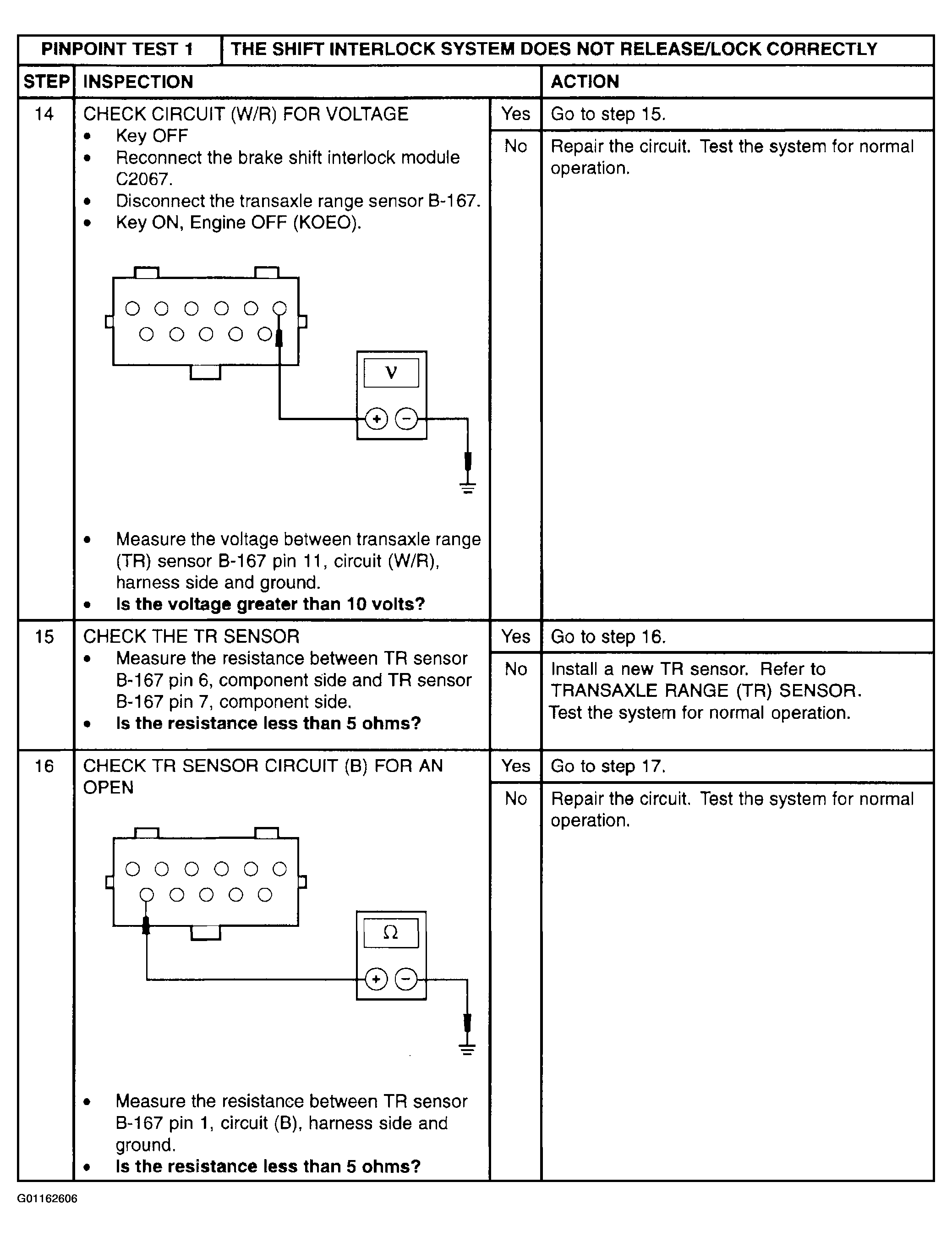

Fig 7: Pinpoint Test 1: The Shift Interlock System Does Not Release/Lock Correctly (Steps 14-16)

Courtesy of MAZDA MOTORS CORP.

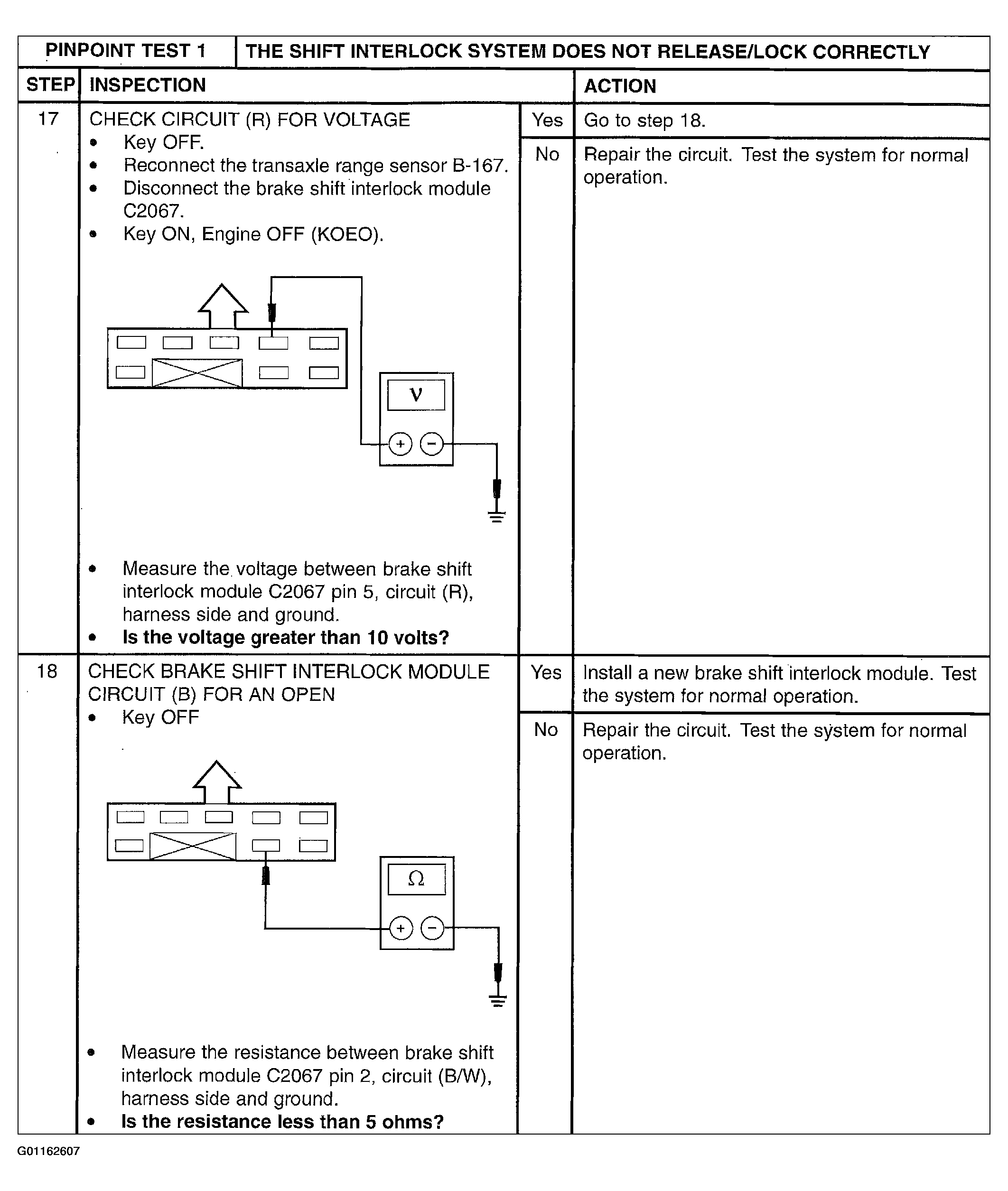

Fig 8: Pinpoint Test 1: The Shift Interlock System Does Not Release/Lock Correctly (Steps 17-18)

Courtesy of MAZDA MOTORS CORP.
