Pinpoint Test 3: The Transaxle Control Switch Is Inoperative

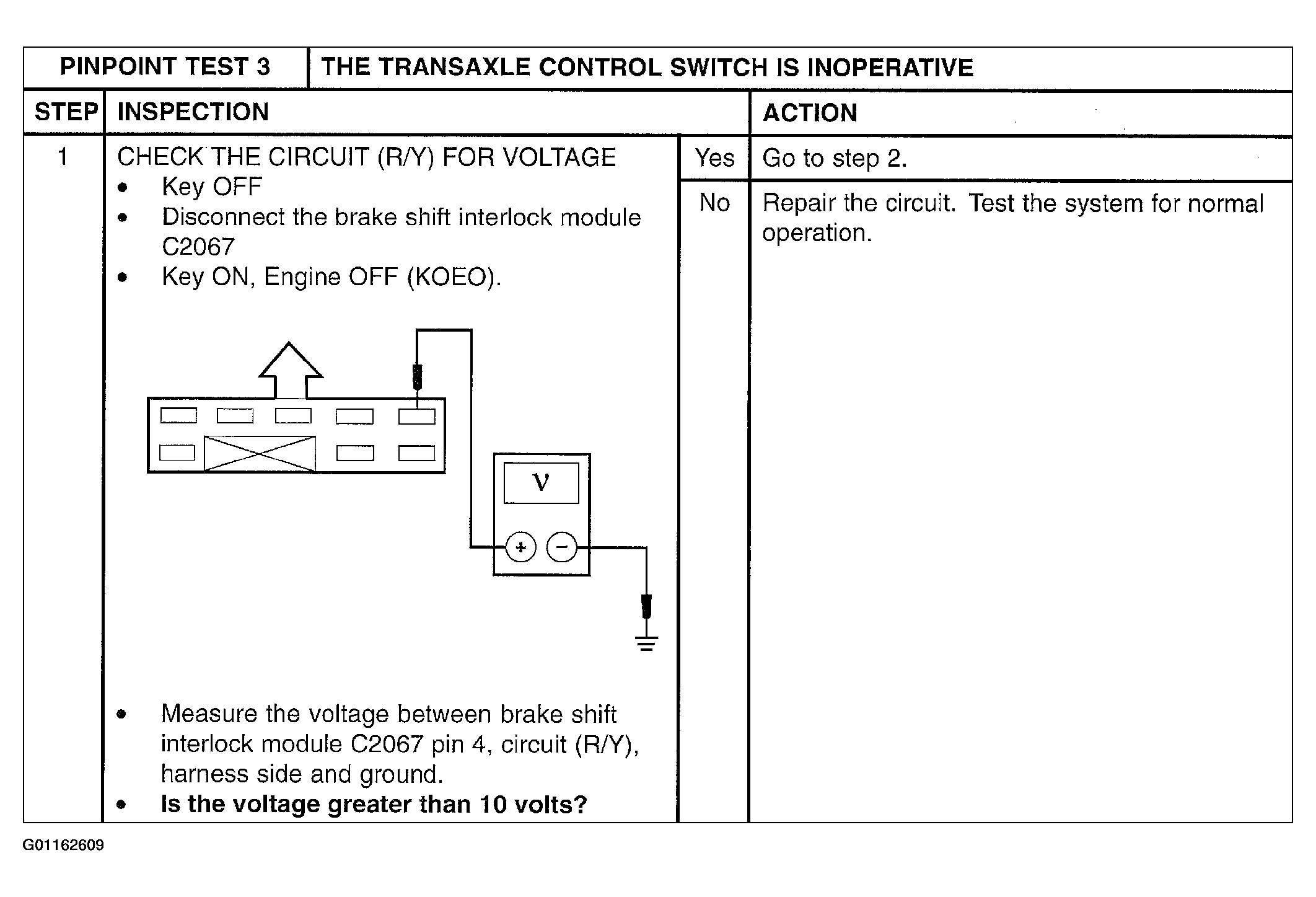

Fig 1: Pinpoint Test 3: The Transaxle Control Switch Is Inoperative (Step 1)

Courtesy of MAZDA MOTORS CORP.

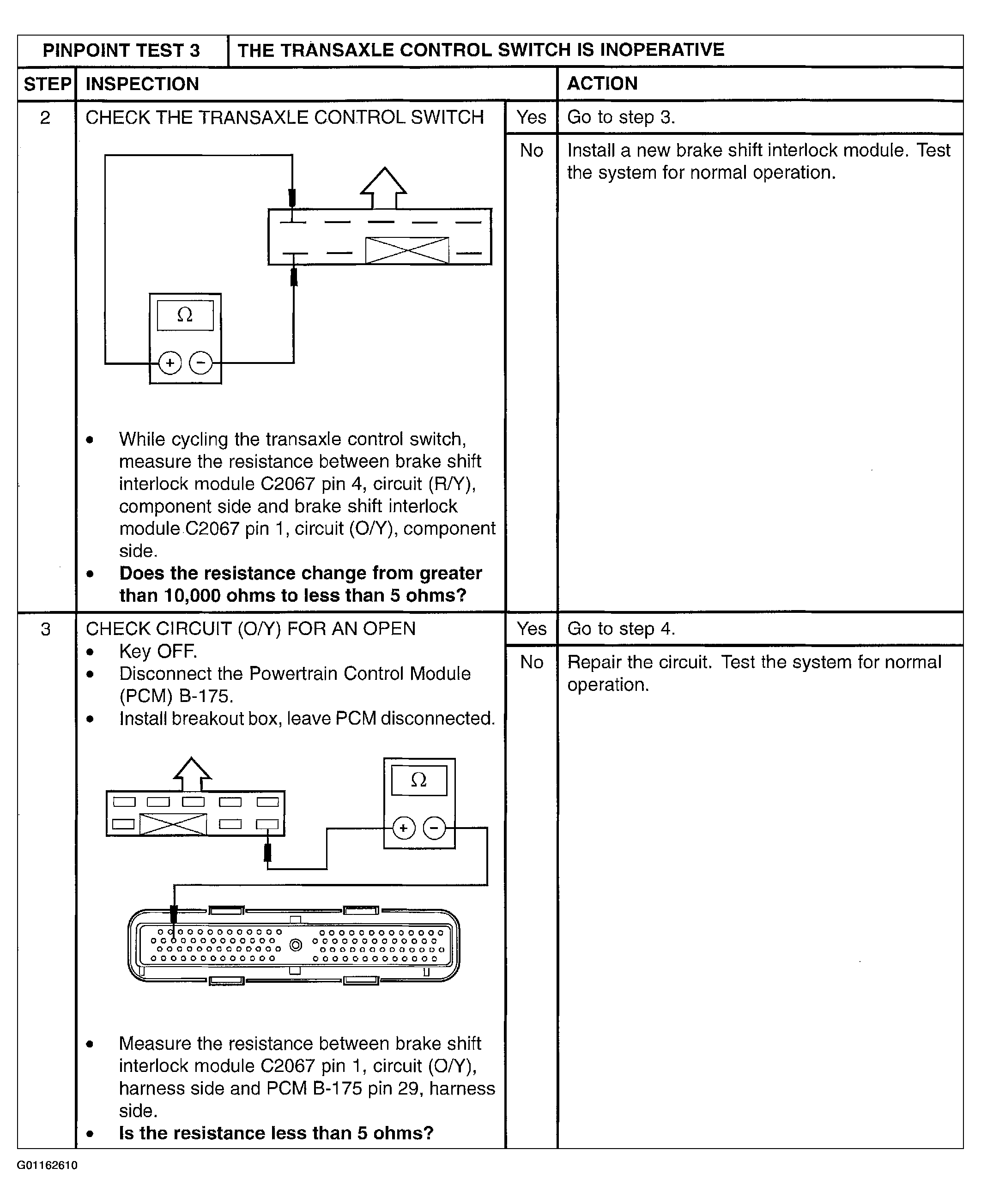

Fig 2: Pinpoint Test 3: The Transaxle Control Switch Is Inoperative (Steps 2-3)

Courtesy of MAZDA MOTORS CORP.

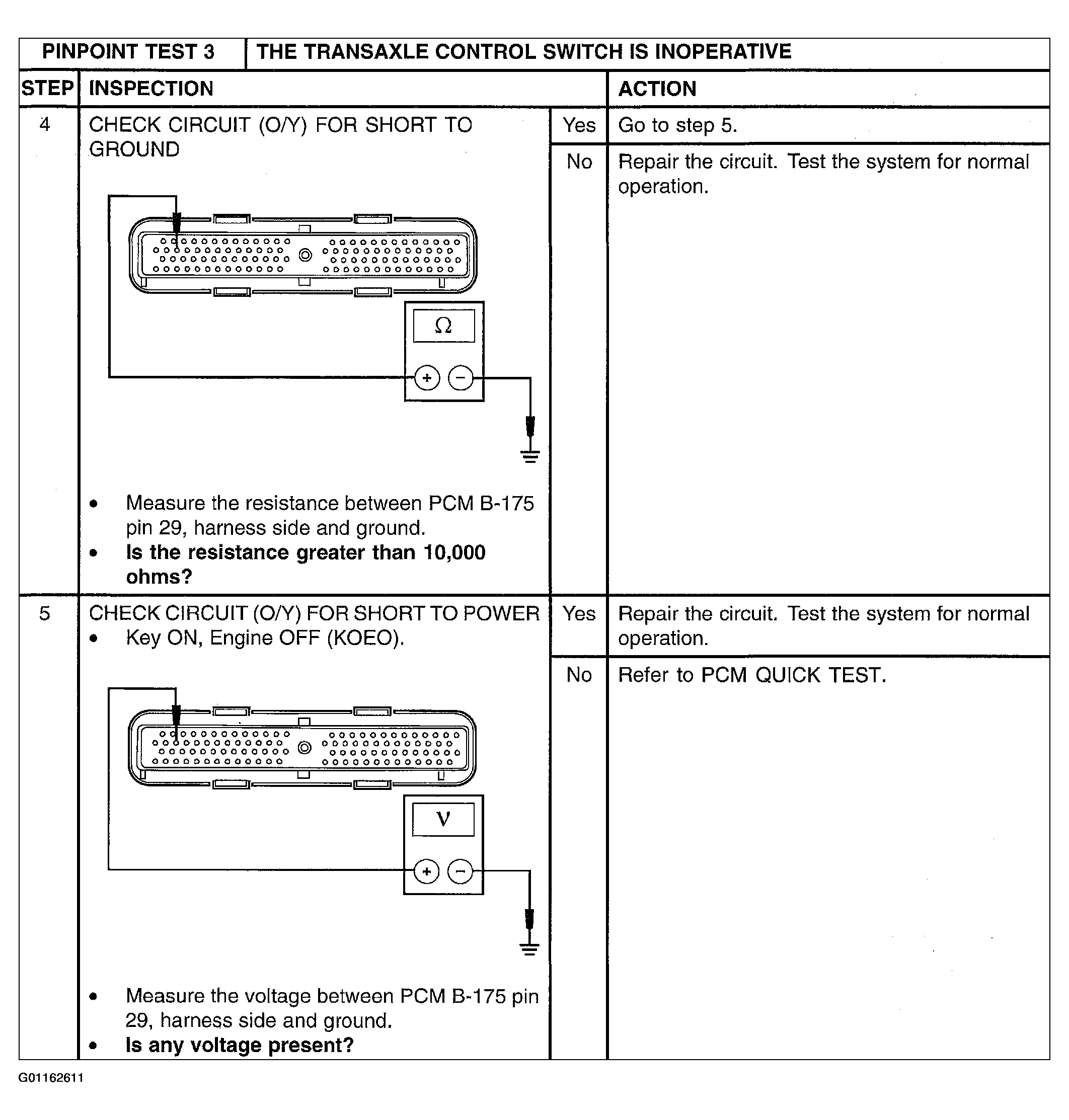

Fig 3: Pinpoint Test 3: The Transaxle Control Switch Is Inoperative (Steps 4-5)

Courtesy of MAZDA MOTORS CORP.
