Sunroof Unit Disassembly/Assembly

SUNROOF UNIT DISASSEMBLY/ASSEMBLY

1. Disconnect the negative battery cable.
2. Remove the deflector.
3. Remove the glass panel.

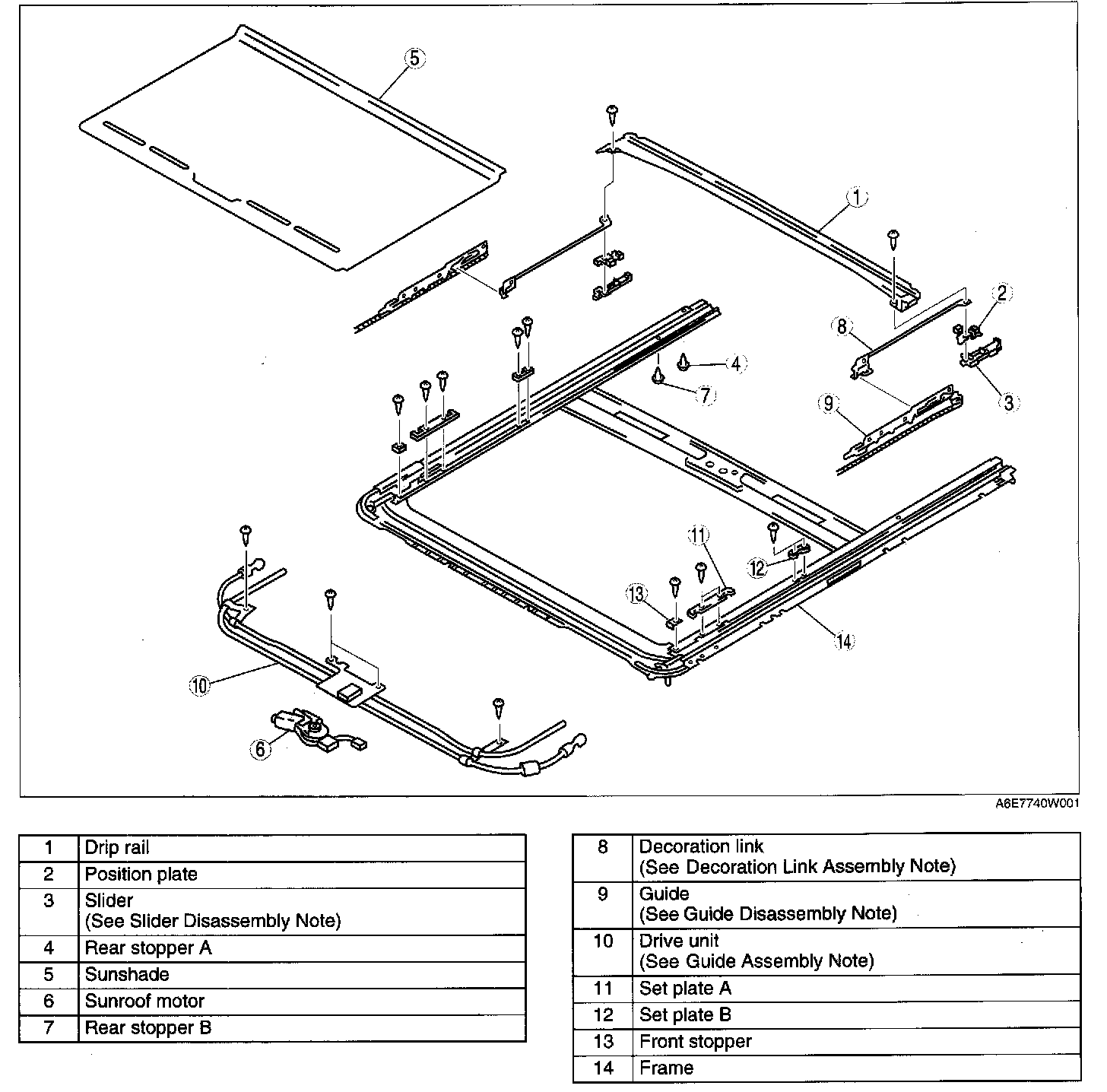

4. Disassemble in the order indicated in the table.
5. Assemble in the reverse order of disassembly.

Slider Disassembly Note




1. Remove the screw.
2. Slide the slider rearward, and remove it from the sunroof frame.

Guide Disassembly Note




1. Slide the guide rearward, and remove it from the sunroof frame.

Decoration Link Assembly Note




1. Set the pin in the decoration link.

Guide Assembly Note
1. Move the guide by hand until it comes to the front stopper.




2. Move the guide by hand until the center of the pin comes between marks A and B.
