Differential Assembly

DIFFERENTIAL ASSEMBLY

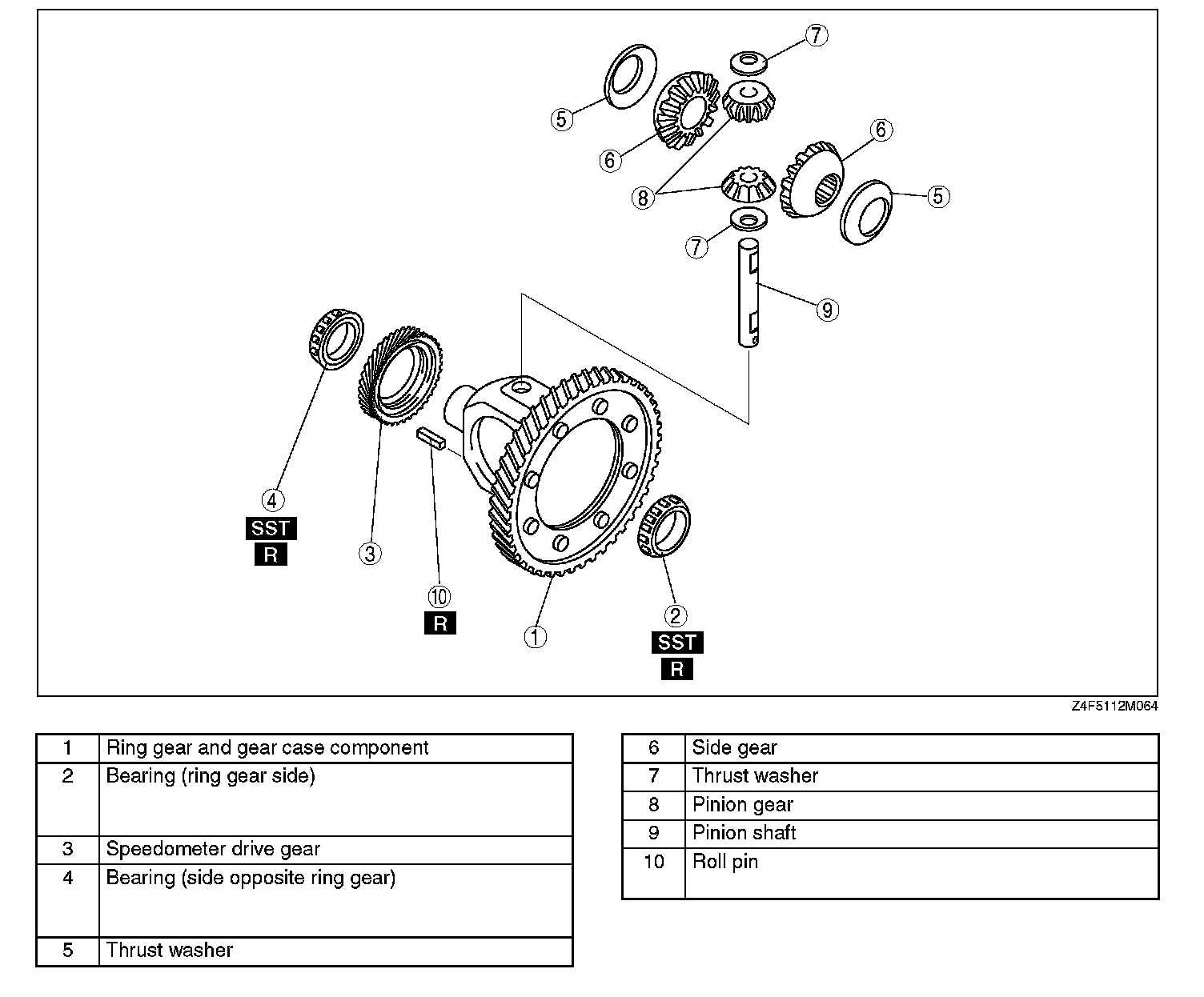

1. Assemble in the order shown in the figure.

Differential Assembly:
