Power Window SUBSWITCH Inspection

  1. Inspect for continuity between the power window subswitch terminals.
    • If not as specified, replace the power window subswitch.

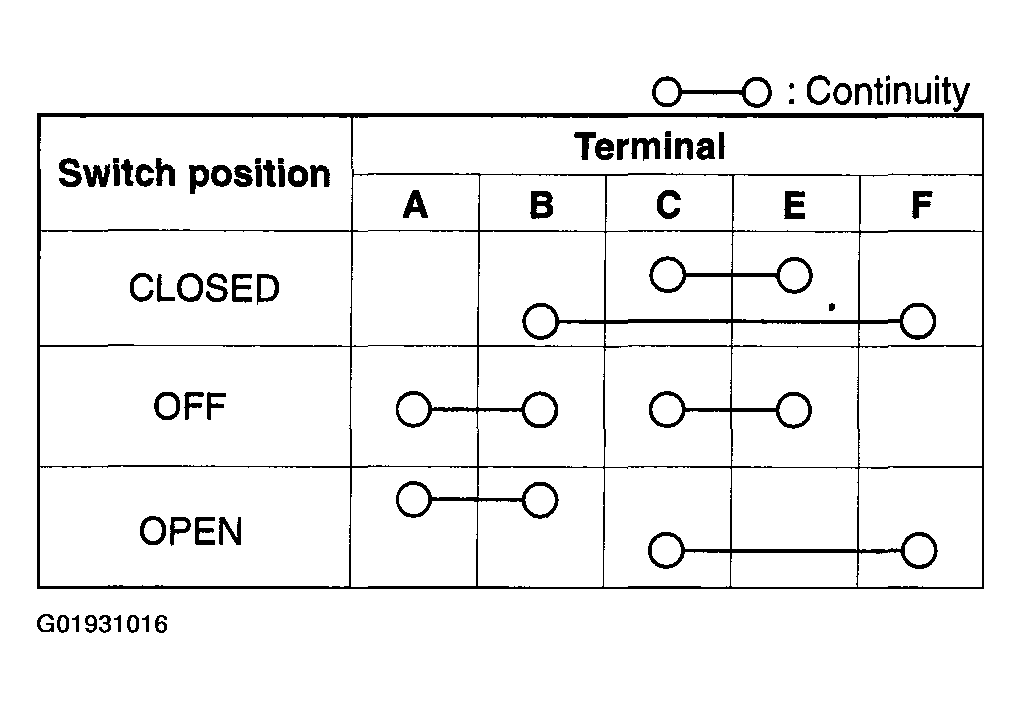

    Fig 1: Power Window Subswitch Continuity Chart
    G01931016Courtesy of MAZDA MOTORS CORP.
    Fig 2: Inspecting Continuity Between Power Window Subswitch Terminals
    G01931017Courtesy of MAZDA MOTORS CORP.
