Cruise Control Switch Inspection

Disconnect the negative battery cable.
Remove the driver-side air bag module. (See DUAL-STAGE DRIVER-SIDE AIR BAG MODULE .)
Disconnect the cruise control switch connector.
Measure the resistance and inspect for continuity between the cruise control switch terminals using an ohmmeter.
- If not as specified, replace the cruise control switch.

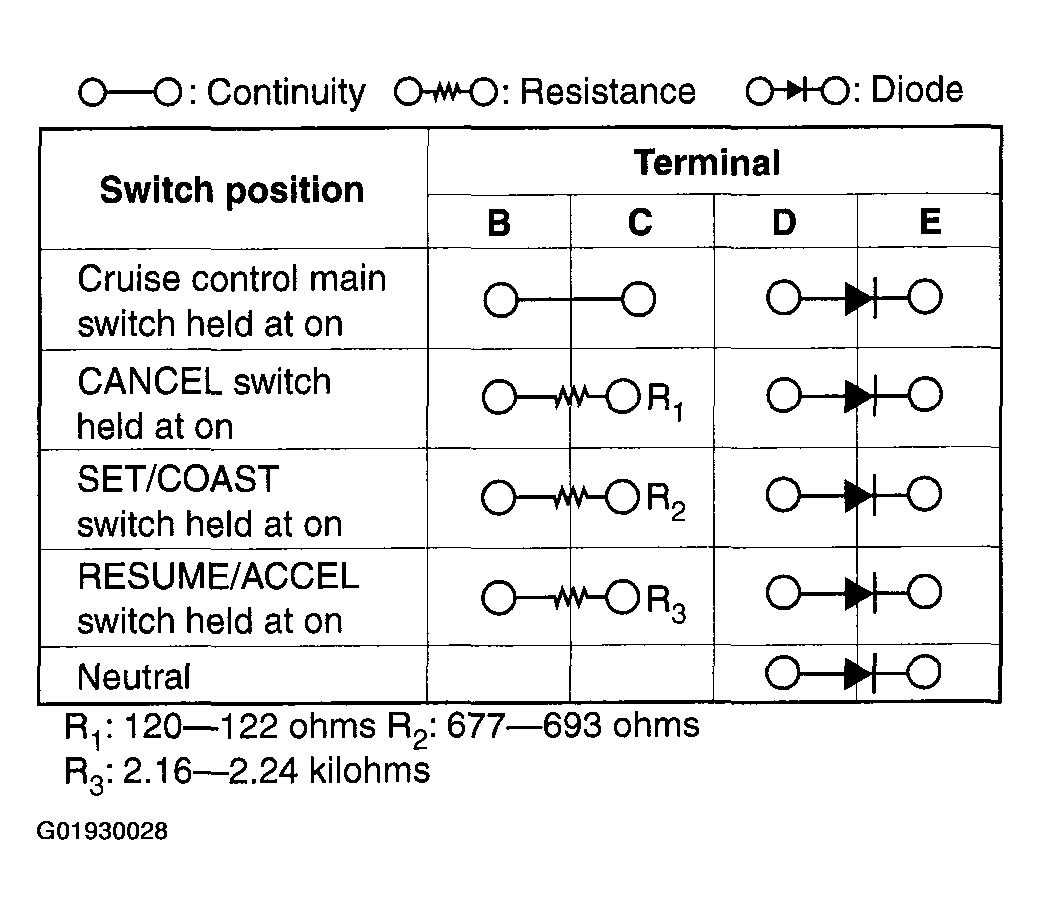

Fig 1: Continuity & Resistance Specifications - Cruise Control Switch
Courtesy of MAZDA MOTORS CORP.

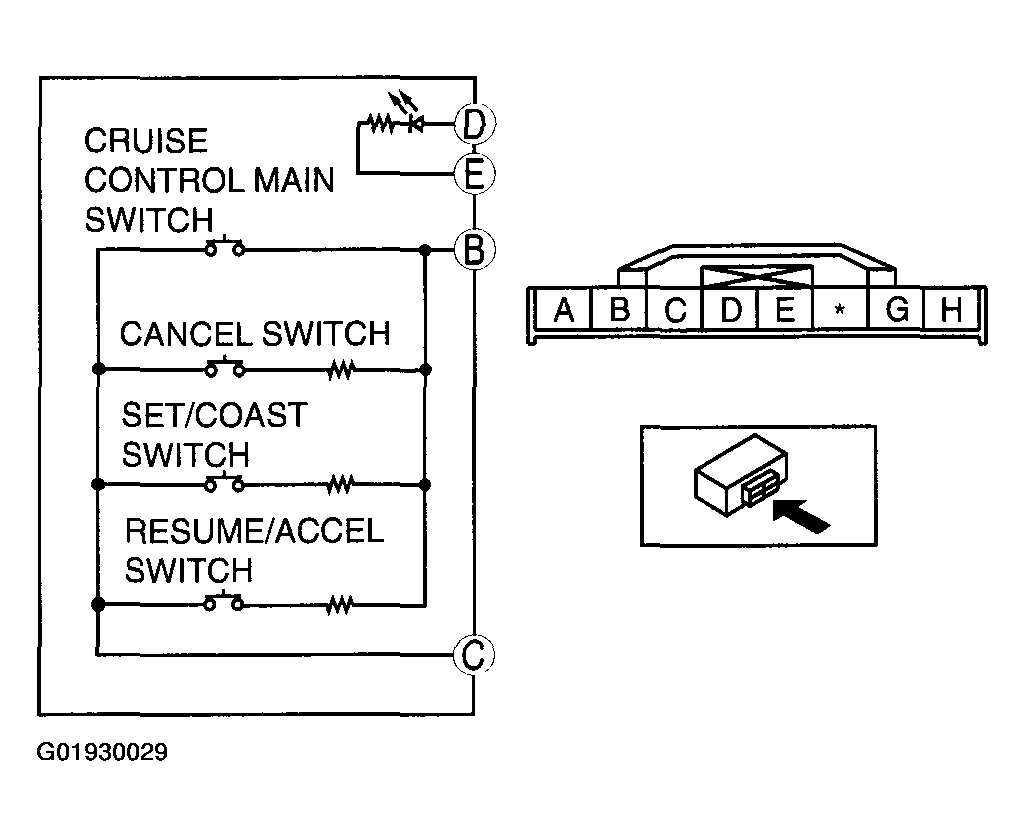

Fig 2: Continuity & Resistance Specifications - Cruise Control Main Switch
Courtesy of MAZDA MOTORS CORP.
