Remote Handle Lever Removal/Installation

  1. To remove the remote wire, remove the trunk side trim.
  2. Remove in the order indicated.

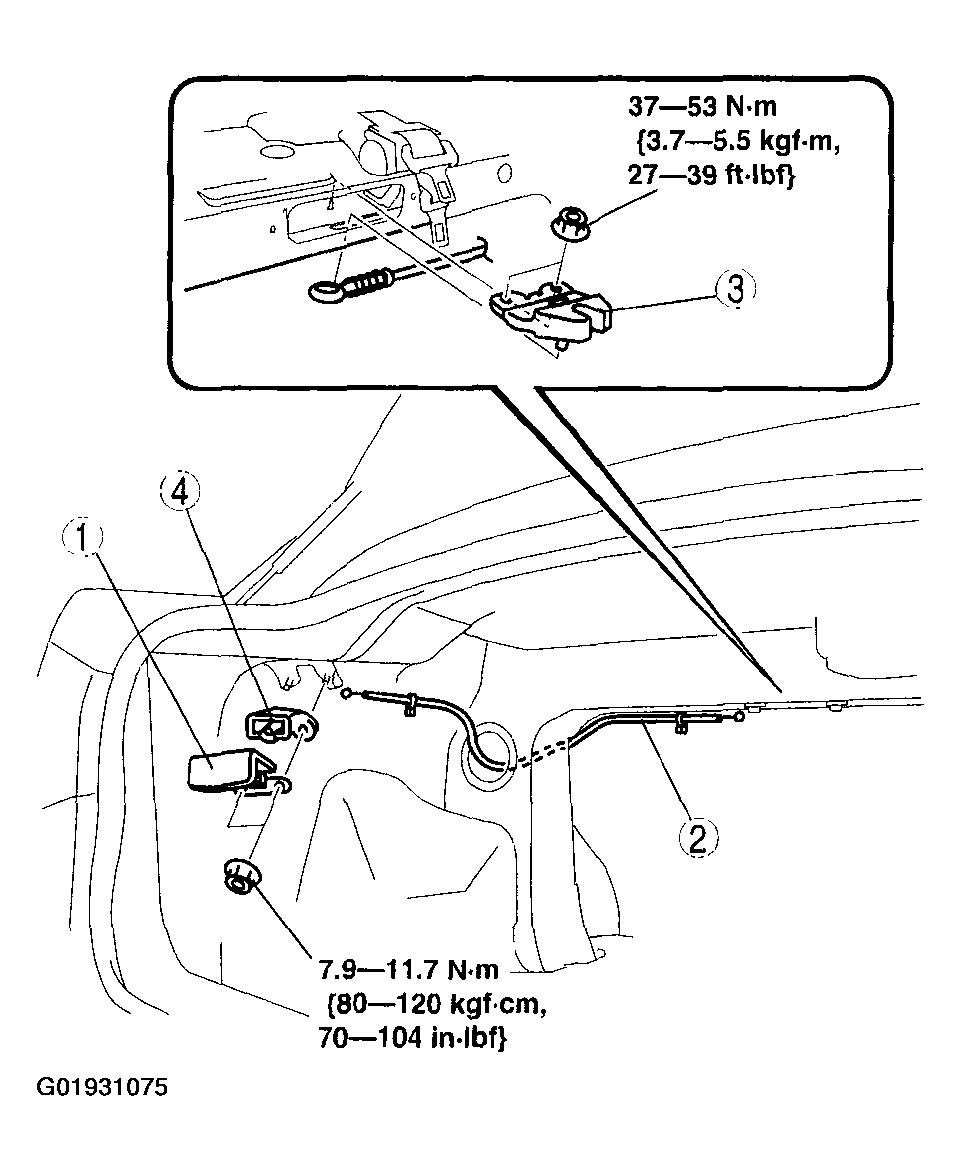

    Fig 1: Identifying Remote Handle Lever Components
    G01931075Courtesy of MAZDA MOTORS CORP.
    Fig 2: Remote Handle Lever Removal Sequence
    G01931074Courtesy of MAZDA MOTORS CORP.
  3. Install in the reverse order of removal.
