Technical Data [Steering System)
>>
Steering System
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Steering System

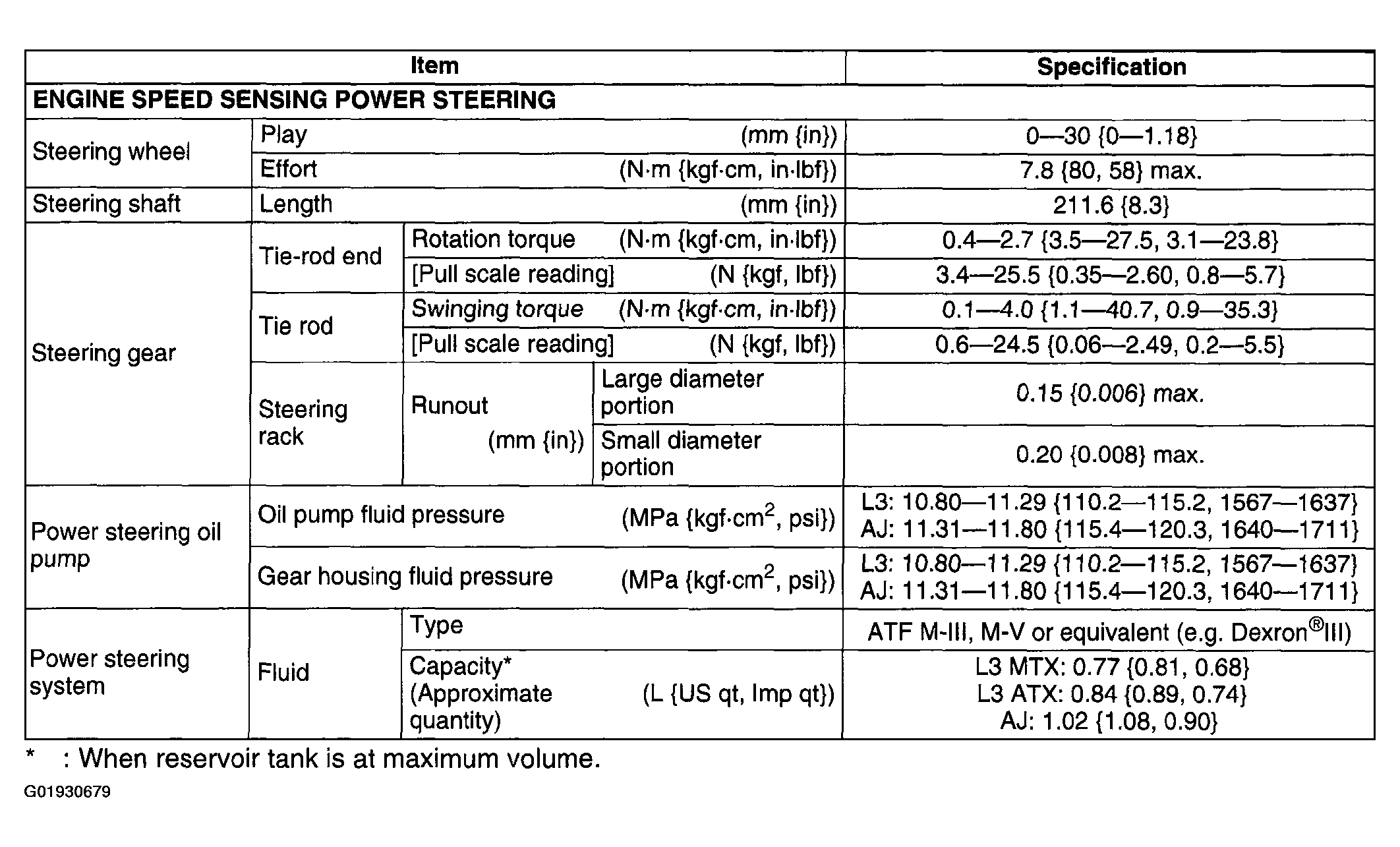

Fig 1: Steering System Specifications
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
