Manual Transaxle - Overhaul (A65M-R)
>>
Clutch Housing And Transaxle Case Components Assembly
>>
Assembly Components
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Assembly Components

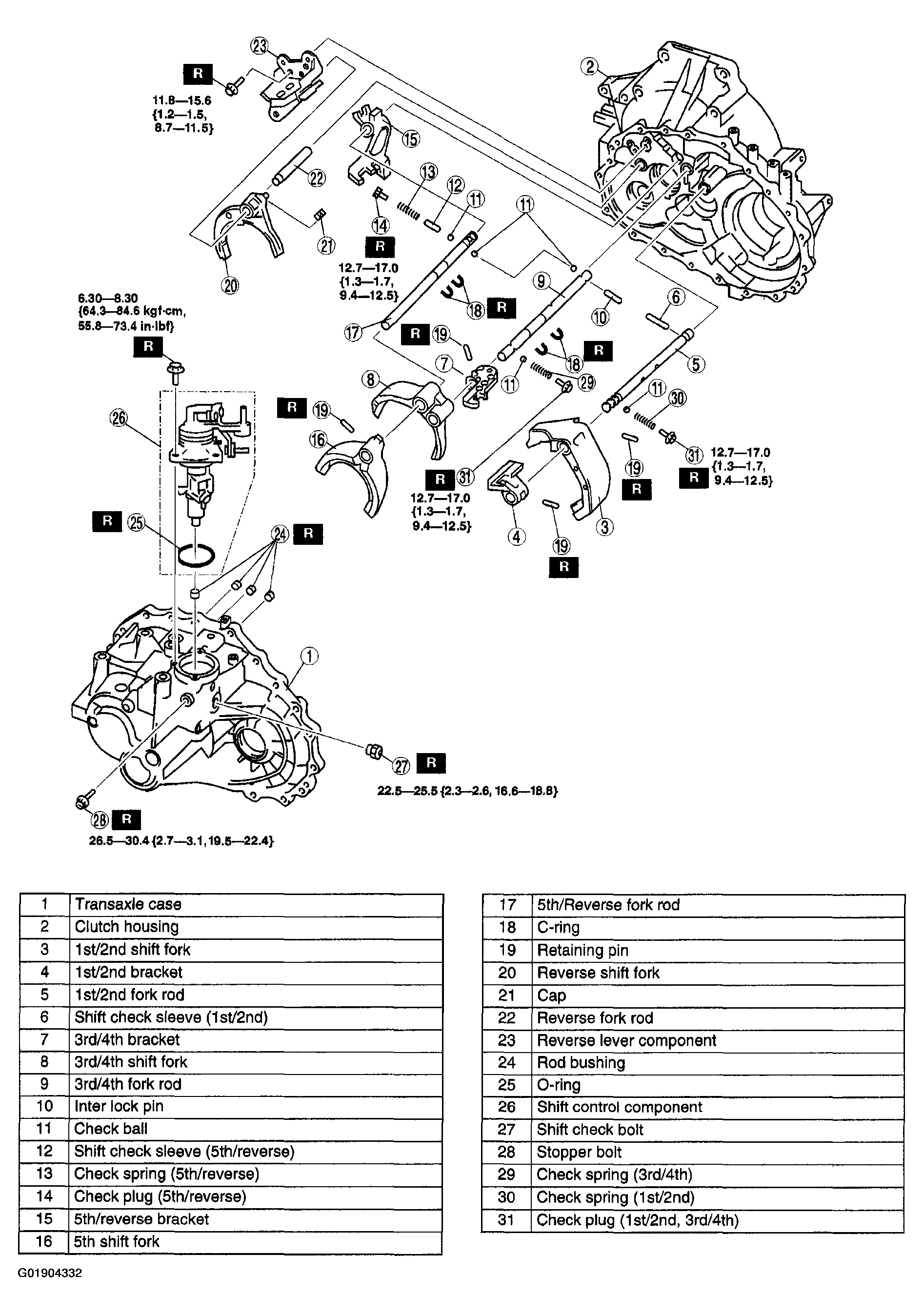

Fig 1: Assembling Clutch Housing & Transaxle Case (1 Of 2)
Courtesy of MAZDA MOTORS CORP.

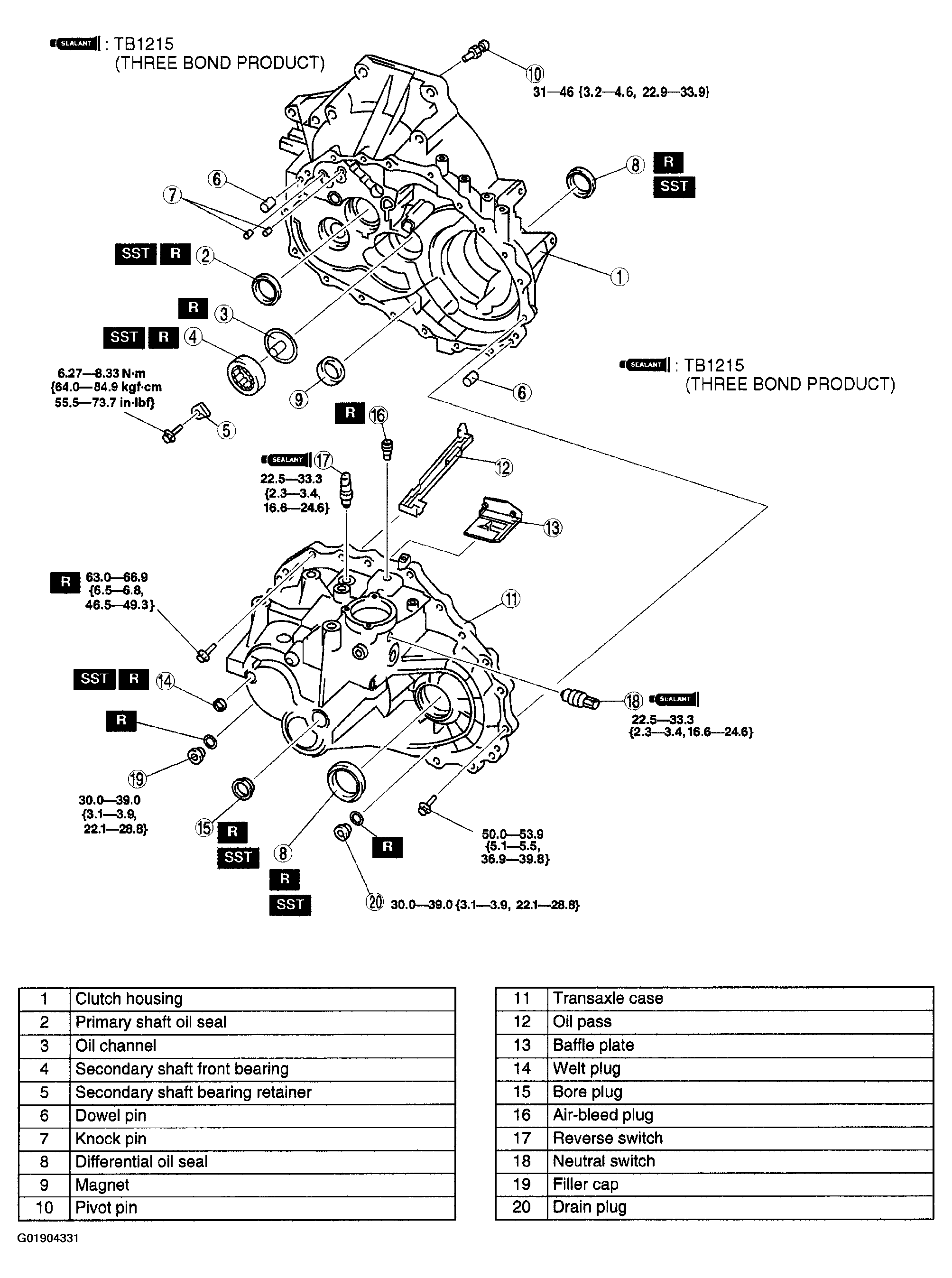

Fig 2: Assembling Clutch Housing & Transaxle Case (2 Of 2)
Courtesy of MAZDA MOTORS CORP.
