Primary Shaft Thrust Washer Assembly Note

Install the primary shaft thrust washer using the SSTs .

Fig 1: Installing Primary Shaft Thrust Washer
Courtesy of MAZDA MOTORS CORP.
Measure length C1 as shown in the figure.
- If it is not within the specification, adjust it by selecting a proper thrust washer from below.
- Select only one thrust washer.
Fig 2: Primary Shaft Thrust Washer Available Sizes
Courtesy of MAZDA MOTORS CORP.

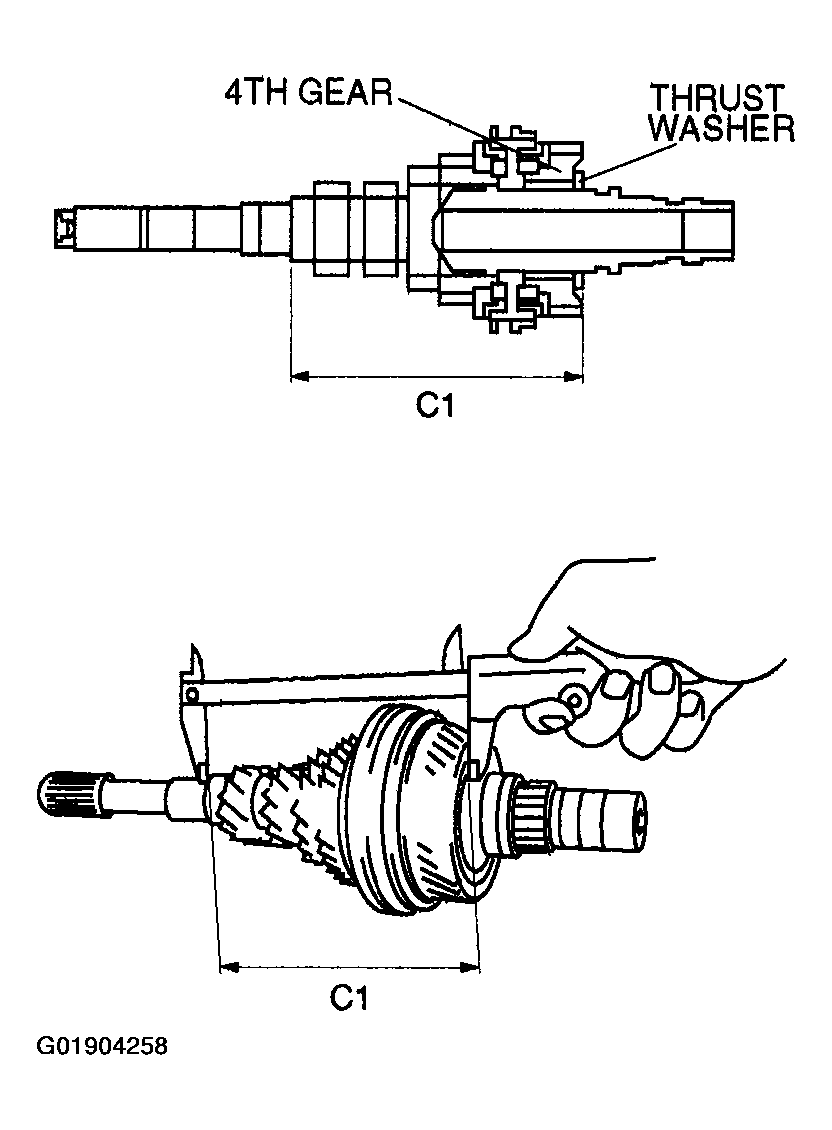

Fig 3: Measuring Length C1
Courtesy of MAZDA MOTORS CORP.

Specification
1. C1: 154.7-154.8 mm {6.091-6.094 in}
