1ST Bushing Assembly Note

CAUTION:
  • The shaft can be damaged when installing the 1st bushing if the SST touches the secondary shaft. Install the SST to the shaft without touching the shaft.
  1. Place the 1st bushing, and assemble the SST  as shown in the figure.

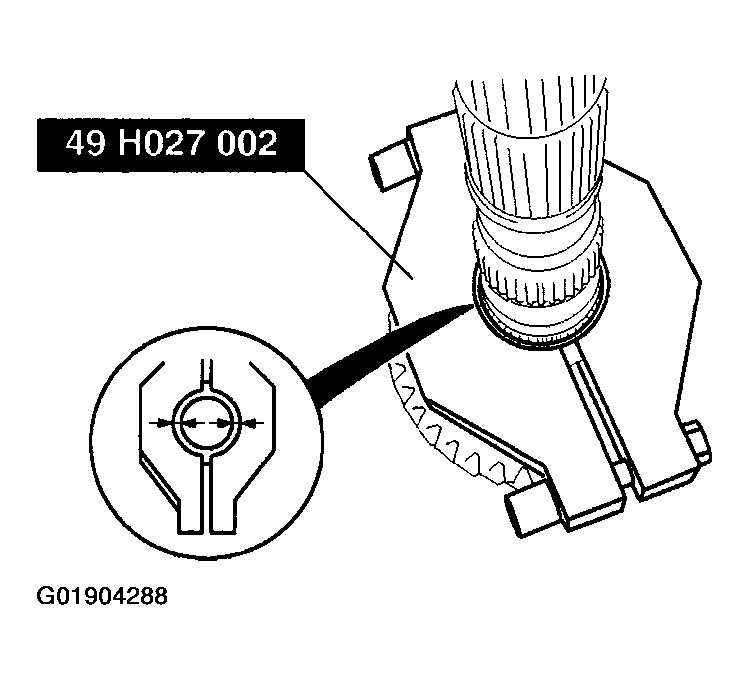

    Fig 1: Installing 1st Bushing Into SST
    G01904288Courtesy of MAZDA MOTORS CORP.
  2. Install the 1st bushing using the SSTs  .
    Fig 2: Installing 1st Bushing
    G01904289Courtesy of MAZDA MOTORS CORP.
