Technical Data [Manual Transaxle A65M-R)
>>
Technical Data
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Technical Data

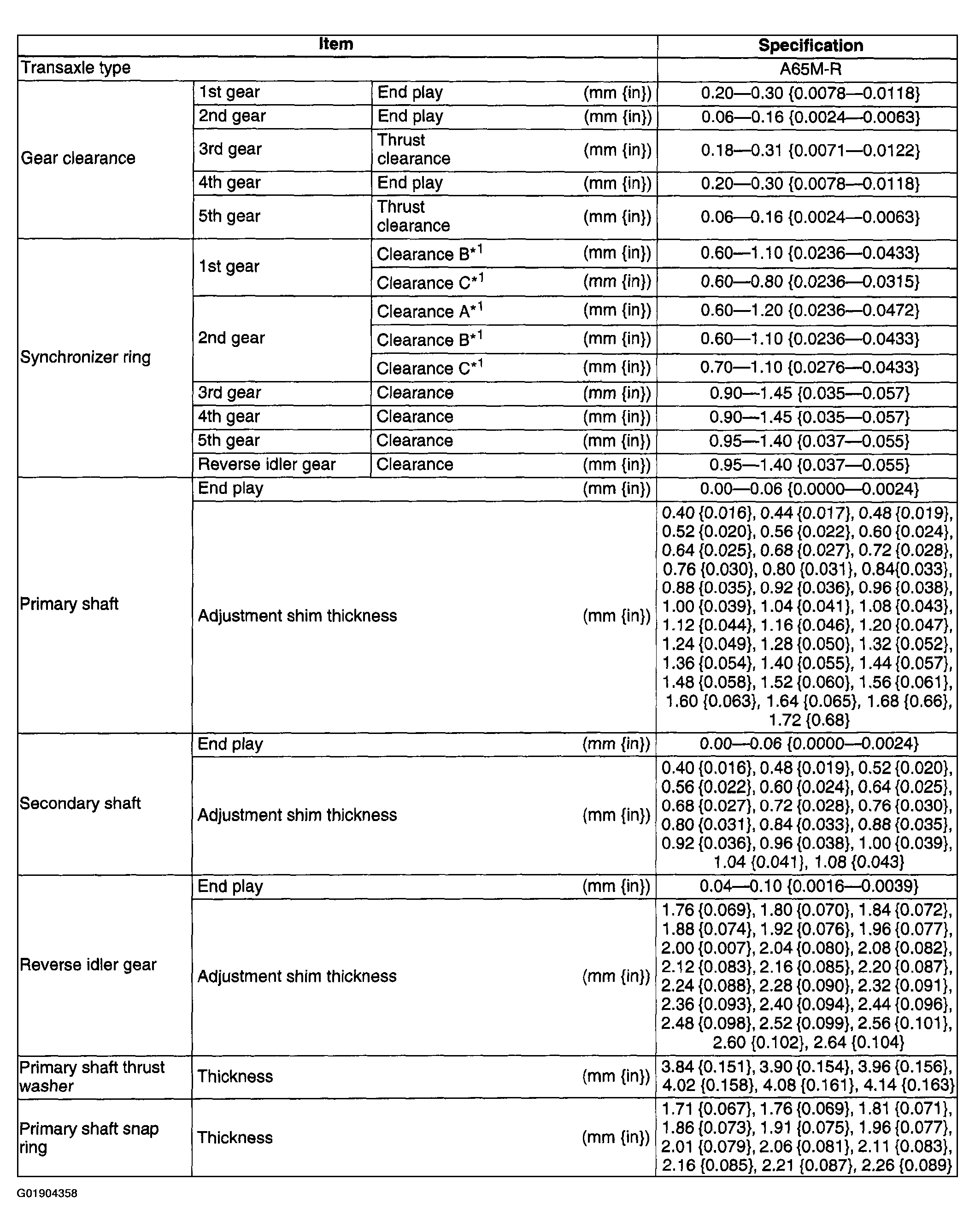

Fig 1: Technical Data (1 Of 2)
Courtesy of MAZDA MOTORS CORP.

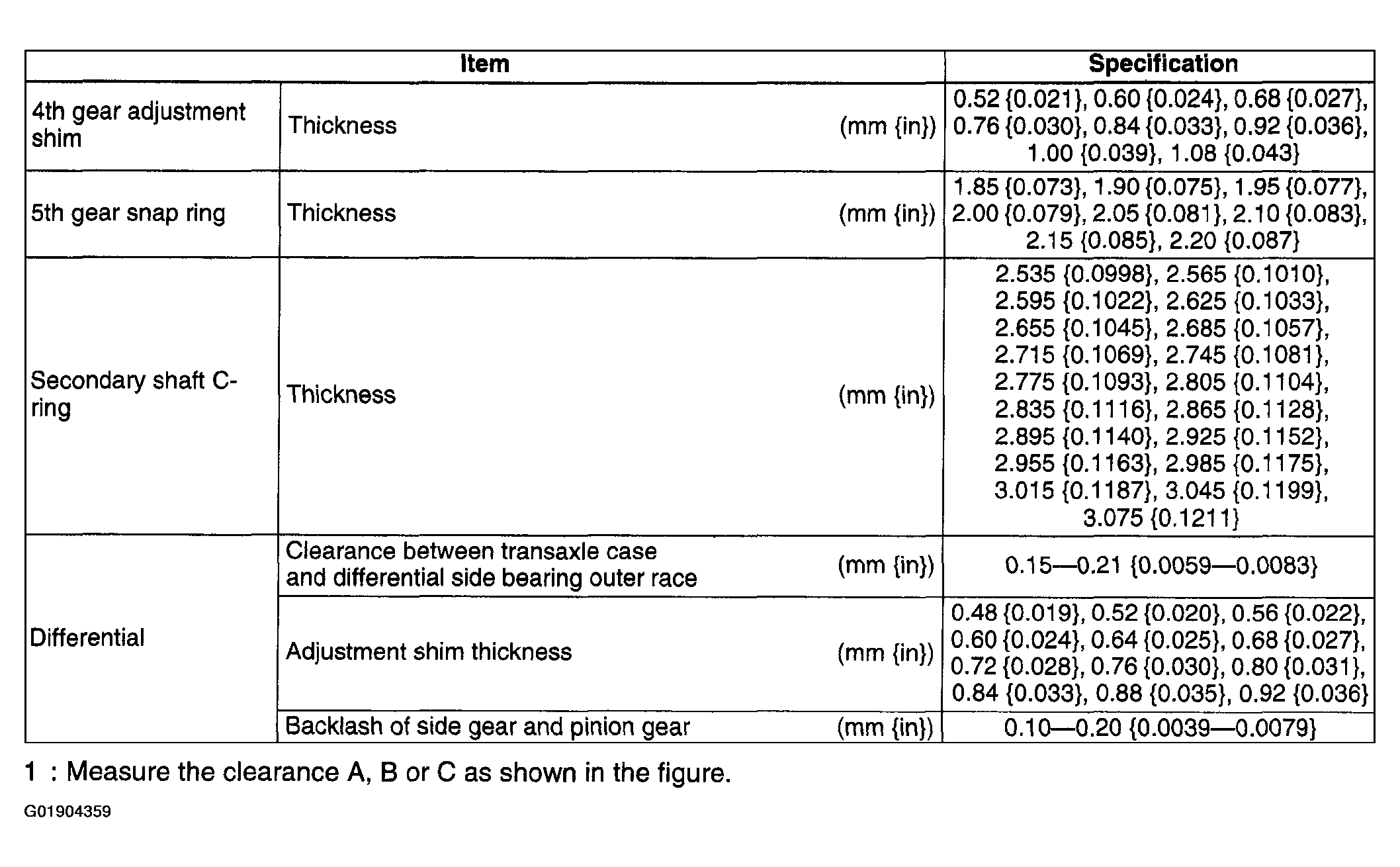

Fig 2: Technical Data (2 Of 2)
Courtesy of MAZDA MOTORS CORP.

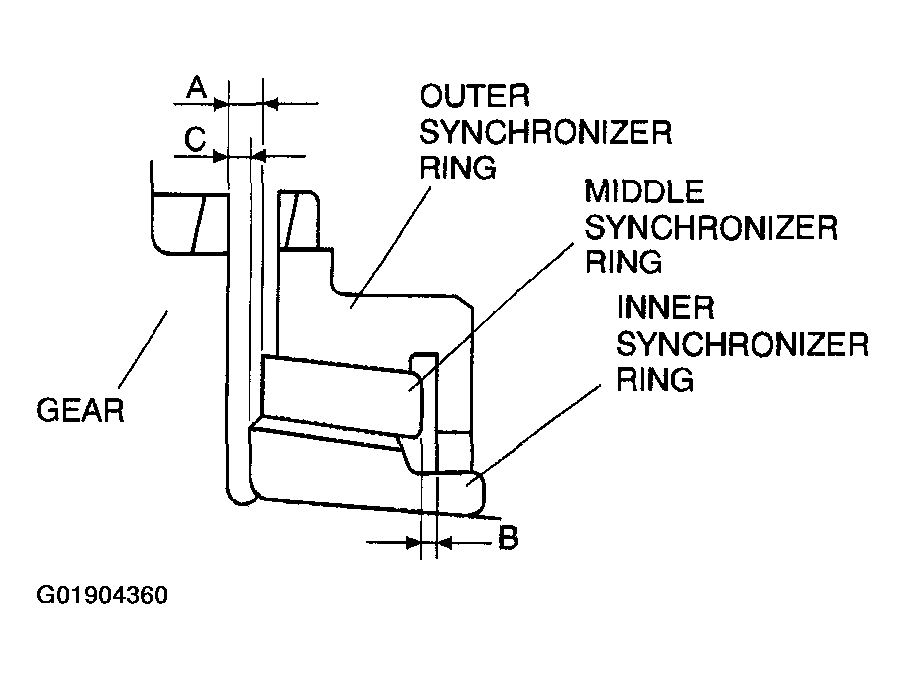

Fig 3: Measuring Clearances A, B & C
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
