Module Communication Pinpoint Test 1: 4WABS Control Module Does Not Respond To WDS Or Equivalent Tester

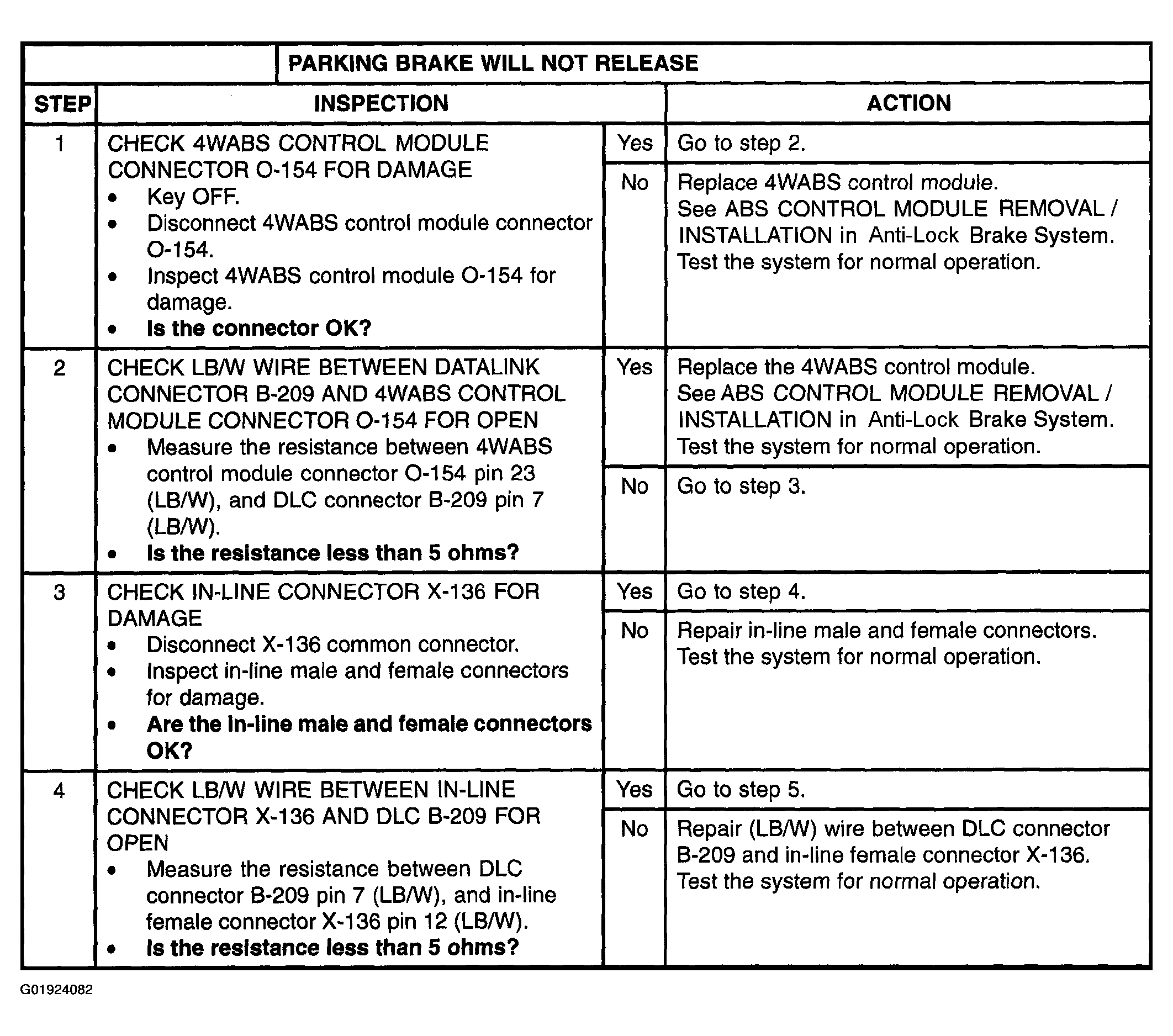

Fig 1: Diagnosis Procedure - Module Communication Pinpoint Test 1: 4WABS Control Module Does Not Respond To WDS Or Equivalent Tester (Steps 1-4)

Courtesy of MAZDA MOTORS CORP.

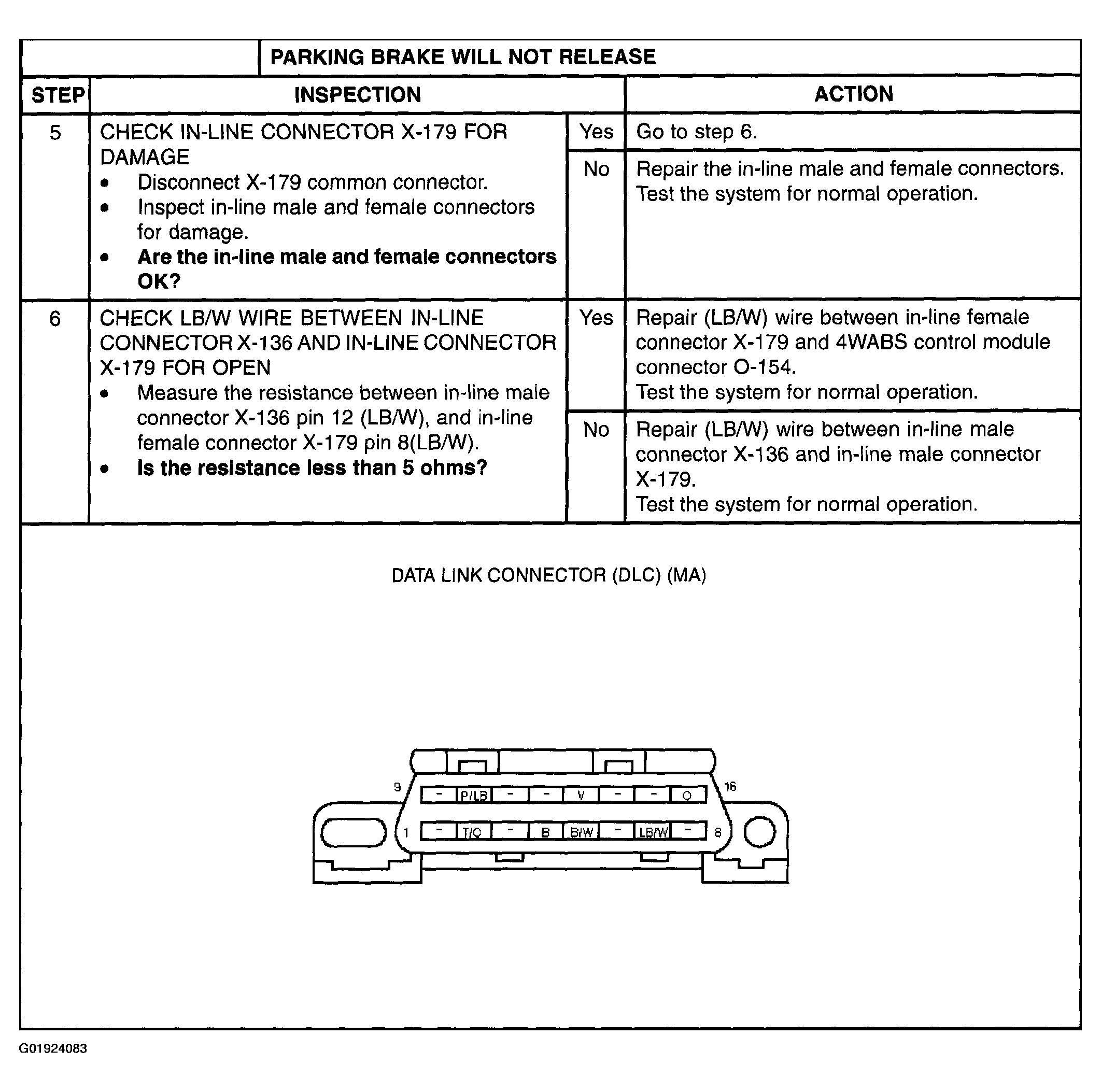

Fig 2: Diagnosis Procedure - Module Communication Pinpoint Test 1: 4WABS Control Module Does Not Respond To WDS Or Equivalent Tester (Steps 5-6)

Courtesy of MAZDA MOTORS CORP.

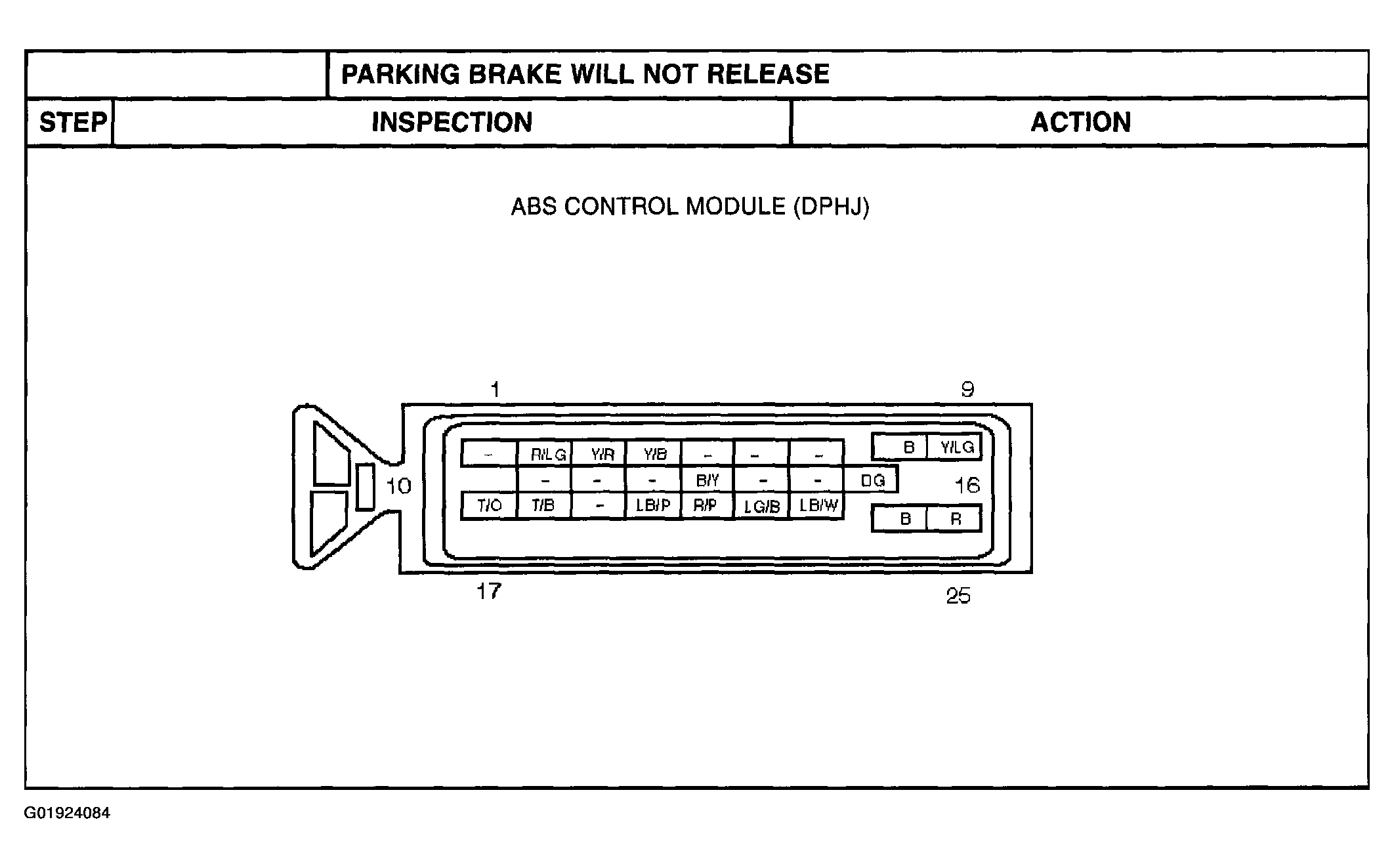

Fig 3: ABS Control Module (DPHJ) Connector View & Terminal Identification

Courtesy of MAZDA MOTORS CORP.

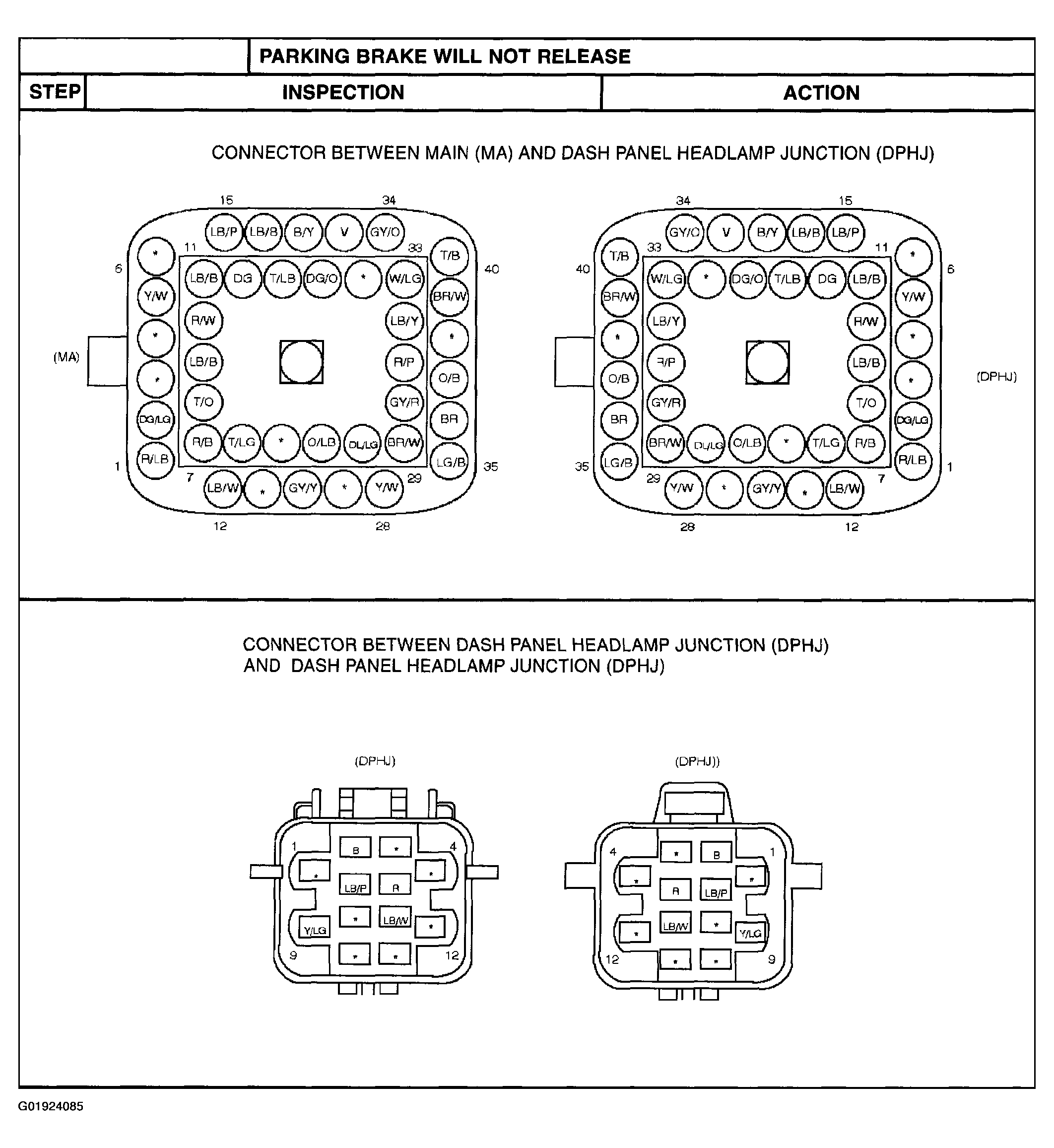

Fig 4: Connector Between Main (MA) and Dash Panel Headlamp Junction (DPHJ) and Connector Between Dash Panel Headlamp Junction (DPHJ) and Dash Panel Headlamp Junction (DPHJ) Connector Views & Terminal Identification

Courtesy of MAZDA MOTORS CORP.
