Module Communication Pinpoint Test 2: No Module/Network Communication - ISO 9141 Network

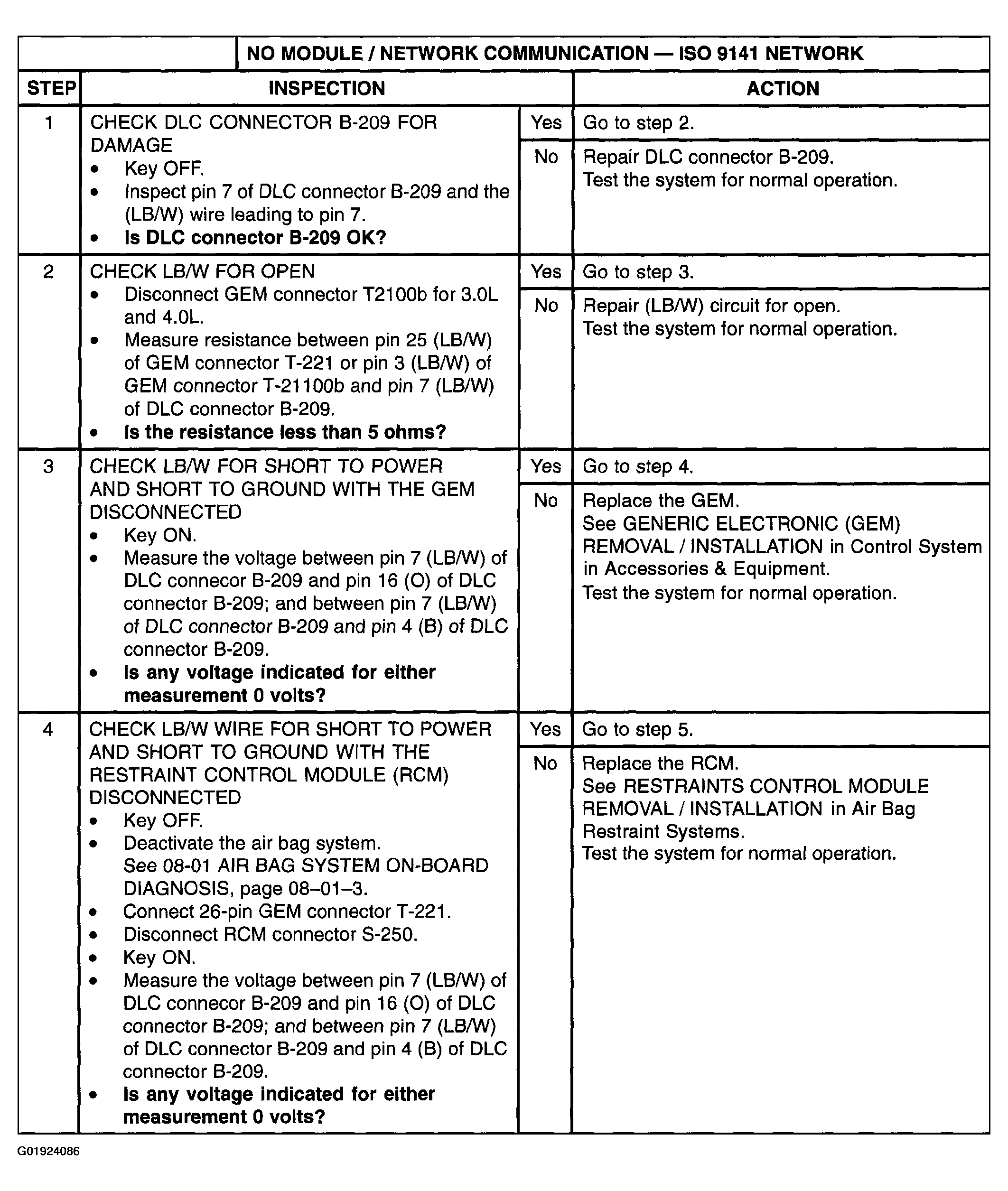

Fig 1: Diagnosis Procedure - Module Communication Pinpoint Test 2: No Module/Network Communication - ISO 9141 Network (Steps 1-4)
G01924086Courtesy of MAZDA MOTORS CORP.

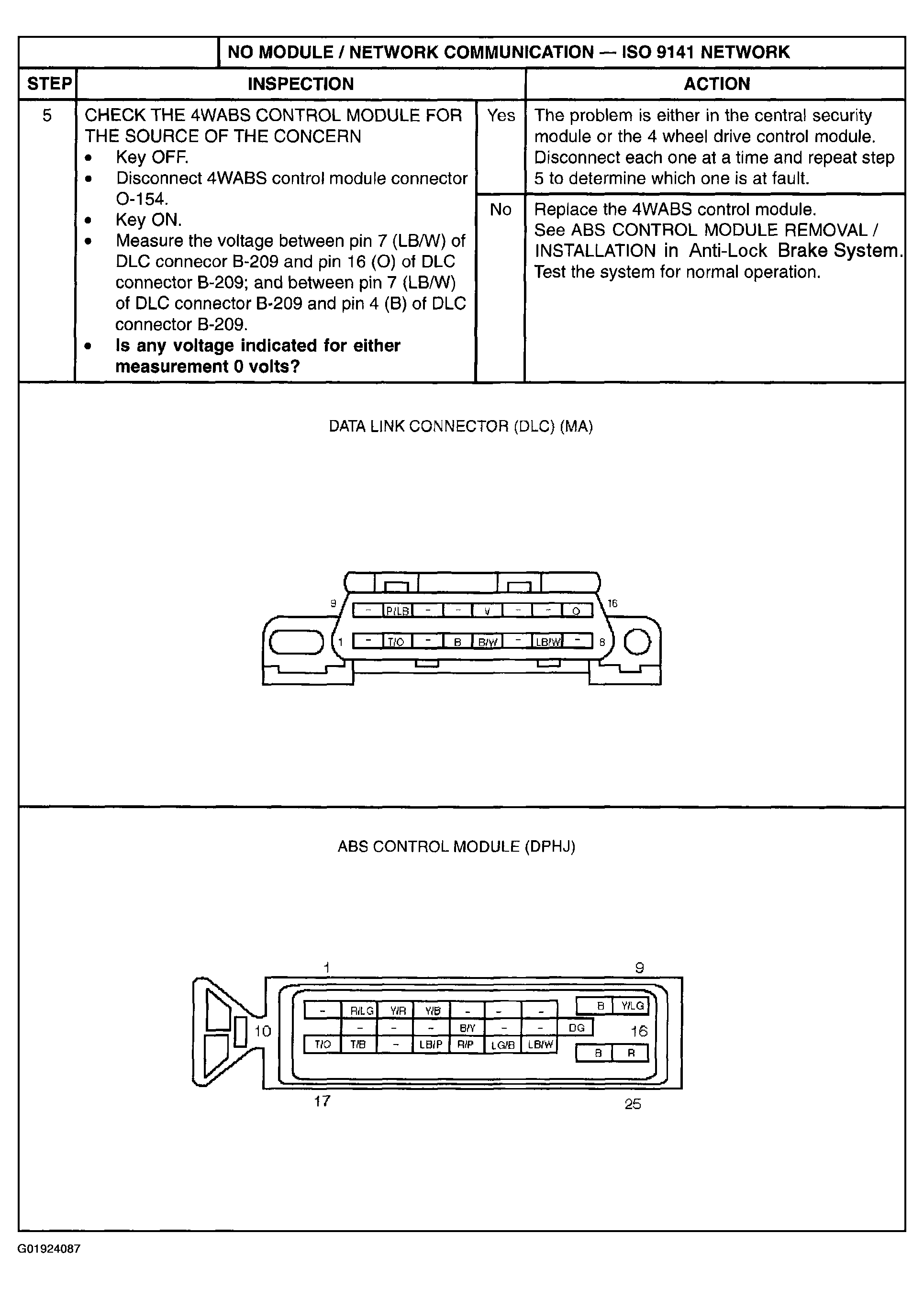

Fig 2: Diagnosis Procedure - Module Communication Pinpoint Test 2: No Module/Network Communication - ISO 9141 Network (Step 5)
G01924087Courtesy of MAZDA MOTORS CORP.

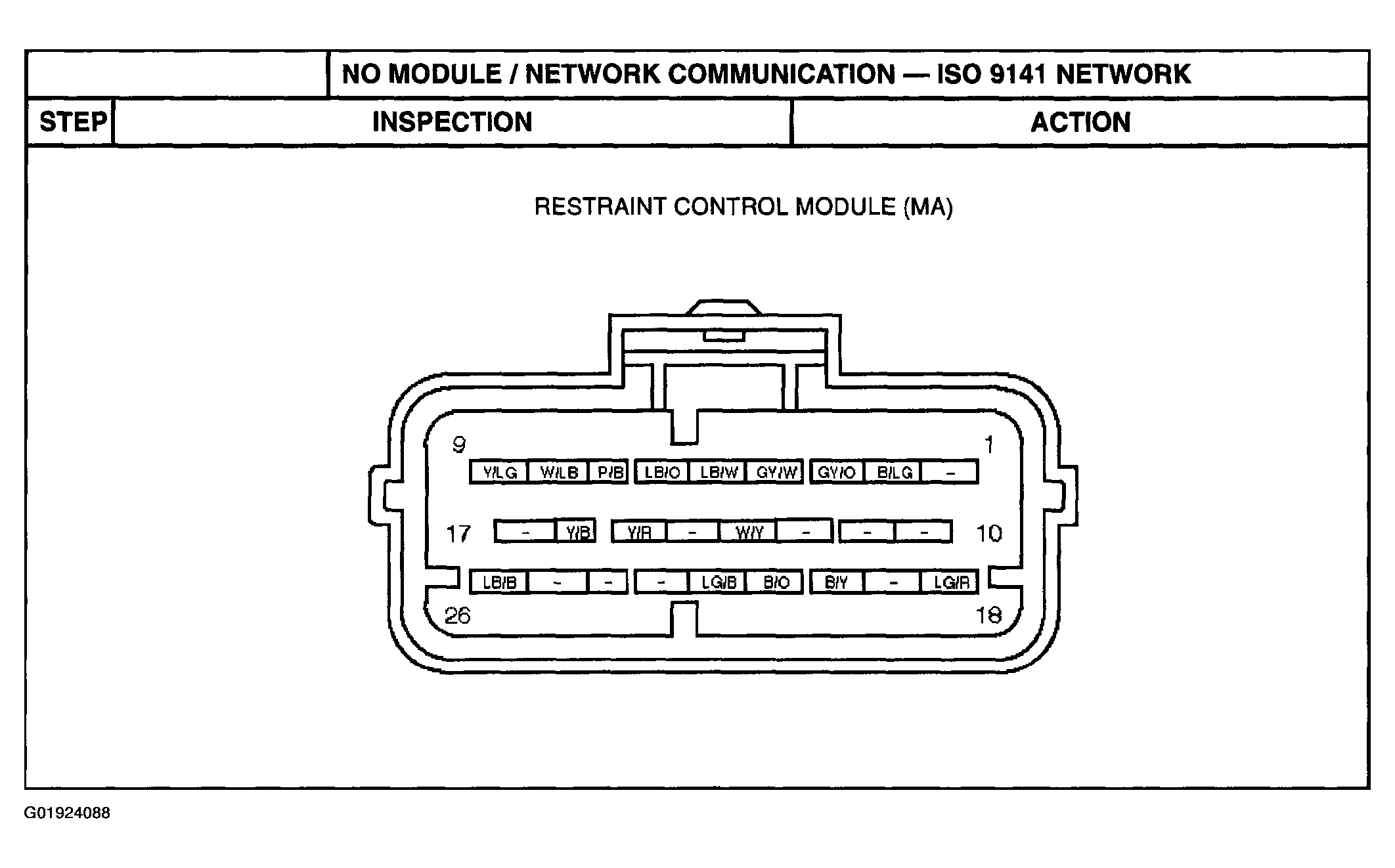

Fig 3: Restraint Control Module (MA) Connector View & Terminal Identification
G01924088Courtesy of MAZDA MOTORS CORP.

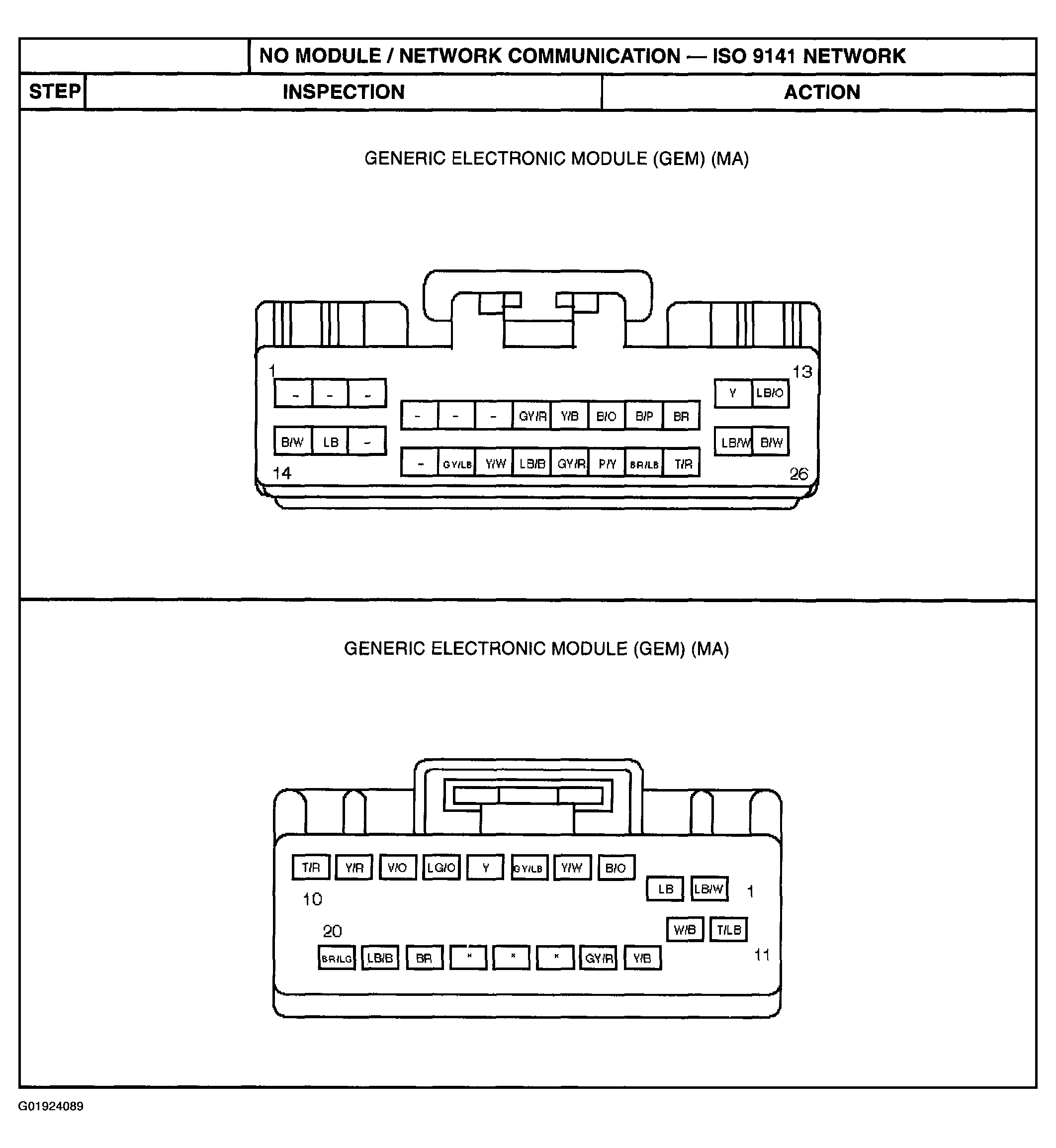

Fig 4: Generic Electronic Module (GEM) (MA) Connector Views & Terminal Identification
G01924089Courtesy of MAZDA MOTORS CORP.
