Restraints Control Module Connector End View (C2041)

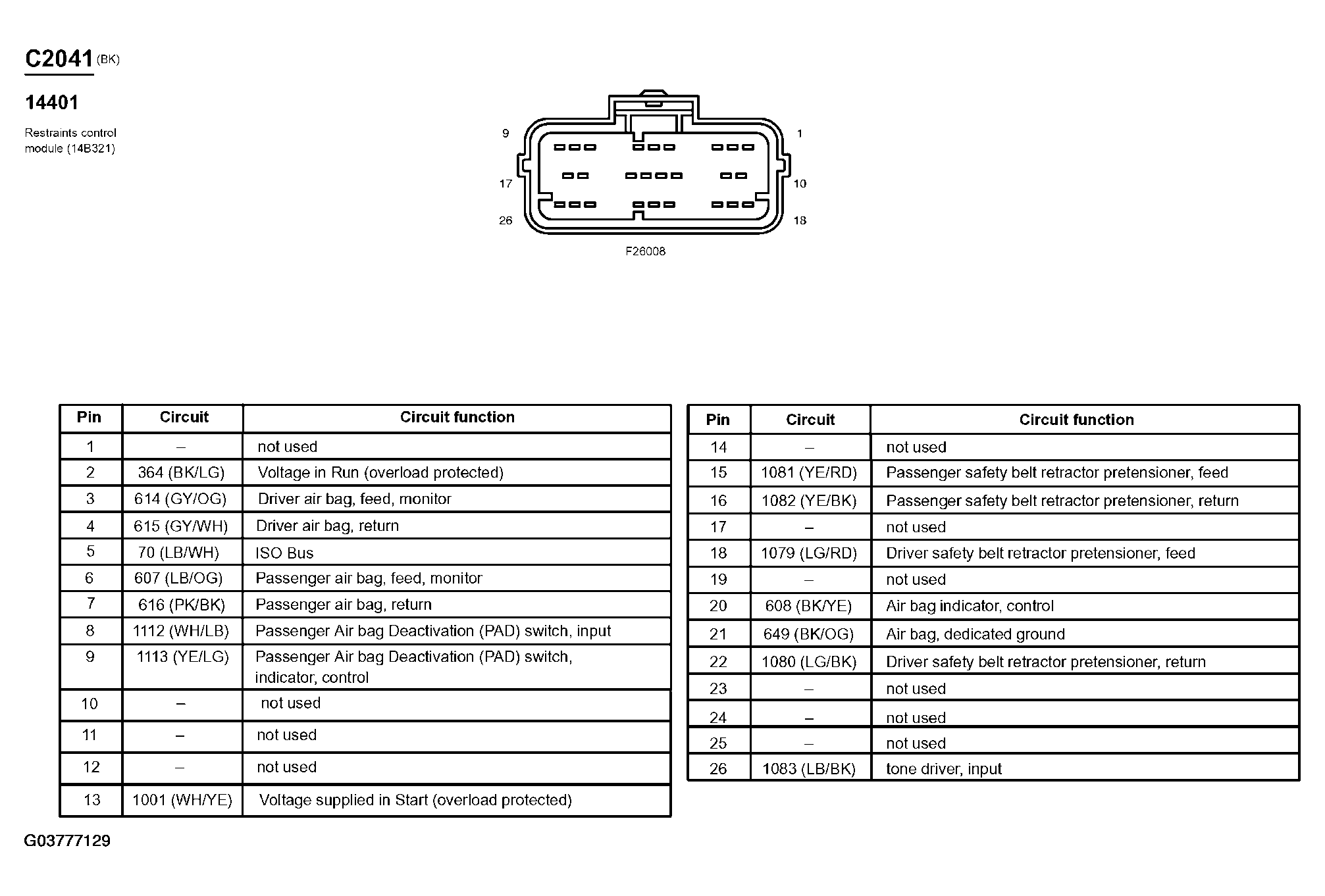

Fig 1: Restraints Control Module Connector End View (C2041)
G03777129Courtesy of FORD MOTOR CO.
