Specifications - Suspension: Notes

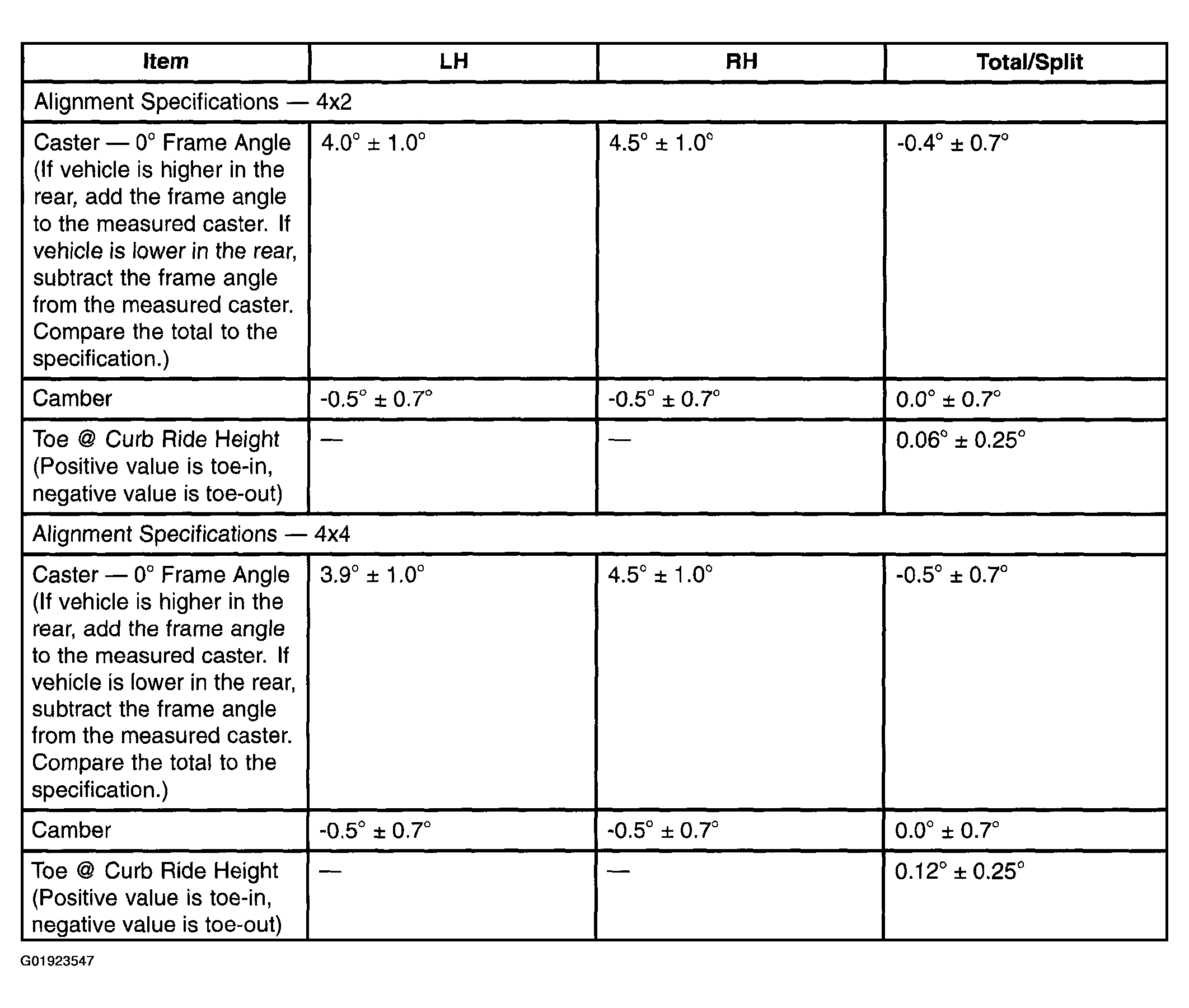

Fig 1: Suspension - Specifications

G01923547

Courtesy of MAZDA MOTORS CORP.
