Ignition Switch Is Inoperative

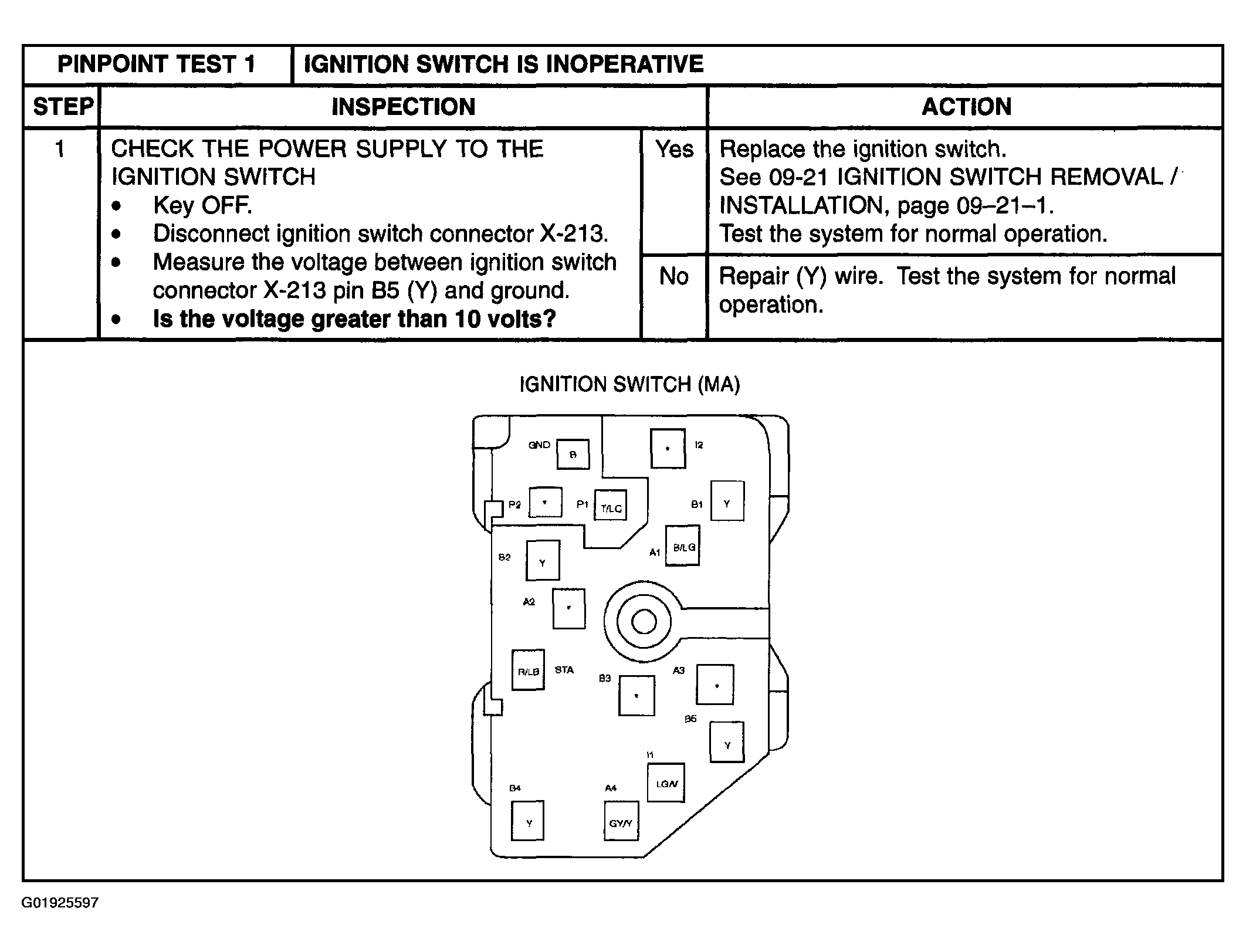

Fig 1: Diagnosis Procedure -- Ignition Switch Is Inoperative
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
