No Power In Start

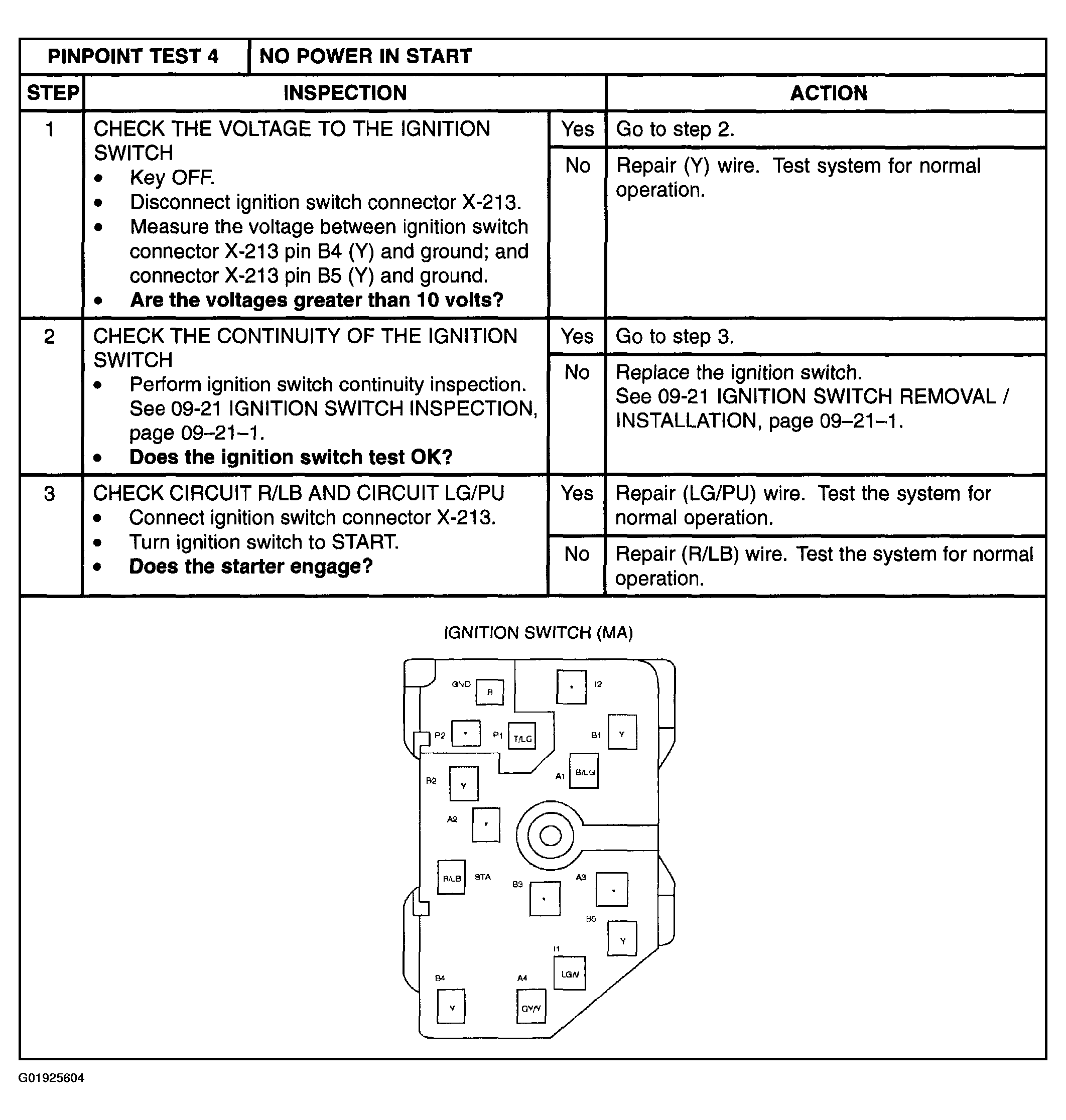

Fig 1: Diagnosis Procedure -- No Power In Start
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
