General Module

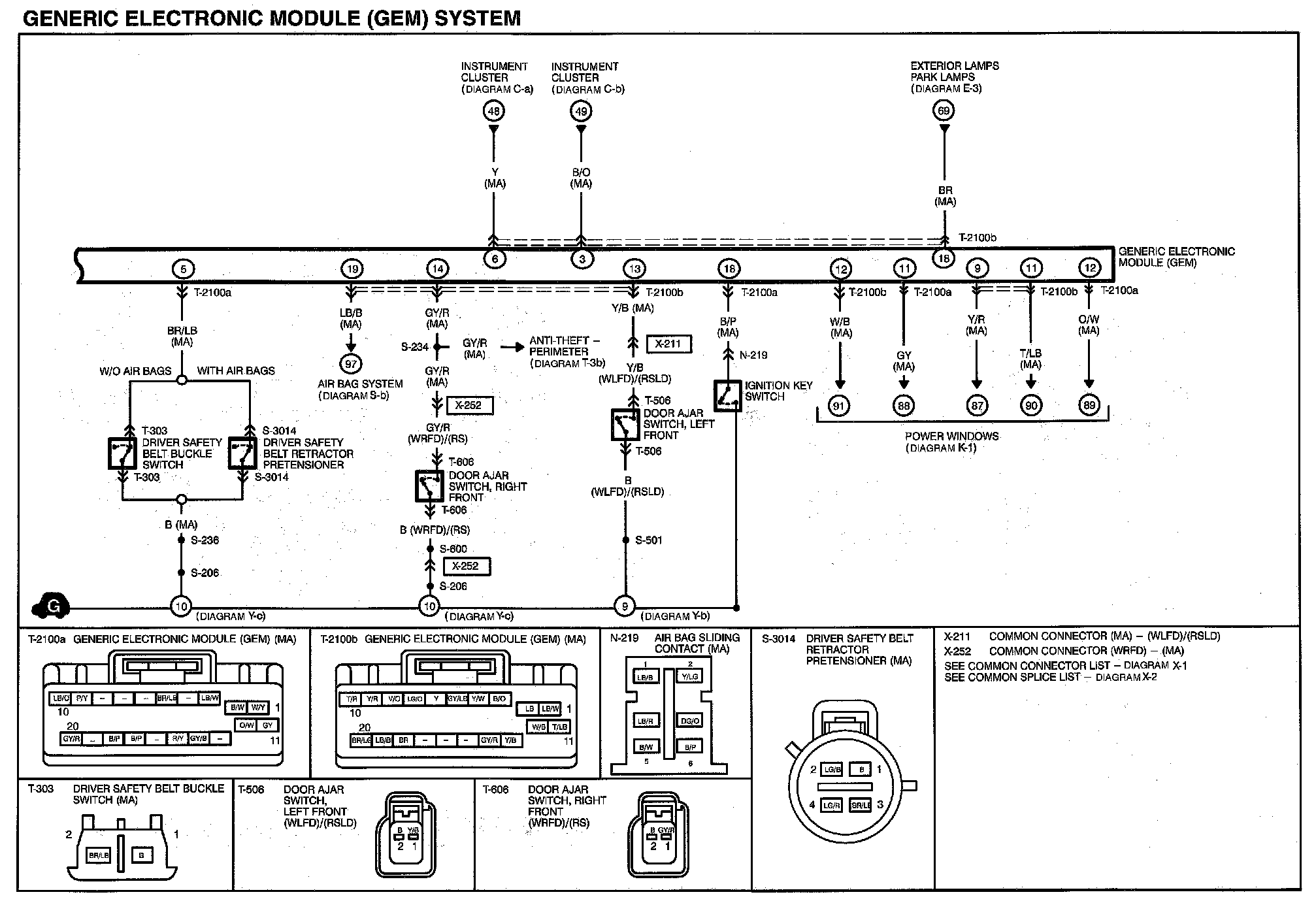

Diagram T-2a:

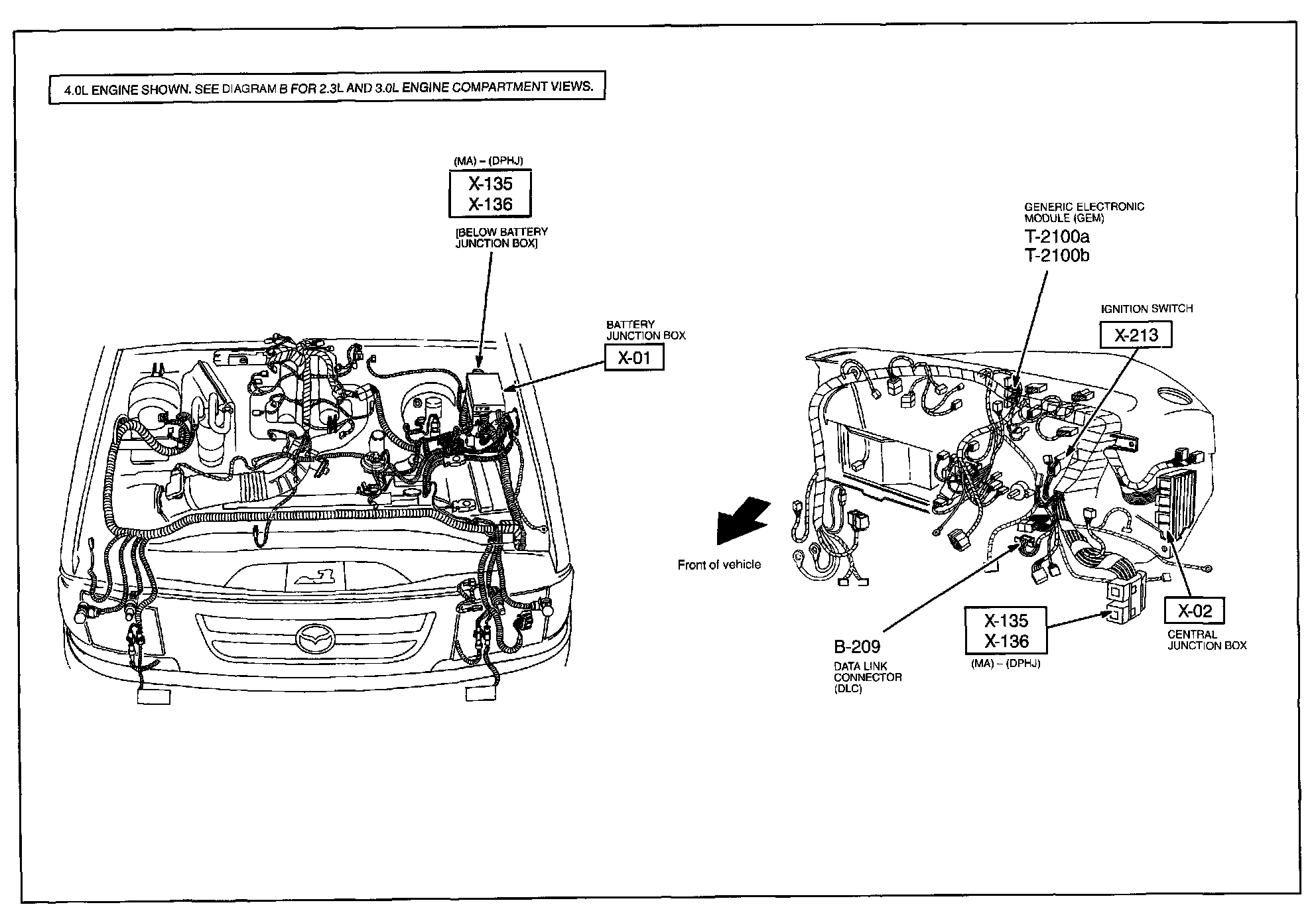

Routing View T-2a:

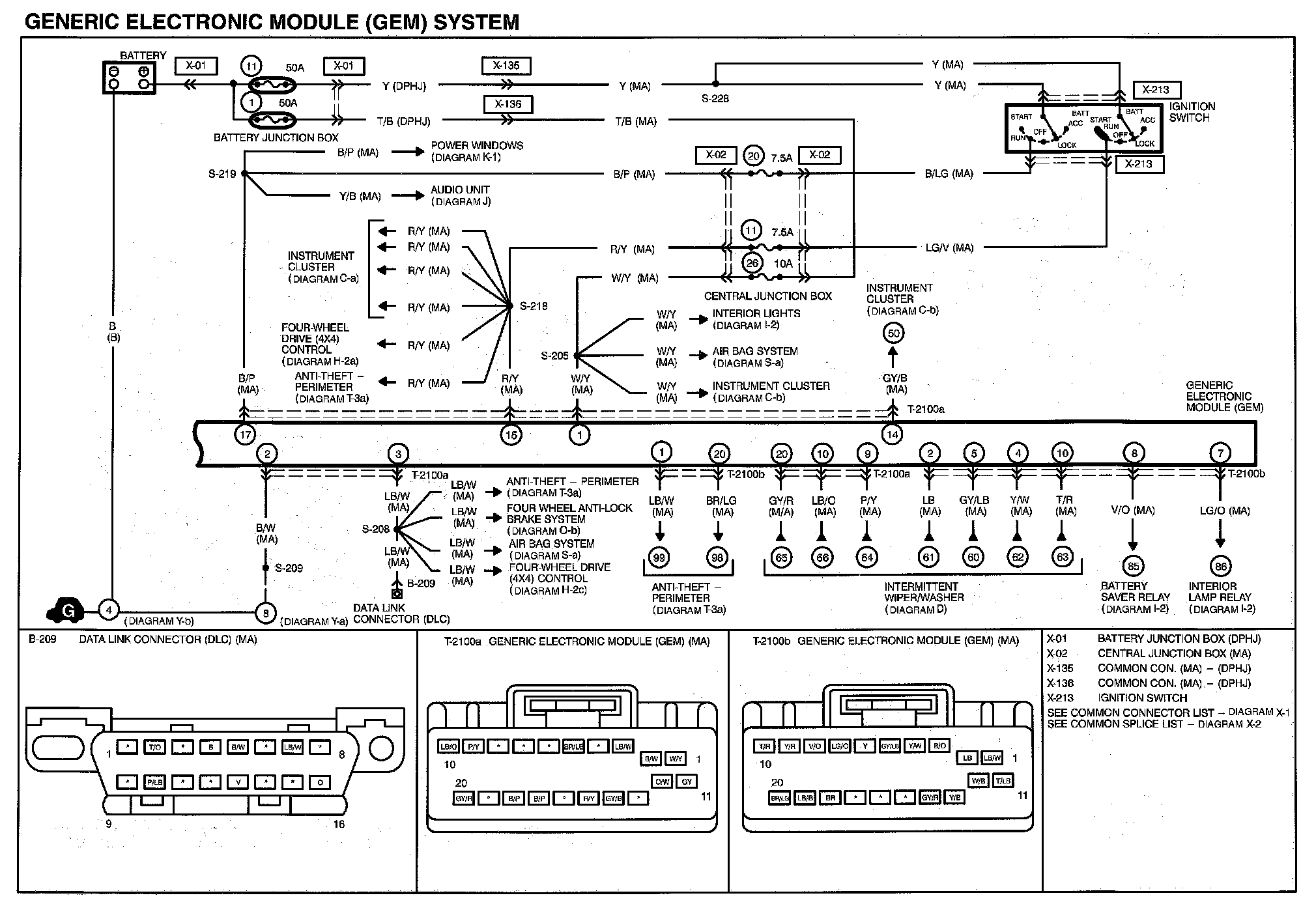

Diagram T-2b:

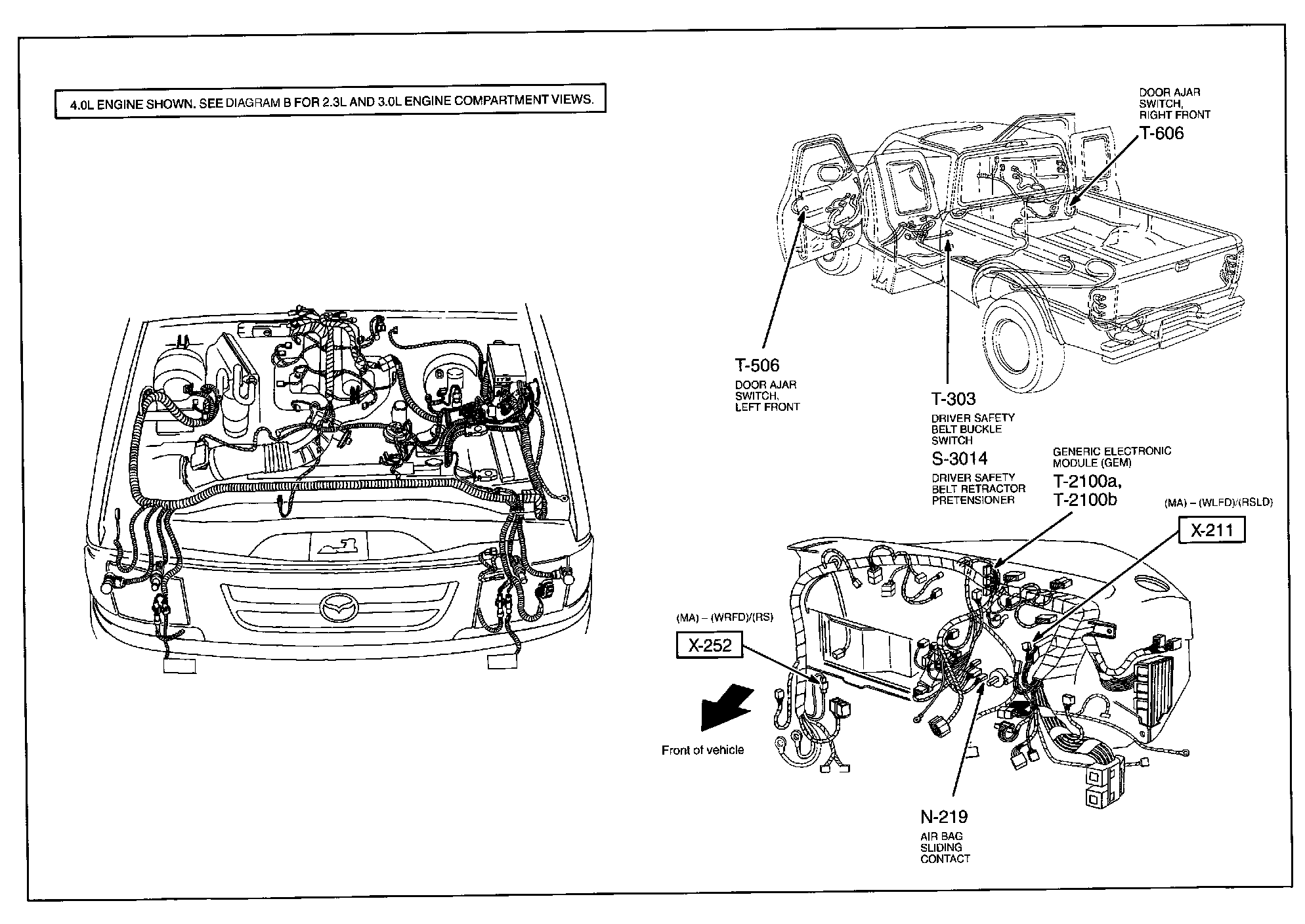

Routing View T-2b:
Diagrams: Other diagrams referred to by name within these diagrams can be found at Diagrams by Diagram Name.
Diagrams By Diagram Name
Diagrams: Other diagrams referred to by name within these diagrams can be found at Diagrams by Diagram Name.
Diagrams By Diagram Name
