Component Testing Procedure

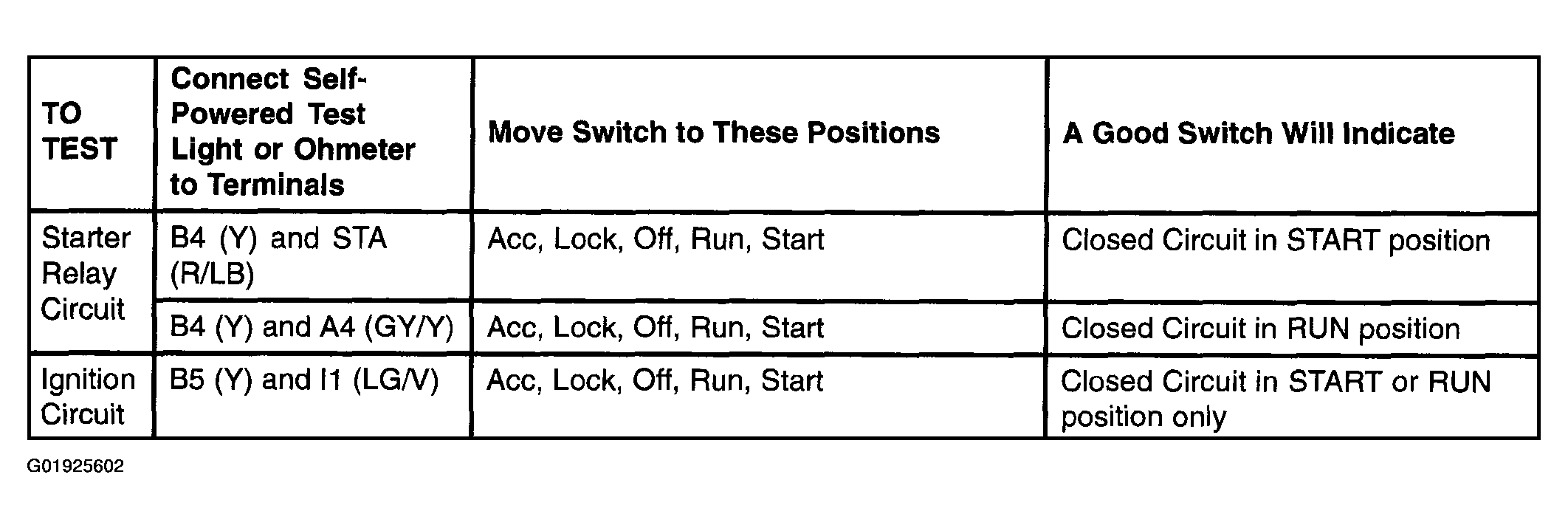

Fig 1: Component Testing Procedure (1 Of 2)
G01925602Courtesy of MAZDA MOTORS CORP.

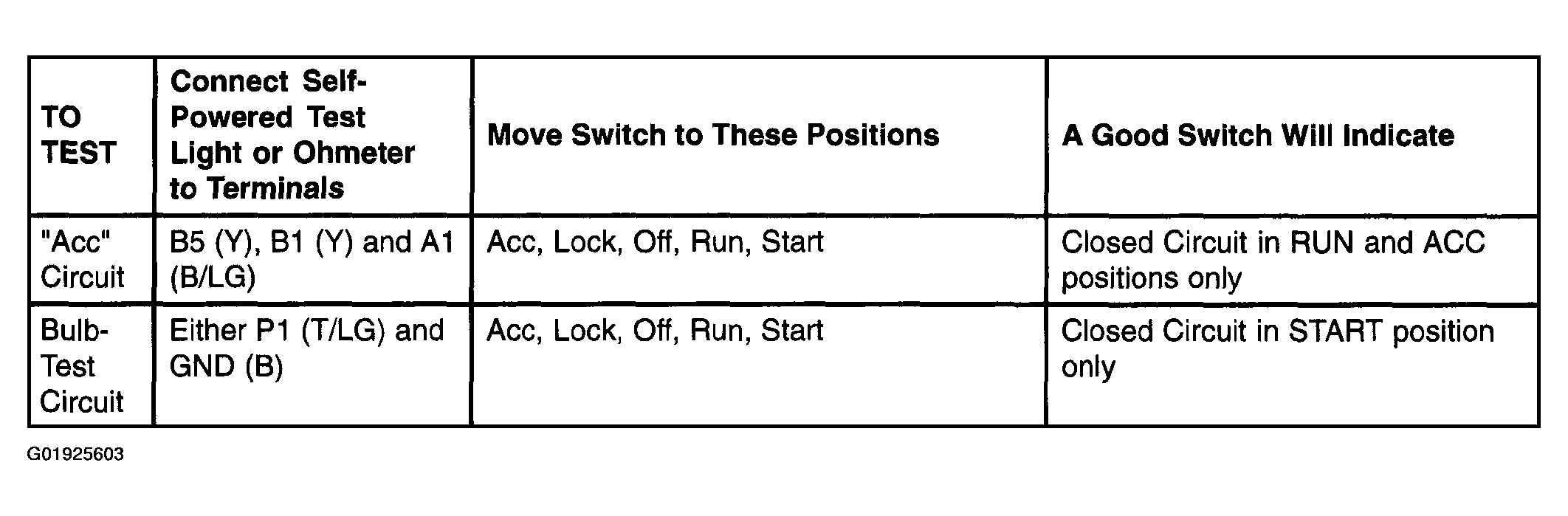

Fig 2: Component Testing Procedure (2 Of 2)
G01925603Courtesy of MAZDA MOTORS CORP.
