Abs Control Module Reprogramming

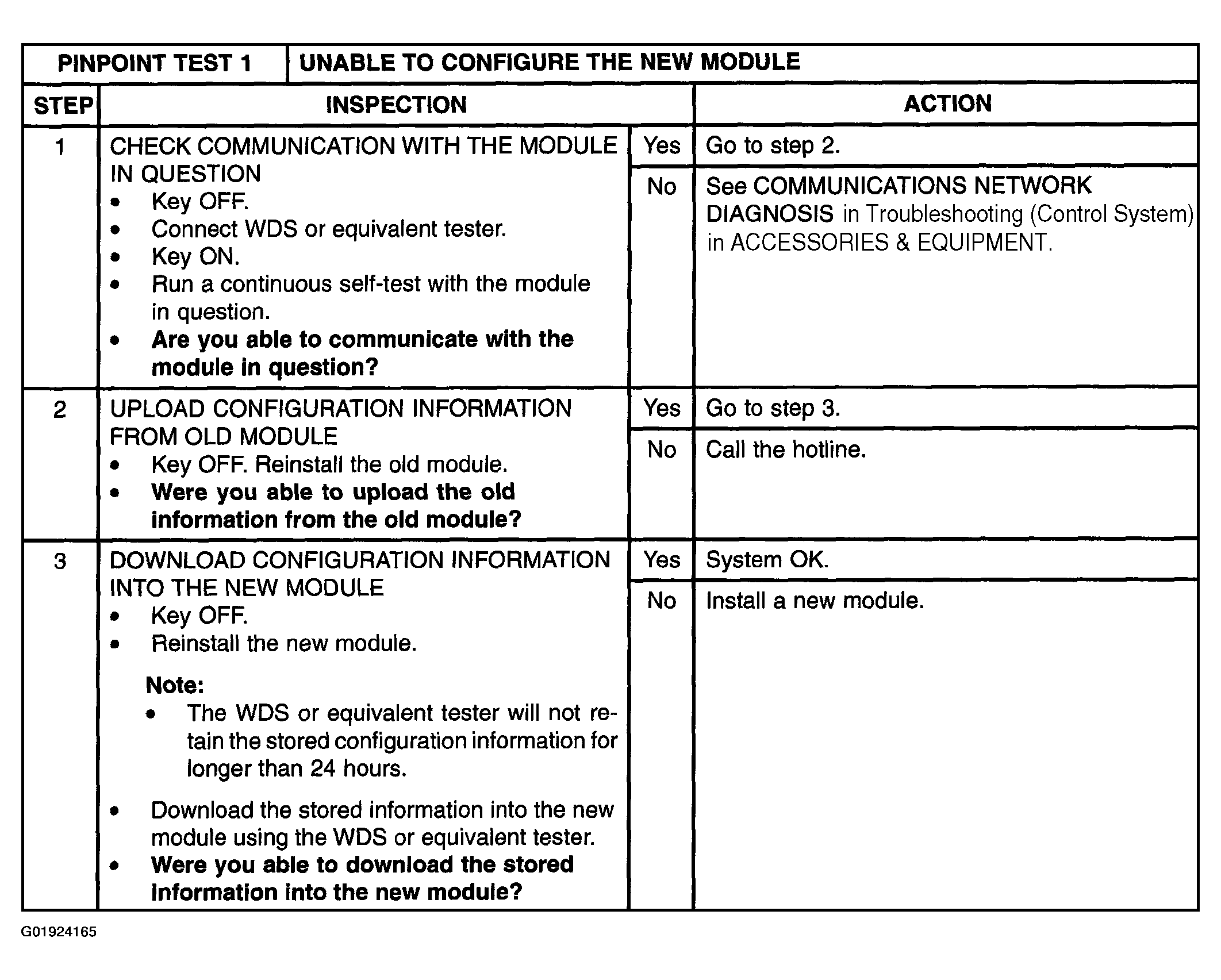

Fig 1: Diagnosis Procedure - ABS Control Module Reprogramming
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
