Power Window Inoperative - Driver Power Window

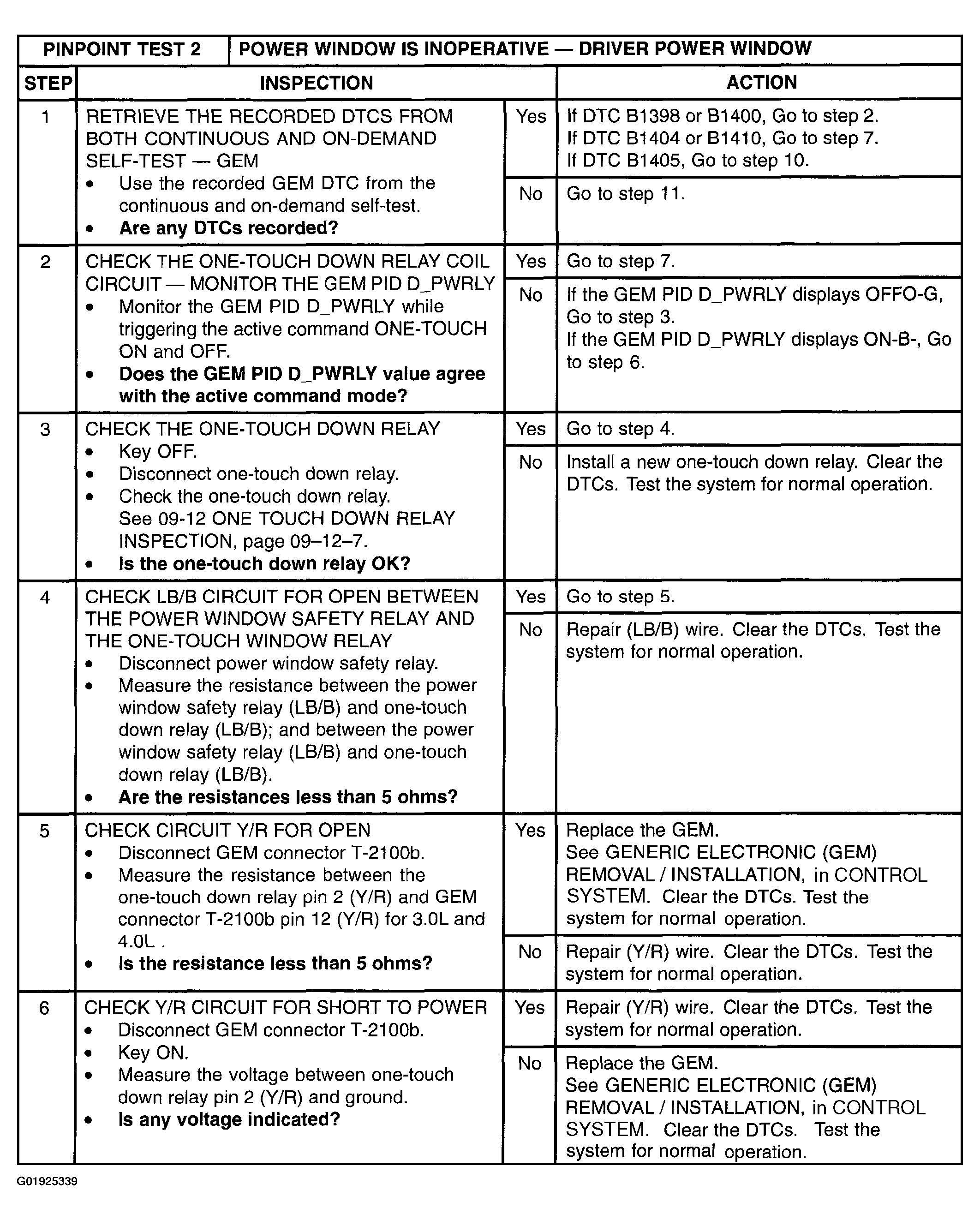

Fig 1: Power Window Inoperative - Driver Power Window (Steps 1-6)

Courtesy of MAZDA MOTORS CORP.

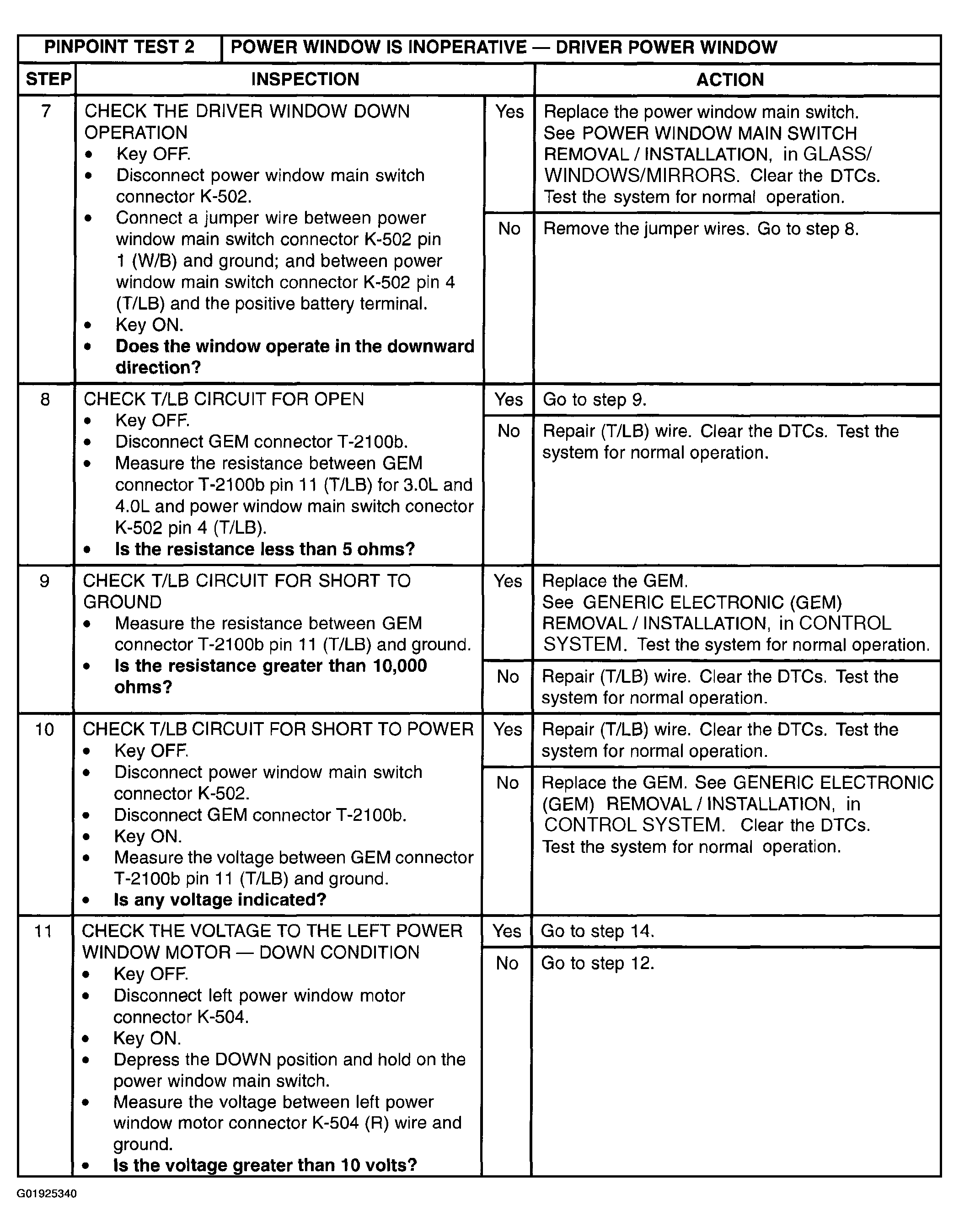

Fig 2: Power Window Inoperative - Driver Power Window (Steps 7-11)

Courtesy of MAZDA MOTORS CORP.

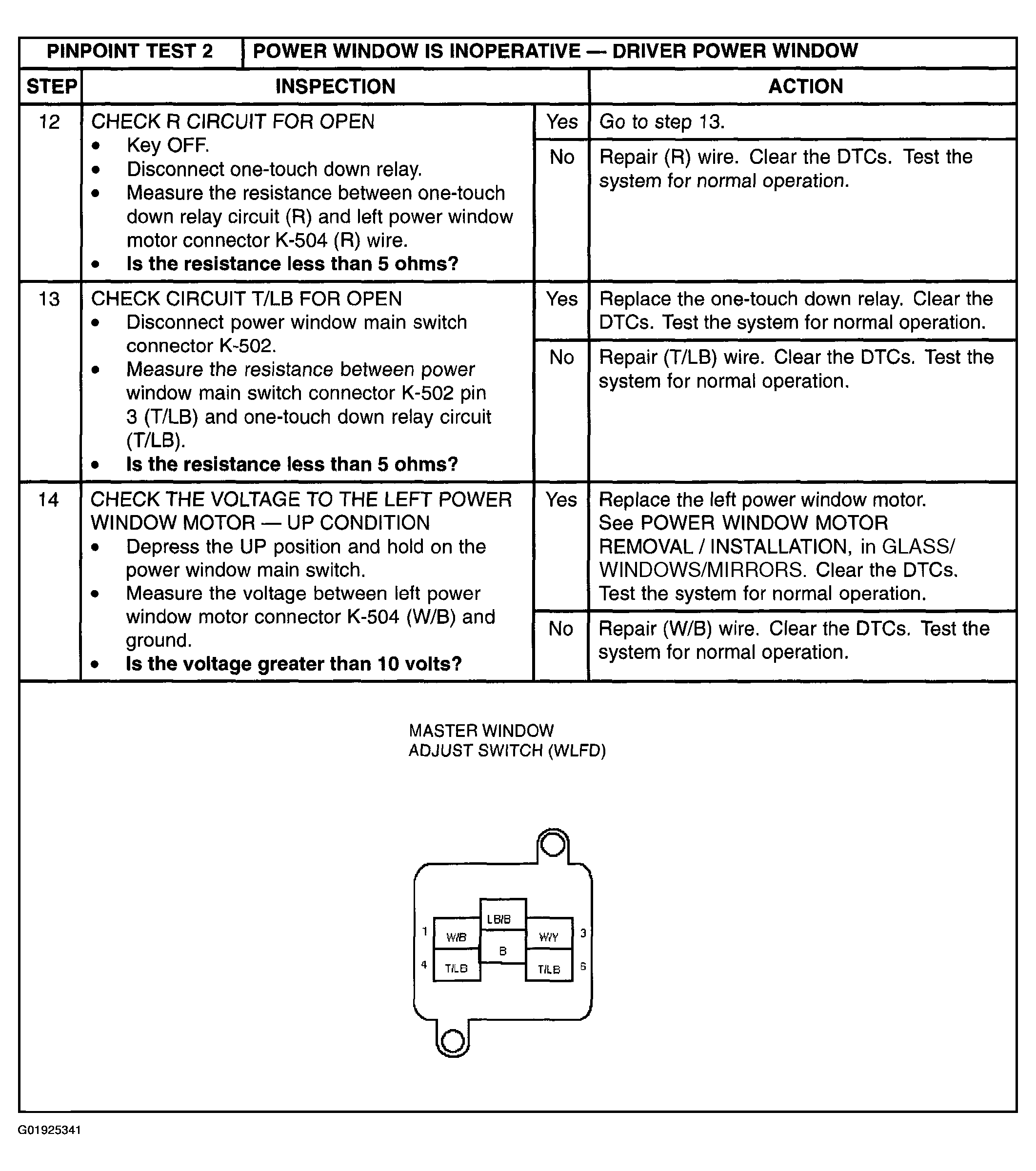

Fig 3: Power Window Inoperative - Driver Power Window (Steps 12-14)

Courtesy of MAZDA MOTORS CORP.

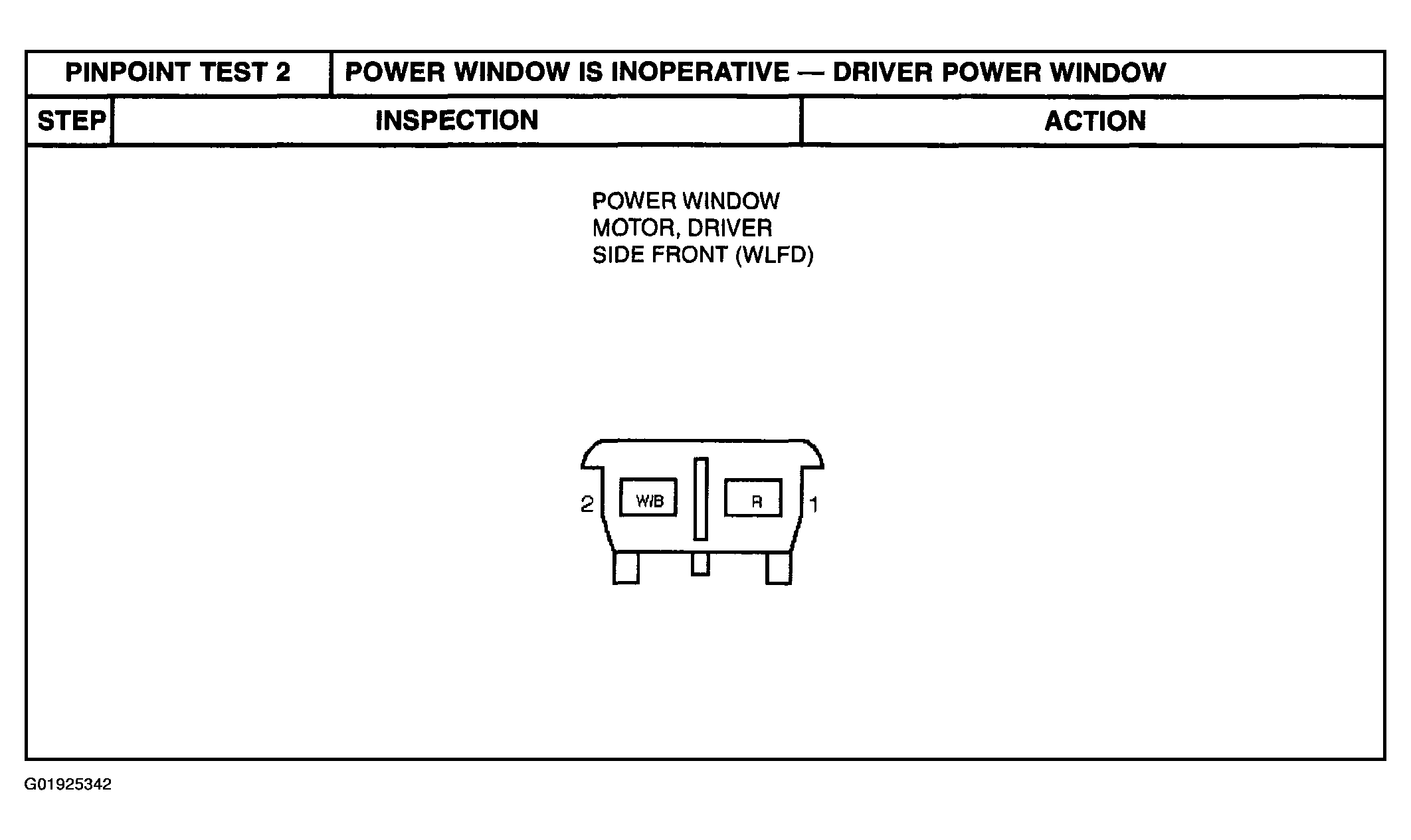

Fig 4: Power Window Motor Connector (Driver Side Front)

Courtesy of MAZDA MOTORS CORP.

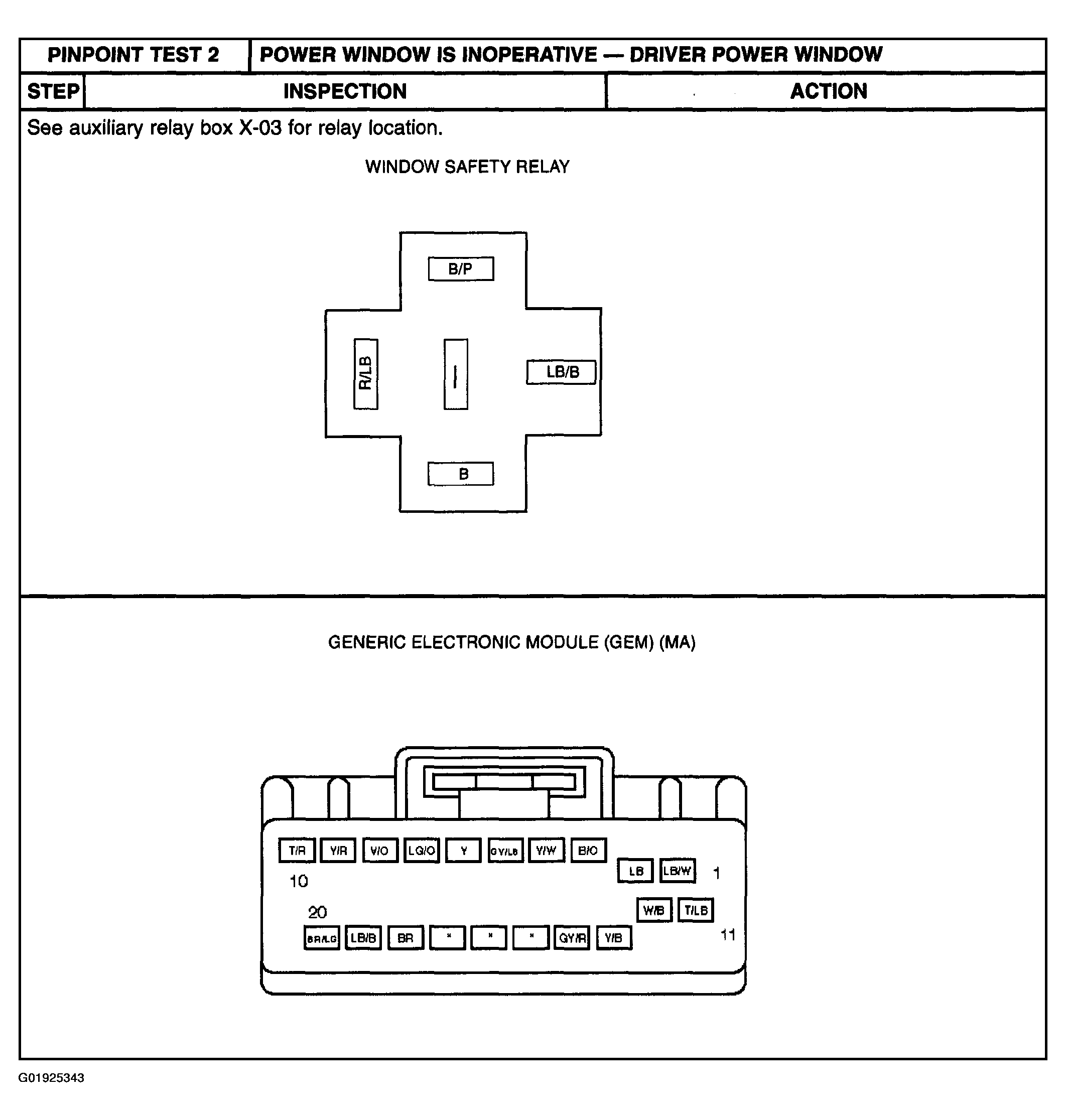

Fig 5: Window Safety Relay Connector & GEM Connector

Courtesy of MAZDA MOTORS CORP.
