Speed Sensor, Front (4X2) Removal/Installation
- Raise and support the vehicle; see JACKING .
- Disconnect the speed sensor electrical connector and unclip the front speed sensor wire from the vehicle frame.

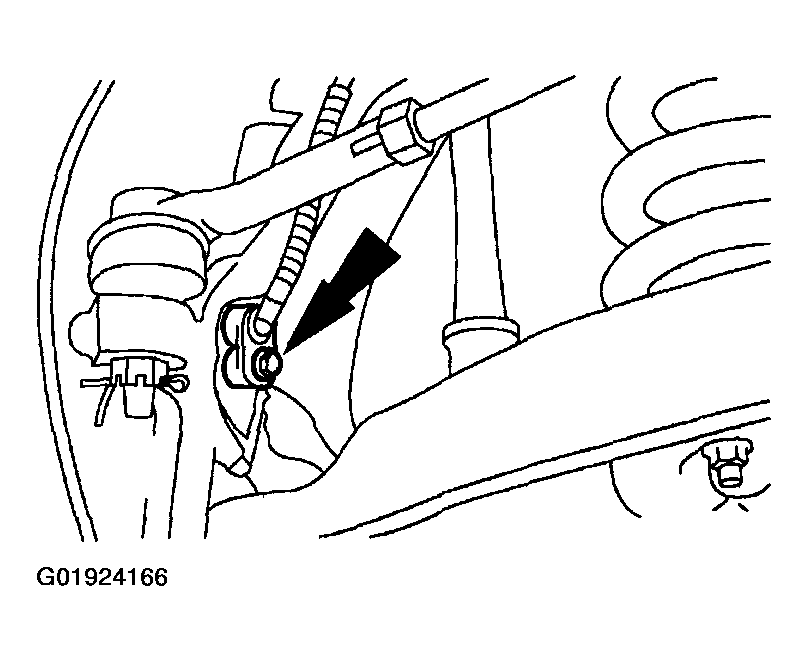

- Remove the bolt and speed sensor.
- Install in reverse order of removal.
Tightening torque
11-13 N.m {1.1-1.3 kgf.m, 9-10 ft.lbf}
