Speed Sensor, Front (4X4) Removal/Installation
- Remove disc plate shield; see FRONT DISC BRAKE .
- Disconnect the front speed sensor connector and unclip the front speed sensor wire from the vehicle frame.

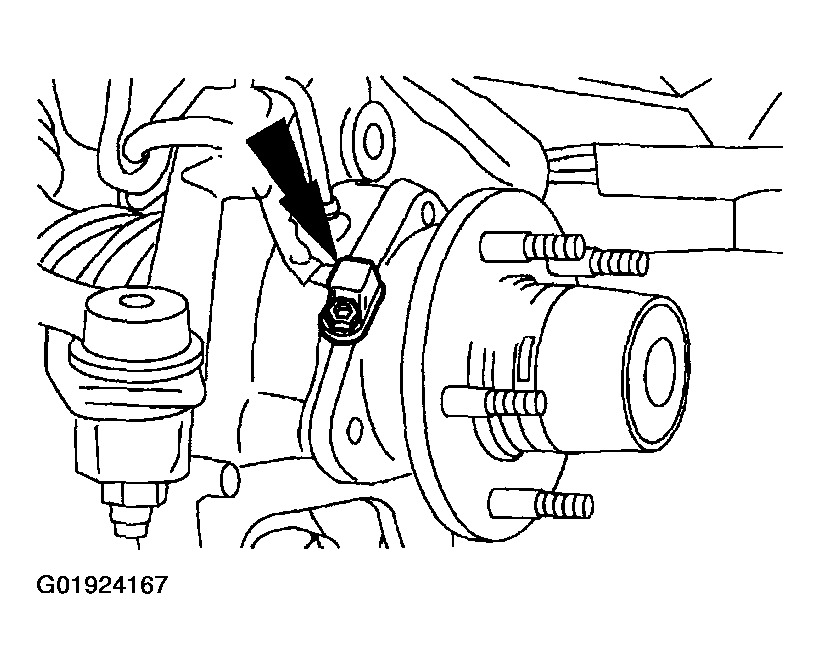

- Remove the bolt (1) and front speed sensor (2).
- Install in reverse order of removal.
Tightening torque
7-9 N.m {71-92 kgf.cm, 63-79 in.lbf}
