Pre-inspection preparation

WARNING: This page is about a different car, the 2005 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

Install the SST (49 D043 002) in the orientation shown in the figure, (with DSC)

Fig 1: Identifying SST (49 D043 002)
Courtesy of MAZDA MOTORS CORP.
NOTE:
- Install the SST (49 D043 002) to the master cylinder using a commercially available flare nut wrench.
  - Flare nut across flat: 12 mm {0.47 in}

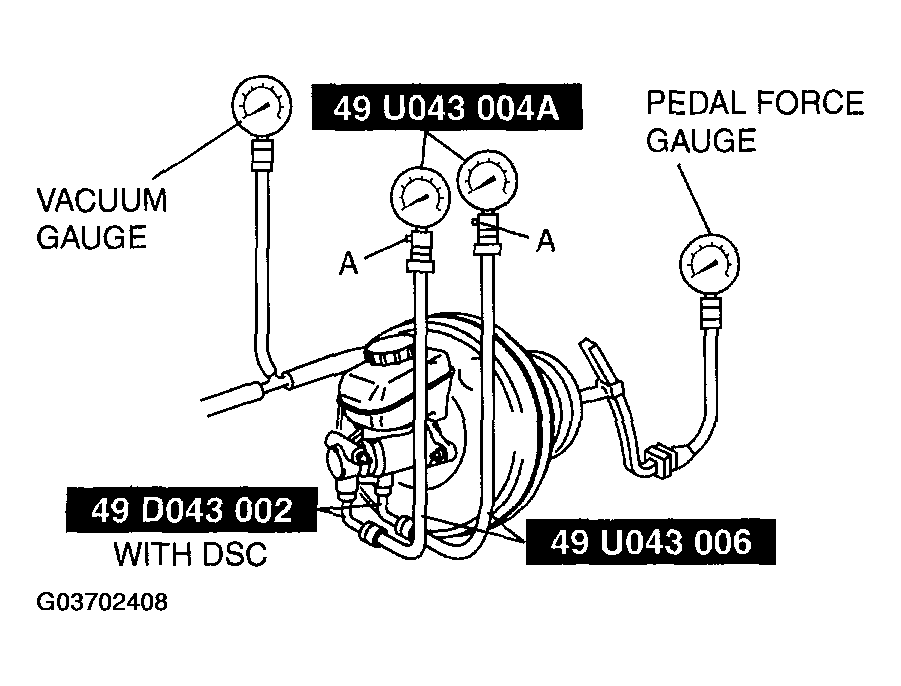

Connect the SSTs, a vacuum gauge and a pedal force gauge to the master cylinder and bleed the air from the SSTs and the brake line. (Bleed the air from the SSTs through air bleeding valve A.)

Fig 2: Bleeding Air From SST And Brake Line
Courtesy of MAZDA MOTORS CORP.
