Rear Brake (Disc) Removal/Installation: Notes

WARNING: This page is about a different car, the 2005 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove in the order indicated in the table.
  2. Install in the reverse order of removal.
  3. After installation, depress the brake pedal a few times, and inspect the following.
    • The disc pad projection is securely installed to the piston groove
    • Parking brake lever stroke
    • Brake drag

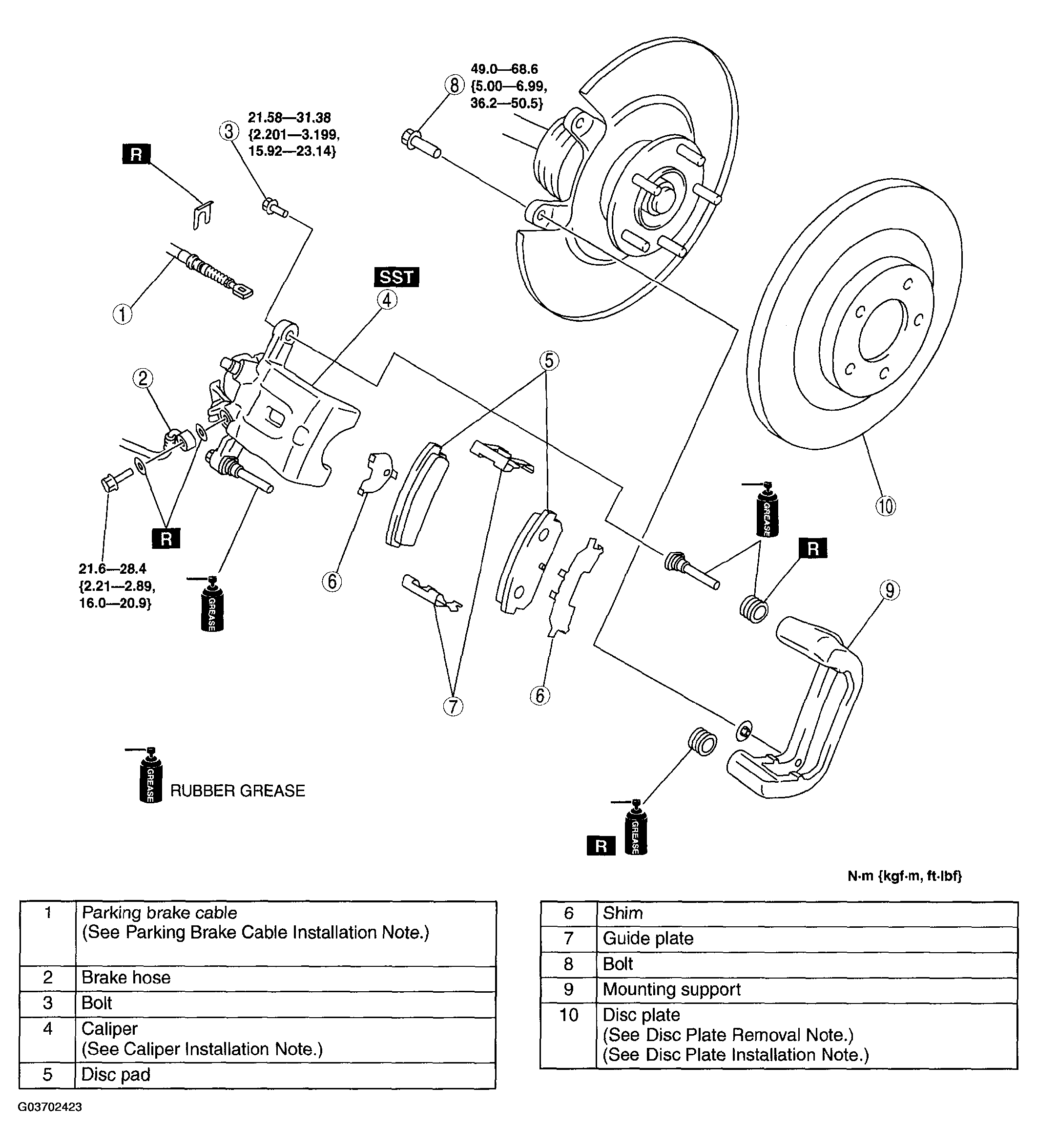

    Fig 1: Rear Brake (Disc) Removing Sequence With Torque Specifications
    G03702423Courtesy of MAZDA MOTORS CORP.
