Easy Closure Control Module Inspection

Remove the easy closure control module.
Inspect for continuity between the latch position, switch terminals using an ohmmeter.
- If not as specified, replace the easy closure control module.

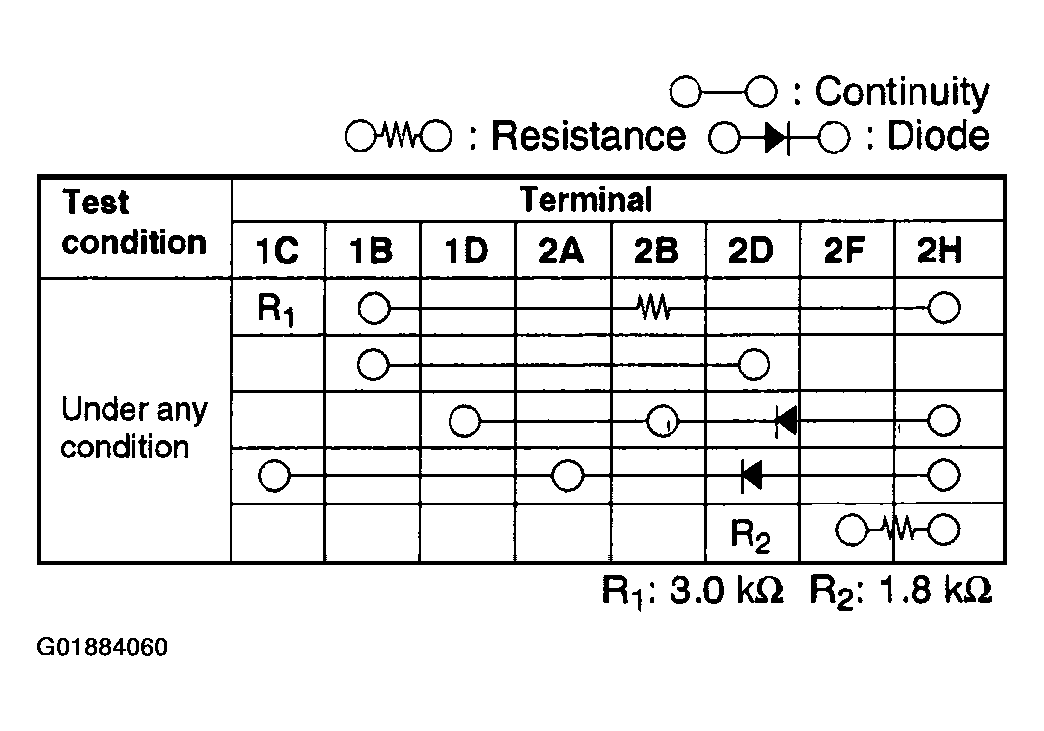

Fig 1: Easy Closure Control Module Operational Table
Courtesy of MAZDA MOTORS CORP.

Fig 2: Identifying Easy Closure Control Module Circuit & Connector Terminals
Courtesy of MAZDA MOTORS CORP.
