Cruise Control Switch Removal/Installation

  1. Disconnect the negative battery cable.
  2. Remove the driver-side air bag module. (See DRIVER-SIDE AIR BAG MODULE .)
  3. Remove the cruise control switch bracket.
  4. Remove in the order indicated in the illustration.

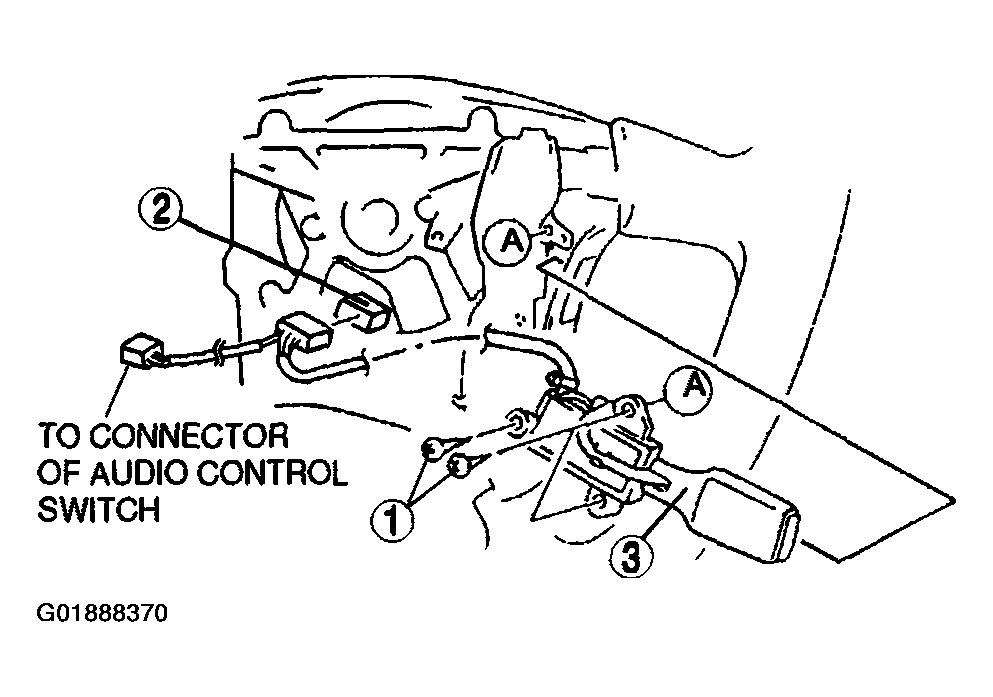

    Fig 1: Cruise Control Switch Bracket Removal Sequence
    G01888370Courtesy of MAZDA MOTORS CORP.
    Fig 2: Cruise Control Switch Bracket Removal Sequence Legend
    G01888369Courtesy of MAZDA MOTORS CORP.
  5. Install in the reverse order of removal.
