Audio Control Switch Removal/Installation

Disconnect the negative battery cable.
Remove the driver-side air bag module.
Remove in the order indicated in the figures.

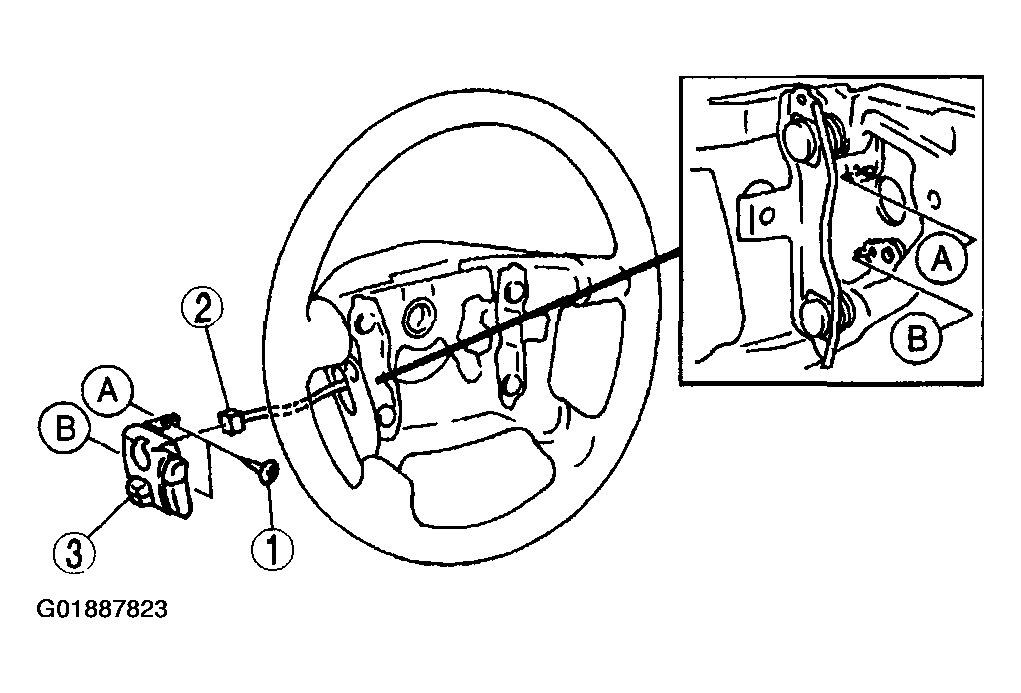

Fig 1: Removing Audio Control Switch
Courtesy of MAZDA MOTORS CORP.

Fig 2: Audio Control Switch Sequence
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
