Cargo Compartment Light Removal/Installation: Notes

  1. Disconnect the negative battery cable.
  2. Remove in the order indicated in the figure below.
  3. Install in the reverse order of removal.
    Fig 1: Cargo Compartment Light Removal Order Table
    G01887703Courtesy of MAZDA MOTORS CORP.

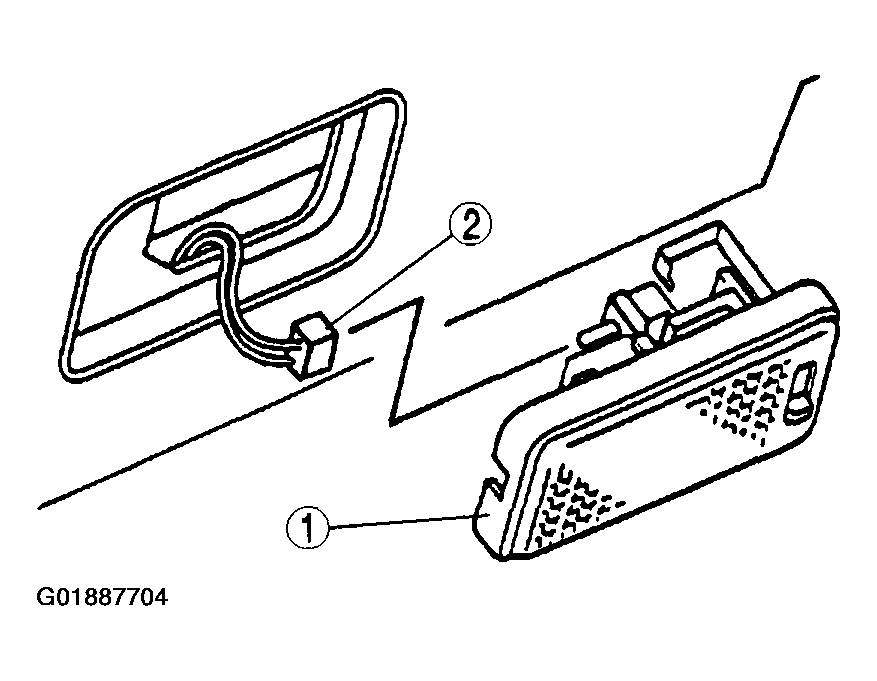

    Fig 2: Removal Order Of Cargo Compartment Light
    G01887704Courtesy of MAZDA MOTORS CORP.
