Combination Switch Removal/Installation

  1. Disconnect the negative battery cable.
  2. Remove the driver-side air bag module. (See DRIVER-SIDE AIR BAG MODULE .)
  3. Remove the steering wheel. (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION .)
  4. Remove the column cover. (See COLUMN COVER REMOVAL/INSTALLATION .)
  5. Remove the clock spring. (See CLOCKSPRING .)
  6. Remove in the order indicated in the figure below.
  7. Install in the reverse order of removal.
    Fig 1: Combination Switch Removal Order Table
    G01887658Courtesy of MAZDA MOTORS CORP.

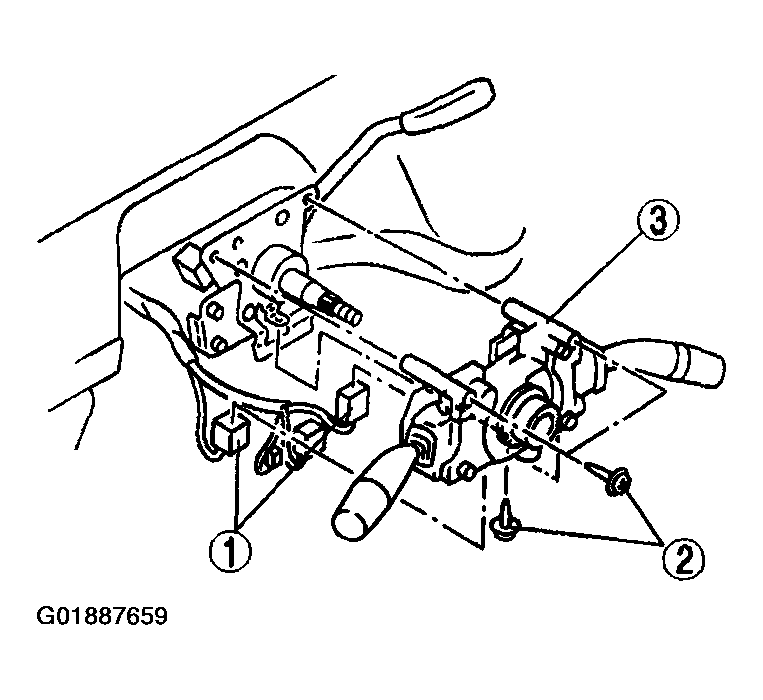

    Fig 2: Removal Order Of Combination Switch
    G01887659Courtesy of MAZDA MOTORS CORP.
