Front Combination Light Removal/Installation: Notes

  1. Disconnect the negative battery cable.
  2. Remove in the order indicated in the figure below.
    Fig 1: Front Combination Light Removal Order Table
    G01887638Courtesy of MAZDA MOTORS CORP.

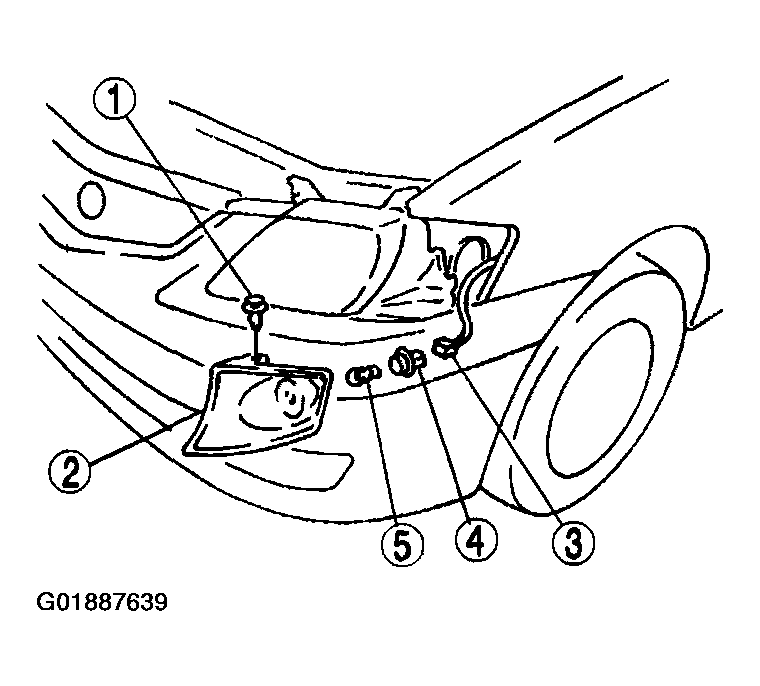

    Fig 2: Removal Order Of Front Combination Light
    G01887639Courtesy of MAZDA MOTORS CORP.
  3. Install in the reverse order of removal.
