Map Light Inspection

Remove the map light. (See MAP LIGHT REMOVAL/INSTALLATION .)
Inspect for continuity between the map light terminals using an ohmmeter.
- If not as specified, replace the map light.

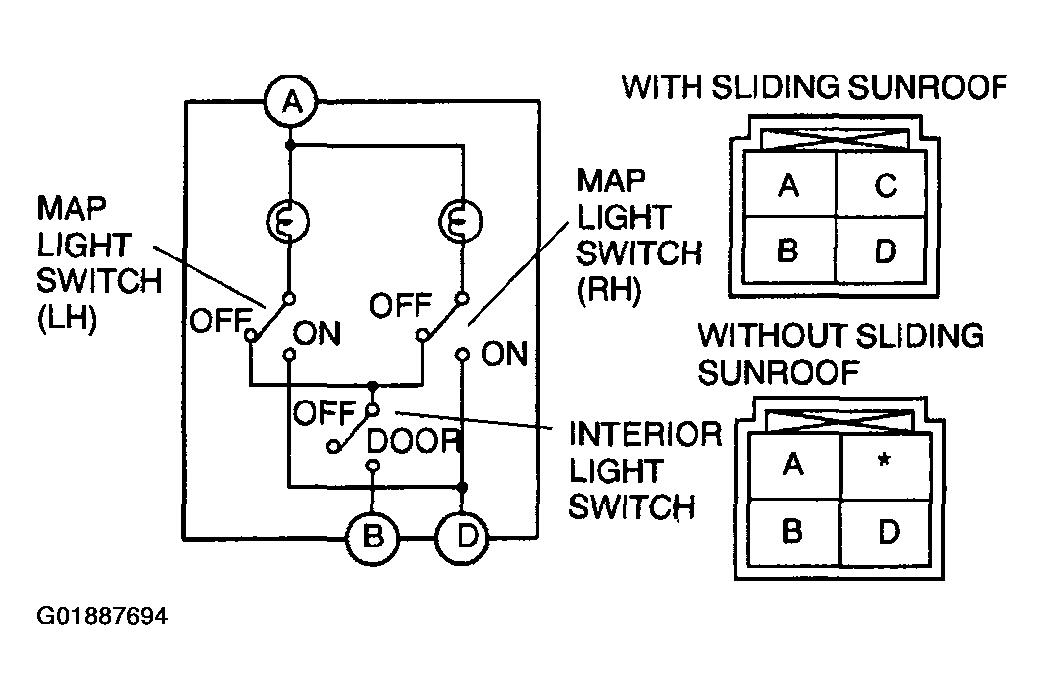

  Fig 1: Inspecting Map Light (1 Of 2)
  Courtesy of MAZDA MOTORS CORP.

  Fig 2: Inspecting Map Light (2 Of 2)
  Courtesy of MAZDA MOTORS CORP.
