With Sliding Sunroof: Notes

  1. Disconnect the negative battery cable.
  2. Remove in the order indicated in the figure below.
    Fig 1: MAP Light Removal Order Table
    G01887684Courtesy of MAZDA MOTORS CORP.

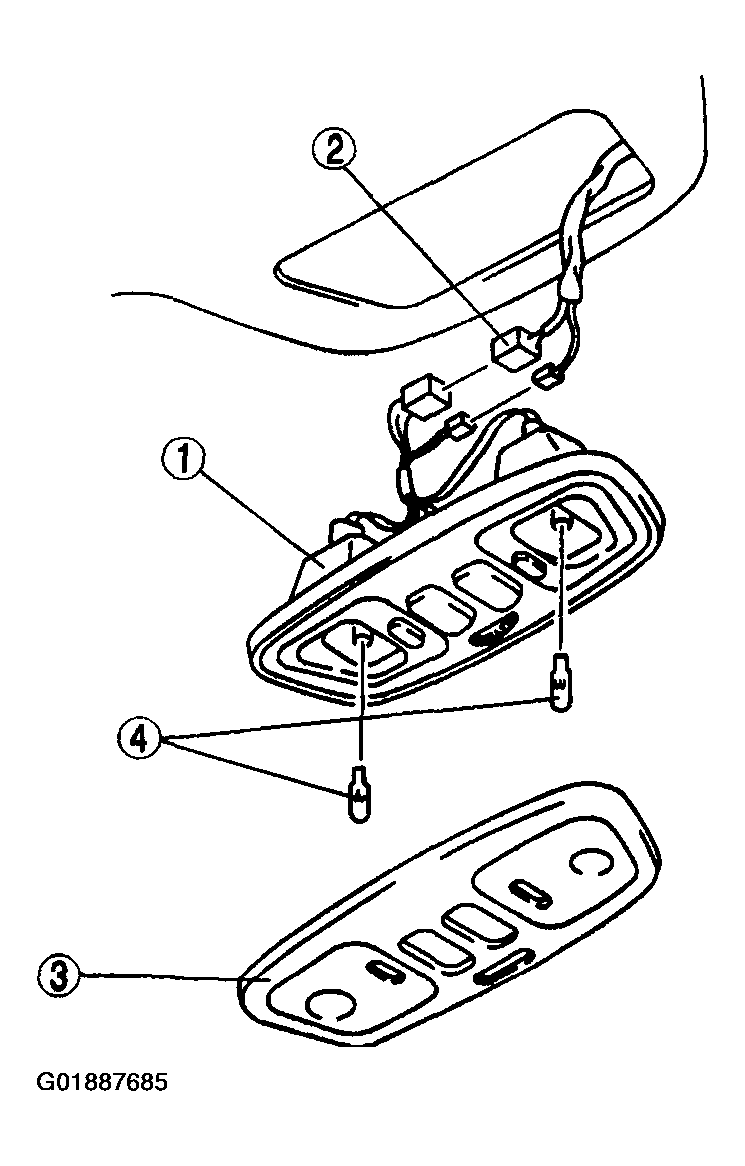

    Fig 2: Removal Order Of MAP Light
    G01887685Courtesy of MAZDA MOTORS CORP.
  3. Install in the reverse order of removal.
