Rear Combination Light Removal/Installation: Notes

Disconnect the negative battery cable.
Remove the rear side trim. (Right side only) (See REAR SIDE TRIM REMOVAL/INSTALLATION .)
Remove in the order indicated in the figure below.
Install in the reverse order of removal.

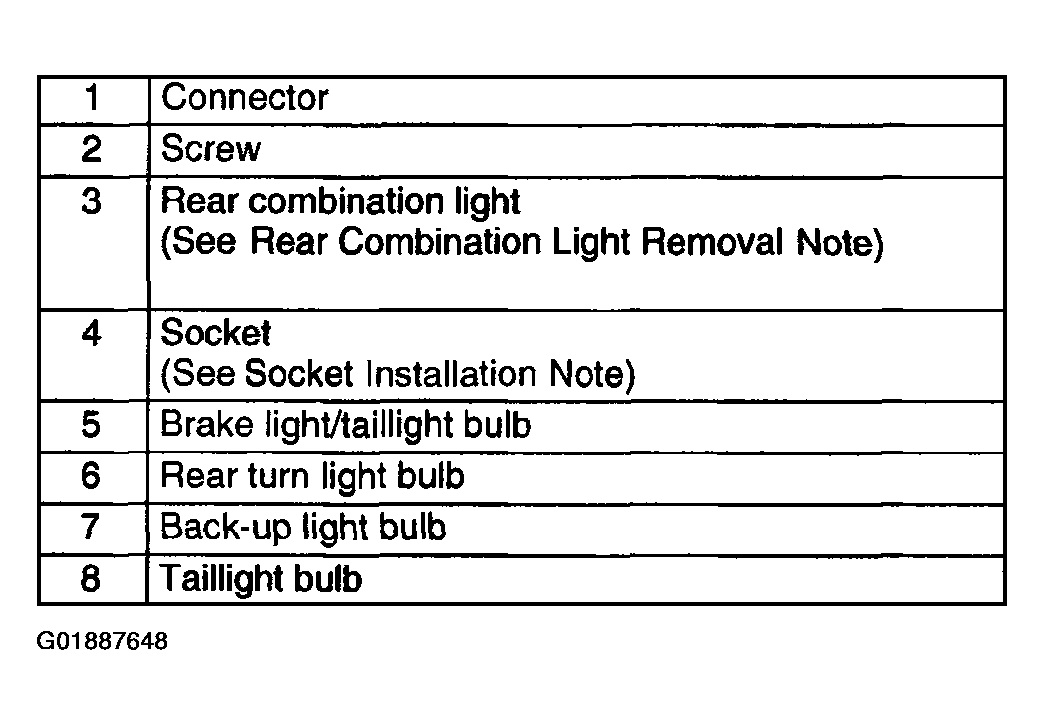

Fig 1: Rear Combination Light Removal Order Table
Courtesy of MAZDA MOTORS CORP.

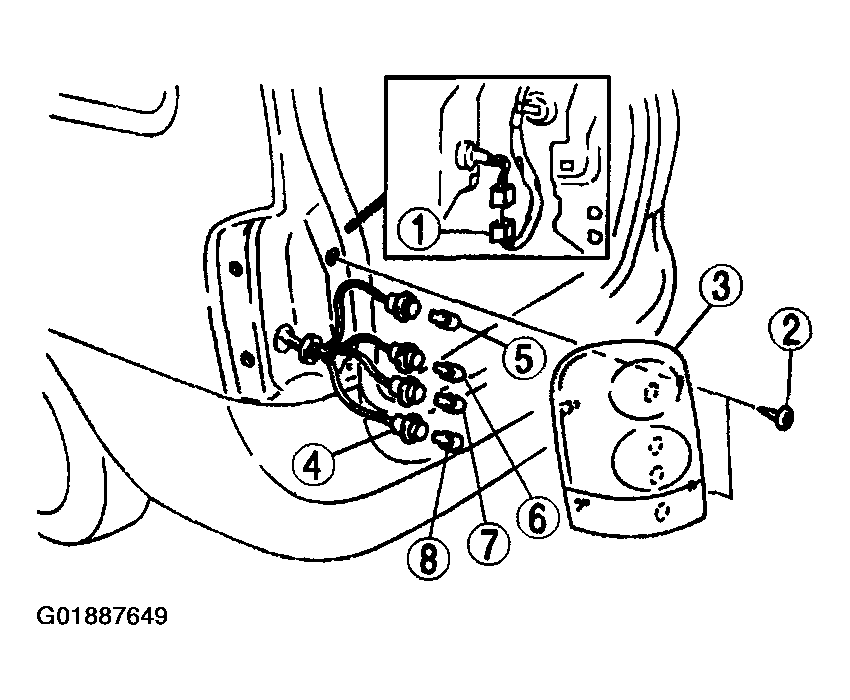

Fig 2: Removal Order Of Rear Combination Light
Courtesy of MAZDA MOTORS CORP.
