Socket Installation Note
Hook the harness as shown in the figure.

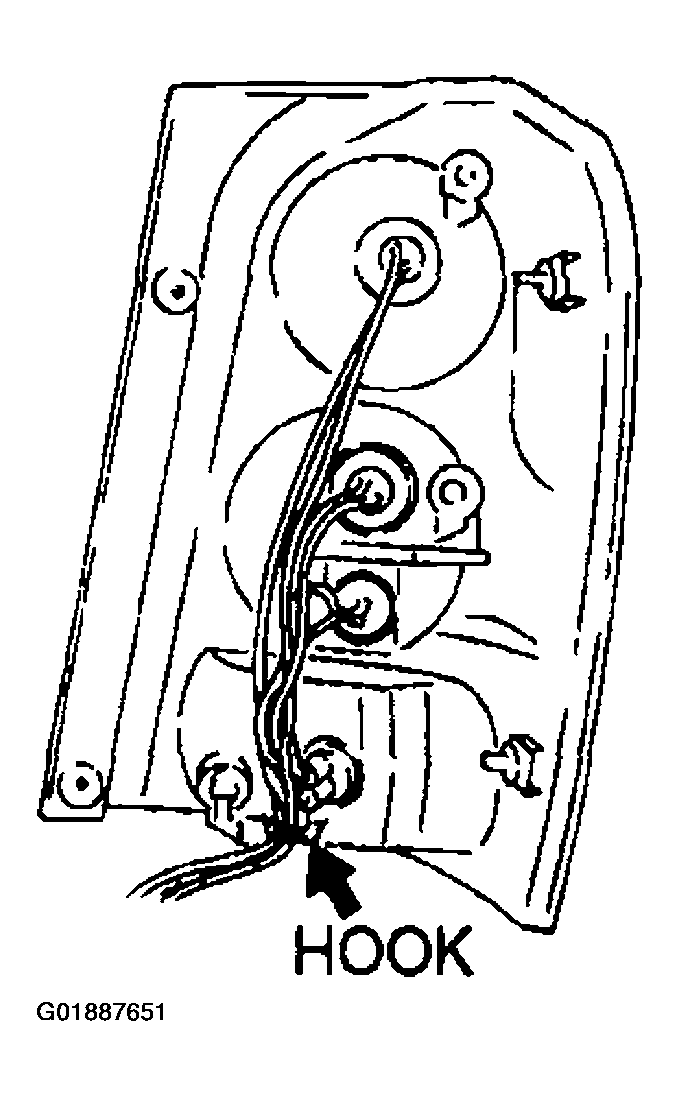

Fig 1: Locating Hook
Courtesy of MAZDA MOTORS CORP.
