Keyless Entry System Pre-Inspection

  1. Perform the following pre-inspection before troubleshooting.

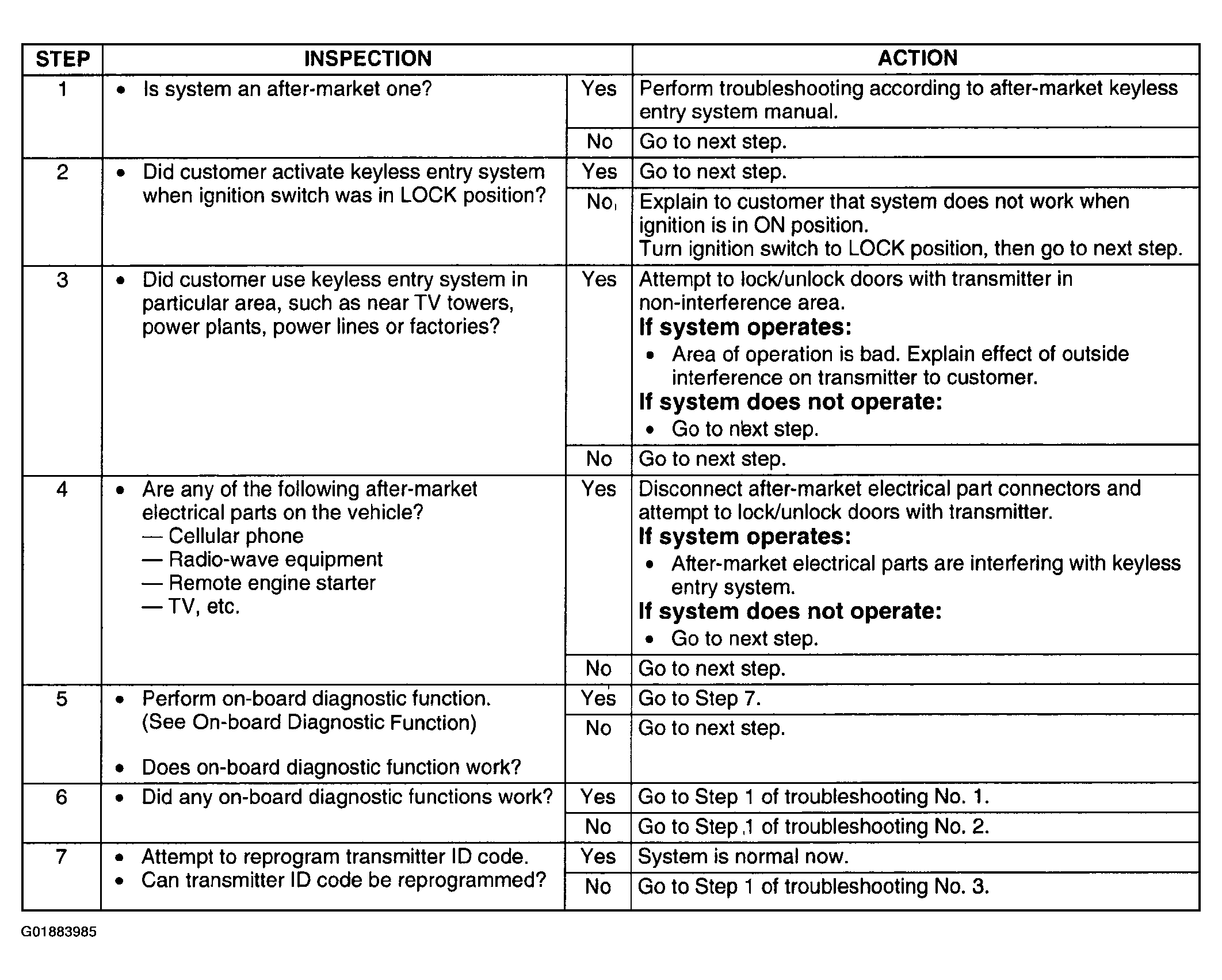

    Fig 1: Keyless Entry System Pre-Inspection Chart
    G01883985Courtesy of MAZDA MOTORS CORP.
