Oil Pump Installation Note

  1. Tighten the oil pump bolts in the order shown.

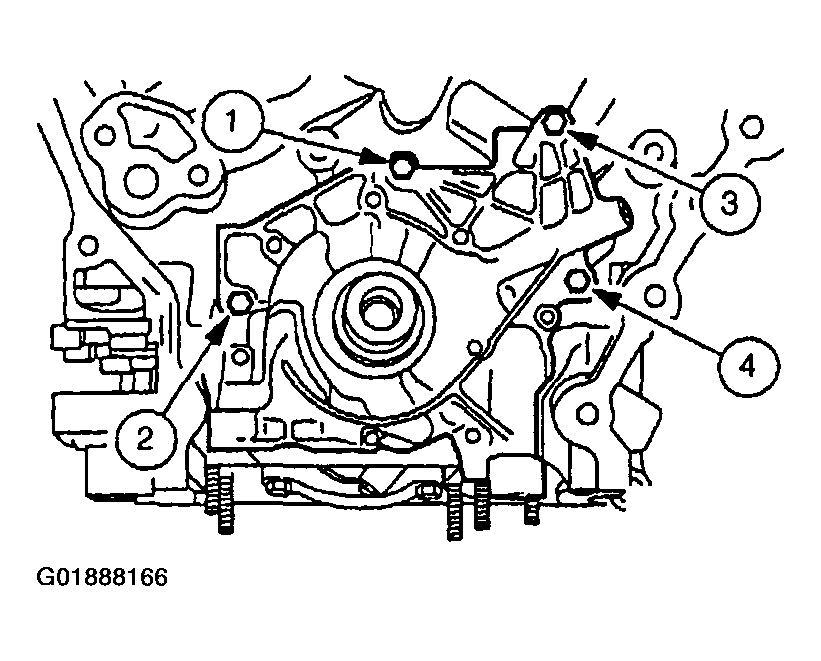

    Fig 1: Oil Pump Bolts Tightening Sequence
    G01888166Courtesy of MAZDA MOTORS CORP.
