Console Removal/Installation

WARNING: This page is about a different car, the 2004 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable.
Remove the lower panel.
Remove the glove compartment. (See GLOVE COMPARTMENT REMOVAL/INSTALLATION .)
Remove the console lower cover.
Remove the screws.
Pull the console toward you, then disengage clips A, clips B and pins C from the dashboard.
Disconnect the connector, and remove the console.

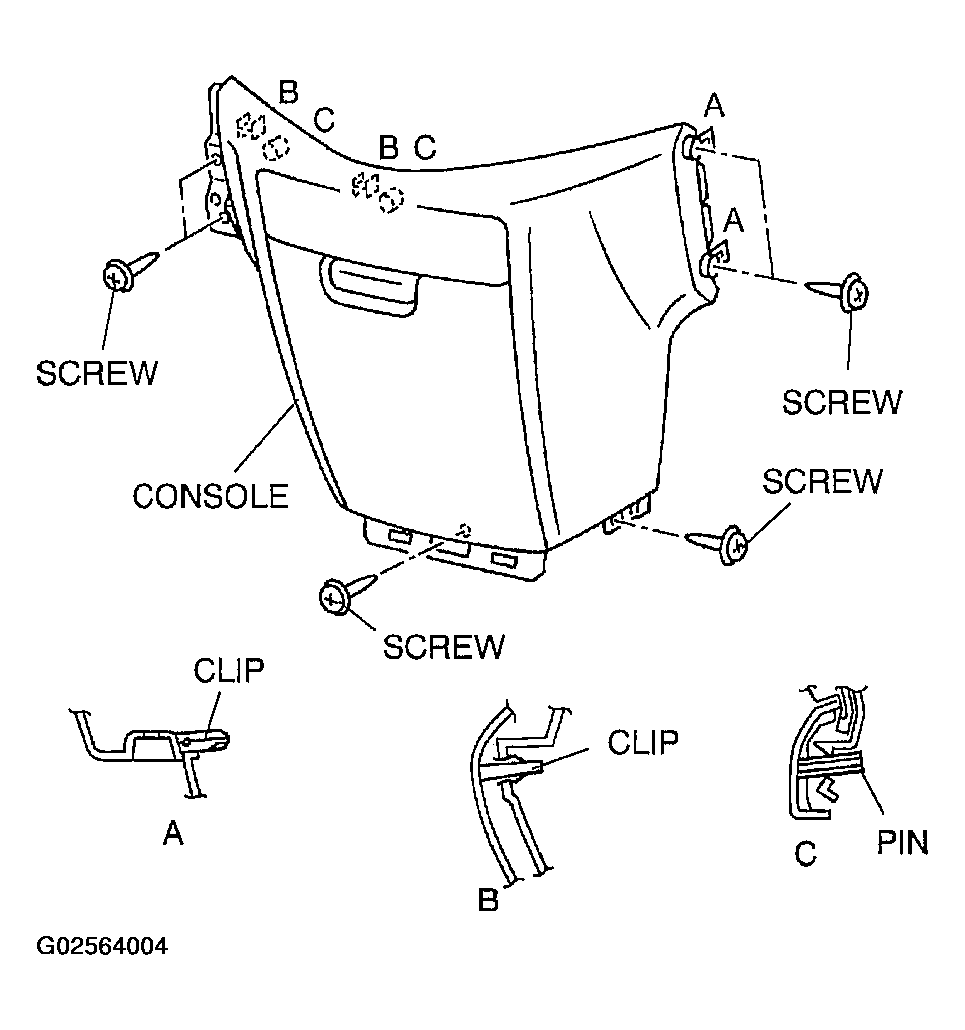

Fig 1: Removing/Installing Console
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
