A65M-R manual transaxle models
WARNING: This page is about a different car, the 2003 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

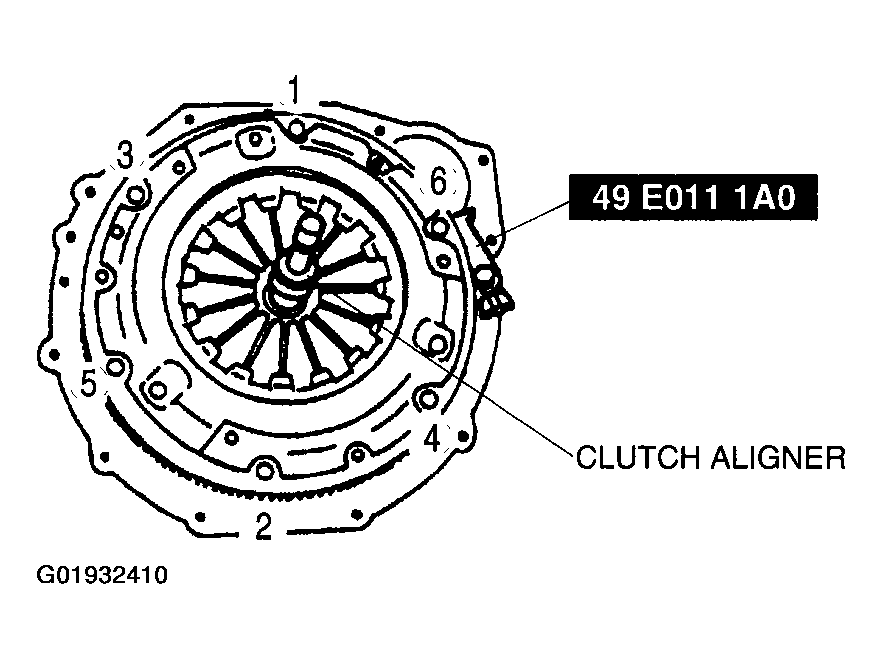

- Install the clutch aligner and the SST.
- Tighten the bolts evenly and gradually in a crisscross pattern.
- Tightening torque 25-33 N.m {2.6-3.3 kgf.m, 19-24 ft.lbf}
Courtesy of MAZDA MOTORS CORP.
