Clutch Unit Removal/Installation: Notes

WARNING: This page is about a different car, the 2003 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Remove in the order indicated in Fig 1 or Fig 2 .

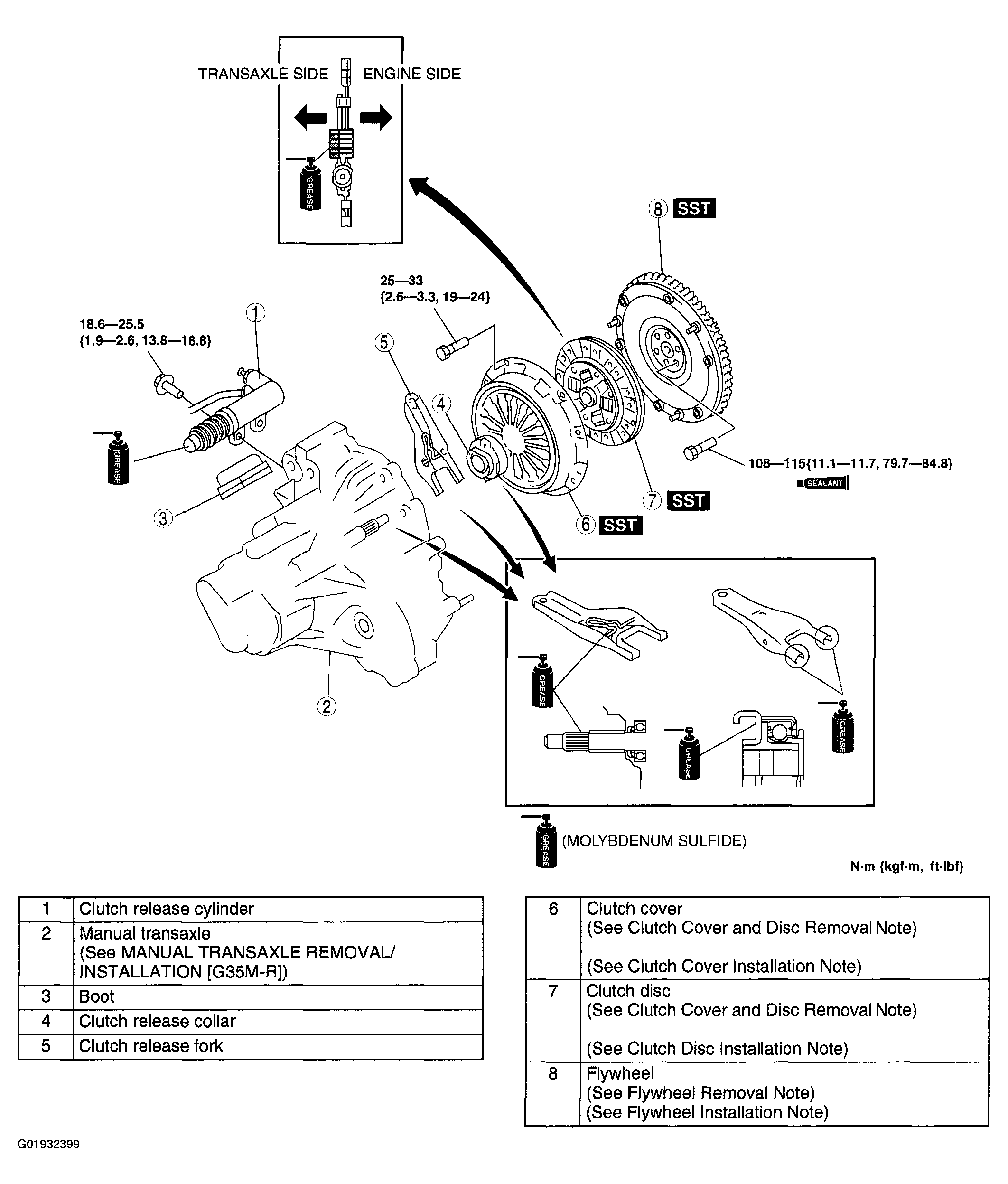

Fig 1: Removing/Installing Clutch Unit (G35M-R)
Courtesy of MAZDA MOTORS CORP.

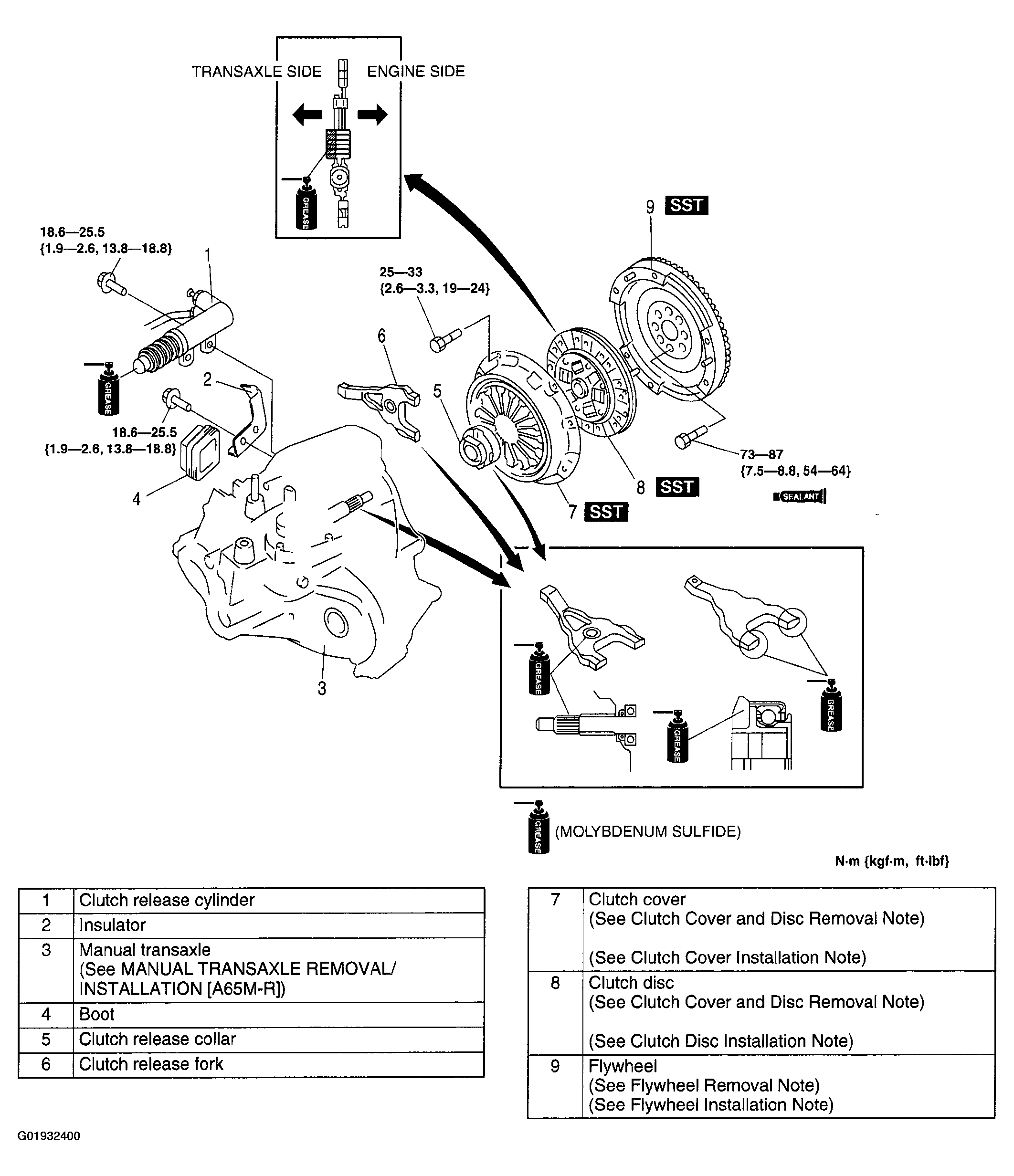

Fig 2: Removing/Installing Clutch Unit (A65M-R)
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order removal.
