Bolt Removal Note

WARNING: This page is about a different car, the 2003 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Attach protective tape to the bracket installed to the dashboard.
    CAUTION:
    • Removing the bolt without attaching protective tape to the bracket may cause injury to your hand. Always attach protective tape to the bracket when removing the bolt.

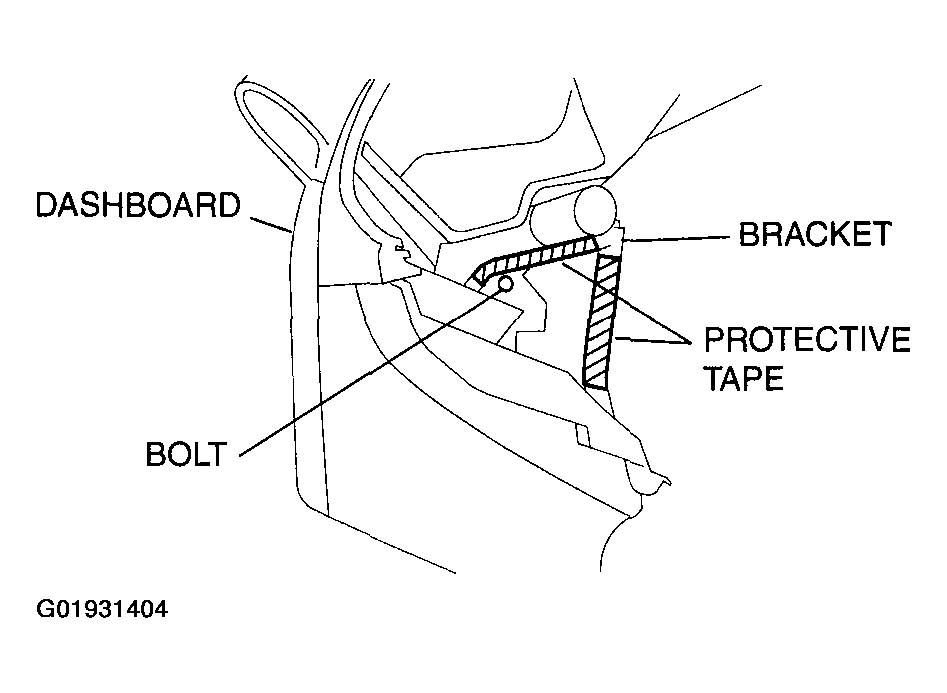

      Fig 1: Attaching Protective Tape To Bracket
      G01931404Courtesy of MAZDA MOTORS CORP.
  2. Remove the Bolt.
