Center Panel Module Removal/Installation: Notes

WARNING: This page is about a different car, the 2003 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable.
Remove the glove compartment.
Remove the rear console.
Remove in the order indicated.

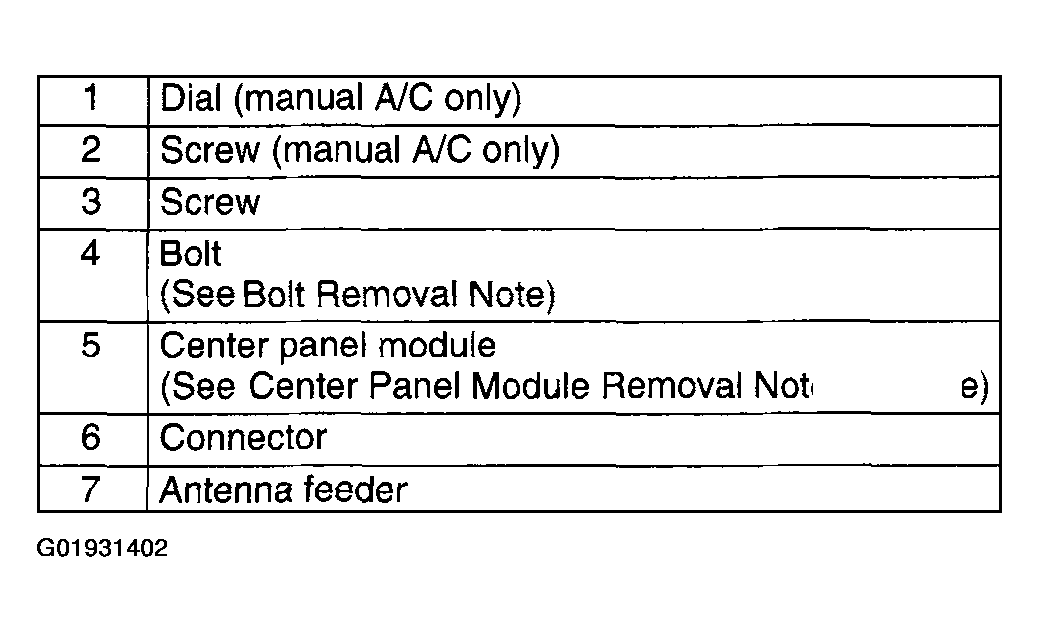

Fig 1: Identifying Center Panel Module Components
Courtesy of MAZDA MOTORS CORP.

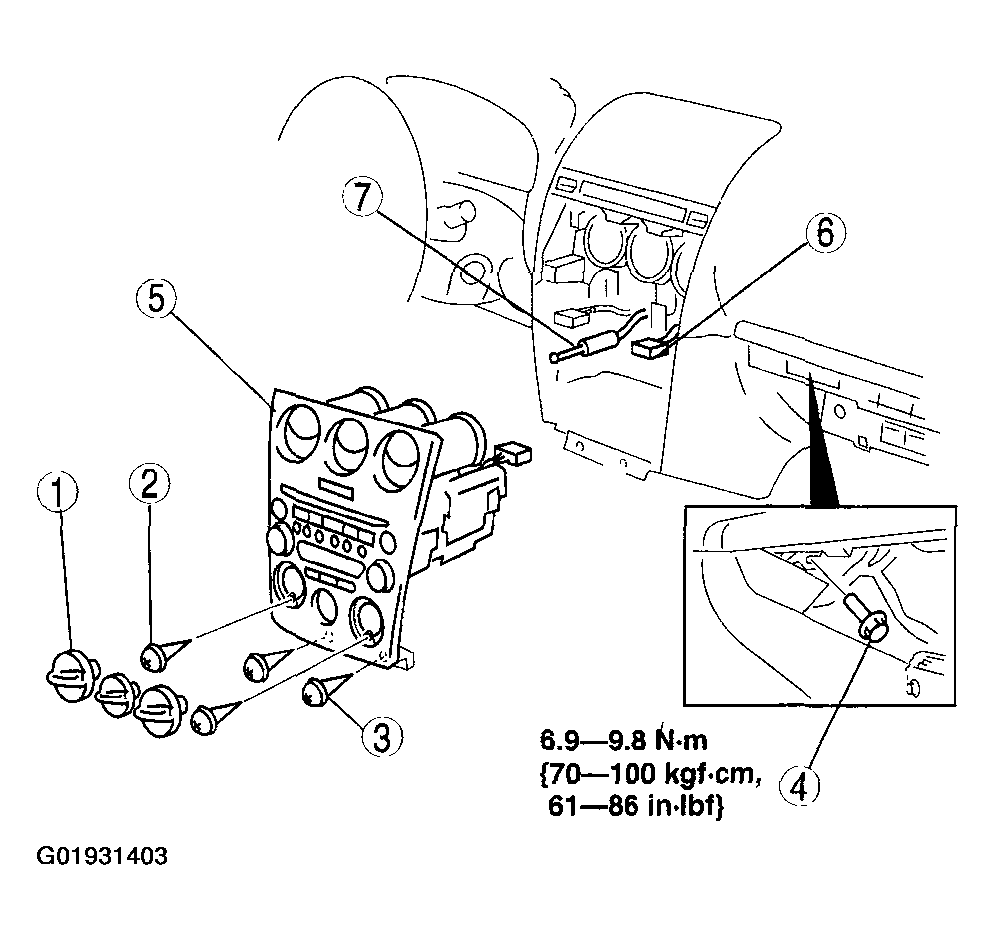

Fig 2: Center Panel Module Removal Sequence
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
CAUTION:
- Make certain that the wiring harness and antenna feeder are not caught between the unit and dashboard. If the harness or the antenna feeder is caught between the unit and dashboard, it may cause trouble or malfunctions.
